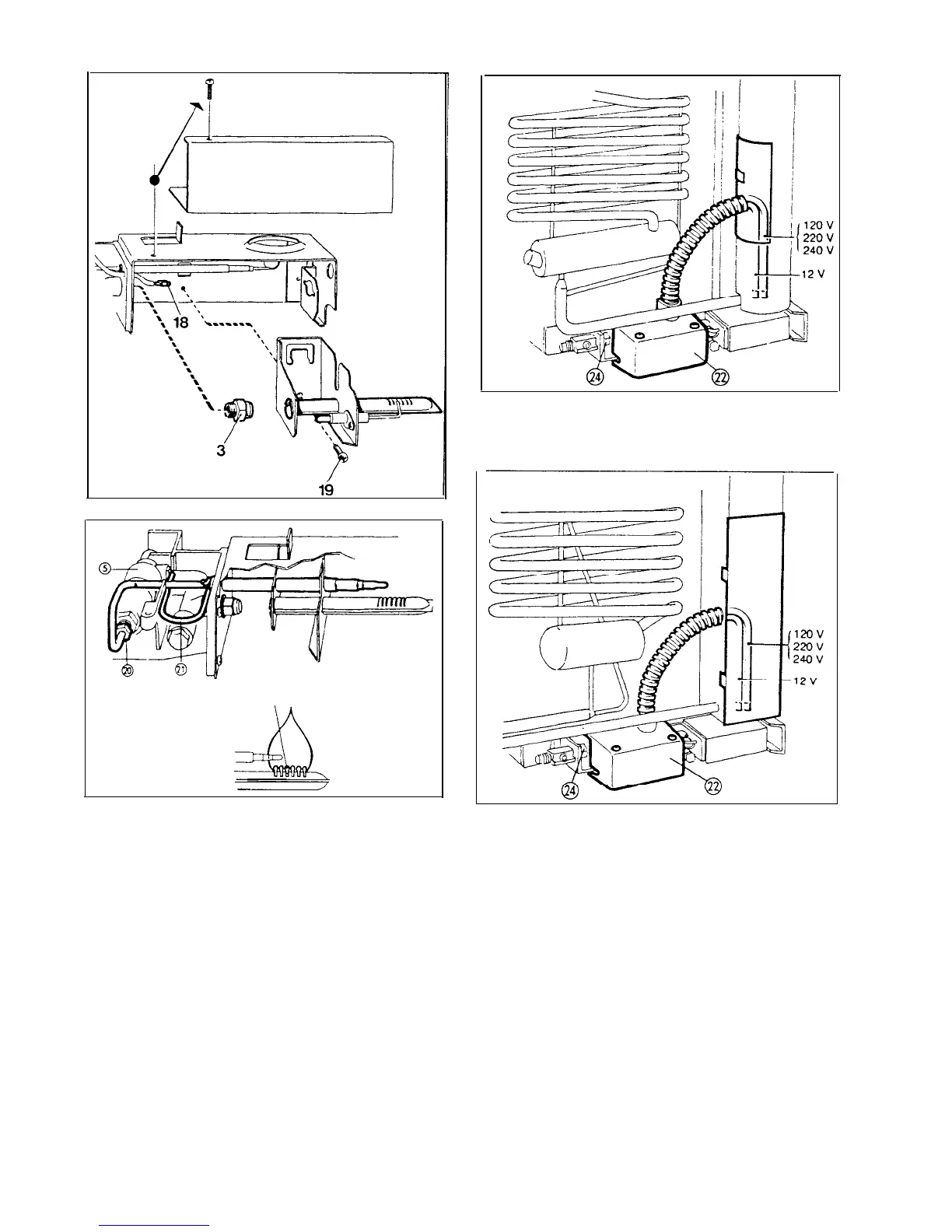

Fig. 2
Clear blue
colour
of flame
Fig. 3
-
Gas equipment parts
1.
Burner tube
2.
Burner housing
3.
Burner jet
4. Feeler point (thermocouple)
5. Flame failure safety device
6.
Bypass screw
7.
Gas/Electric thermostat
6. Pressure test gage connection
9. Capillary tube for thermostat
10.
Shut-off valve
11. Piezo igniter (lighter)
12.
Firing tip
24.Hexagon nut
Fig. 5
Fig. 6
Electric equipment parts
13.
Flexible cord
14.
Change-over switch
15.5Terminal block, 12 V
DC
16.
Reigniter
17.
Relay
22.
Cover
23. Terminal block, 12 V DC, on certain models only
4
