CERTIFIED INSTALLATION
Certified installations require one roof vent and one lower side
vent or as optional one upper vent and one lower side vent.
The two alternatives are provided for by using the different kits
listed in the Appendix.
For further information contact your dealer or distributor.
METHODS OF INSTALLATION

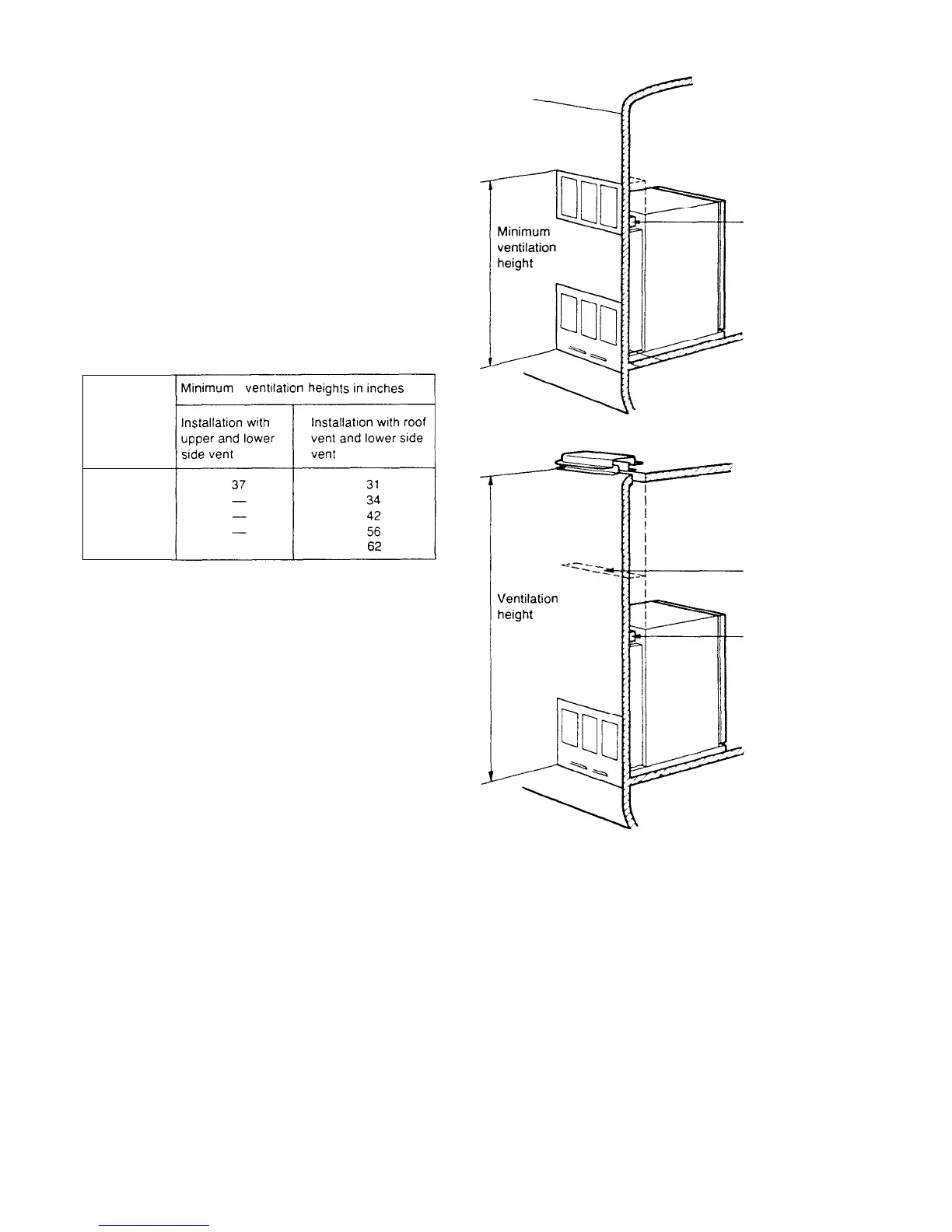

The methods of installation are shown in figures 9 and 10.
It is essential that all maximum or minimum dimensions are
strictly maintained as the performance of the refrigerator is
dependent on an adequate flow of air over the rear of the
refrigerator.
VENTILATION HEIGHTS
Refrigerator
RM360
RM460
RM660
RM760
RM1300
Minimum ventilation heights in inches
41
Fig.
9
Condenser
Duct cross
section
area
5"x18"
Condenser
Fig. 10
7
