Diagnostic Procedures Manual Refrigerator

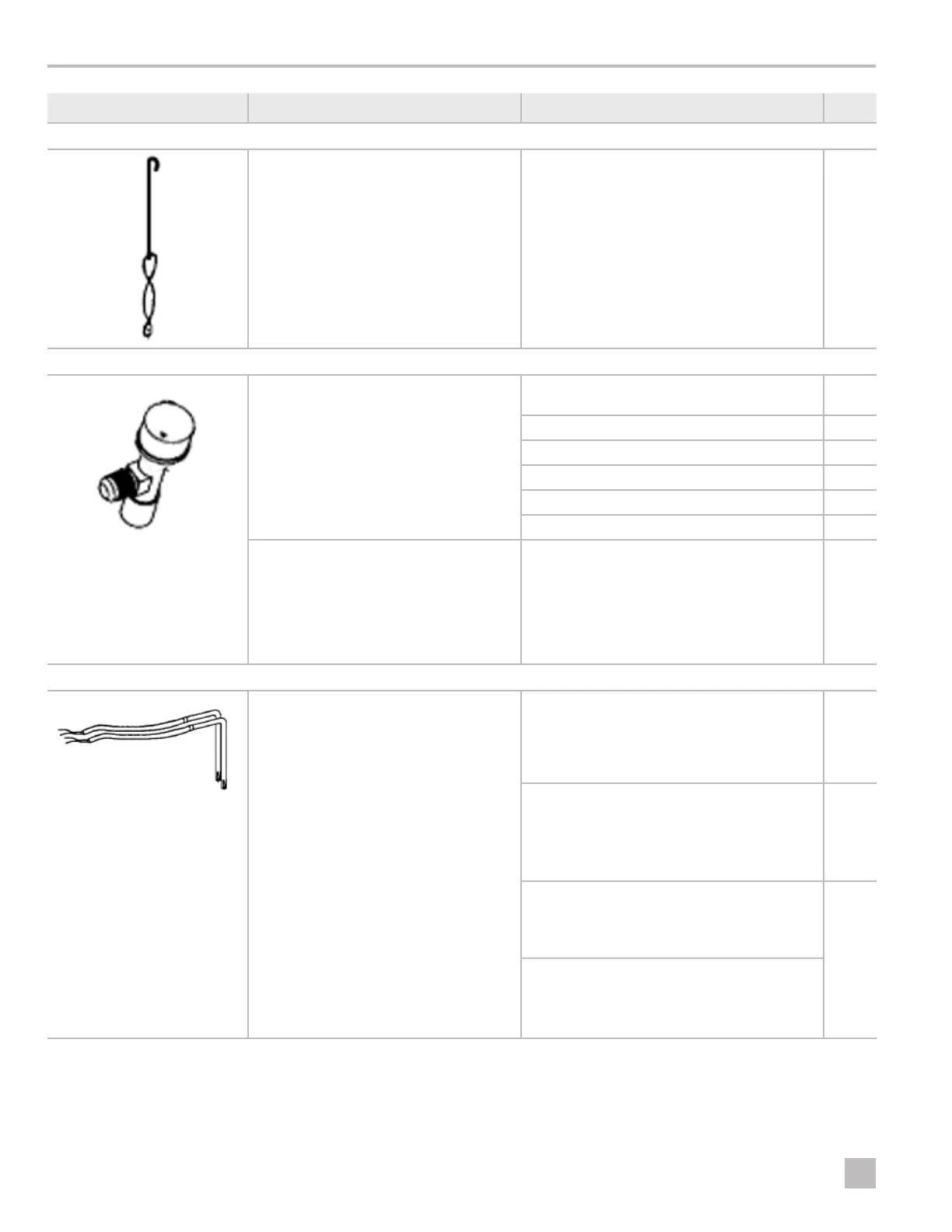

Component Diagnostic Question Action Based On Status Page
Flue Baffle
Does the refrigerator not get cold
enough in gas mode but does in AC or
DC mode?
1. Confirm that the flue baffle is properly
positioned in the burner tube.
2. Inspect the flue baffle for damage.
3. If damaged is observed, replace the flue
baffle.
18
Gas Valve
Does the refrigerator not operate in gas
mode?
Confirm that the knob on the gas valve is set
to on.
7
Perform a diagnostic on the gas pressure. 13
Perform a diagnostic on the burner assembly. 8
Perform a diagnostic on the flue baffle. 10
Perform a diagnostic on the piezo. 11
If the problem persists, replace the gas valve. 19
Does the refrigerator not get cold
enough in gas mode but does in AC or
DC mode?
Does the fresh food compartment freeze?
Adjust the knob on the gas valve to the
appropriate setting for the operating
conditions.
I
If the ambient temperature is above 80°F
(27°C), or the door of the refrigerator is
opened frequently, the knob should be
set to high.
N/A
Heating Element
Does the refrigerator not operate in AC or
DC mode?
1. Check the part number of the heating
element against the parts list for the
refrigerator model.
2. If the number does not match, replace the
heating element with the correct part.
N/A
Set the thermostat to the coldest position (7)
and confirm that the voltage supplied to the
heating element is within specification.
• AC heating element: 103.5–126.5VAC
• DC heating element: 10.5–22VDC
13
1. Inspect the heating element for cracks or
breaks.
2. If damage is observed, replace the
heating element.
19
1. Confirm that the resistance of the heating
element is within specification.
2. If the resistance is out of specification,
replace the heating element.
