REPLACEMENT OF DOOR GASKET ON
RM24
The construction of the door complete is an aluminium extruded door frame foamed
in place with the door pan and magnetic door gasket, i.e. the door pan cannot be
removed,
Therefore,
a special door sealing gasket for service purposes has been produced for
the above model. The gasket is delivered in a set consisting of the gasket and of
necessary fastening strips and
screws and is ordered under part No.
290
07
33-00/3.
The replacement is made as follows:
1.
Remove the door and place it with its front downwards on a soft surface.
2.
Cut off the defective door sealing gasket,
(Cut as near to the door pan as
possible).
3.
Drill
7/64”
holes for the screws of the fastening strips. Use the holes of the
door pan as pattern.
4.
Fit the sealing gasket as shown in the figure 21.
5,
Fit the door and adjust it so that it seals properly.

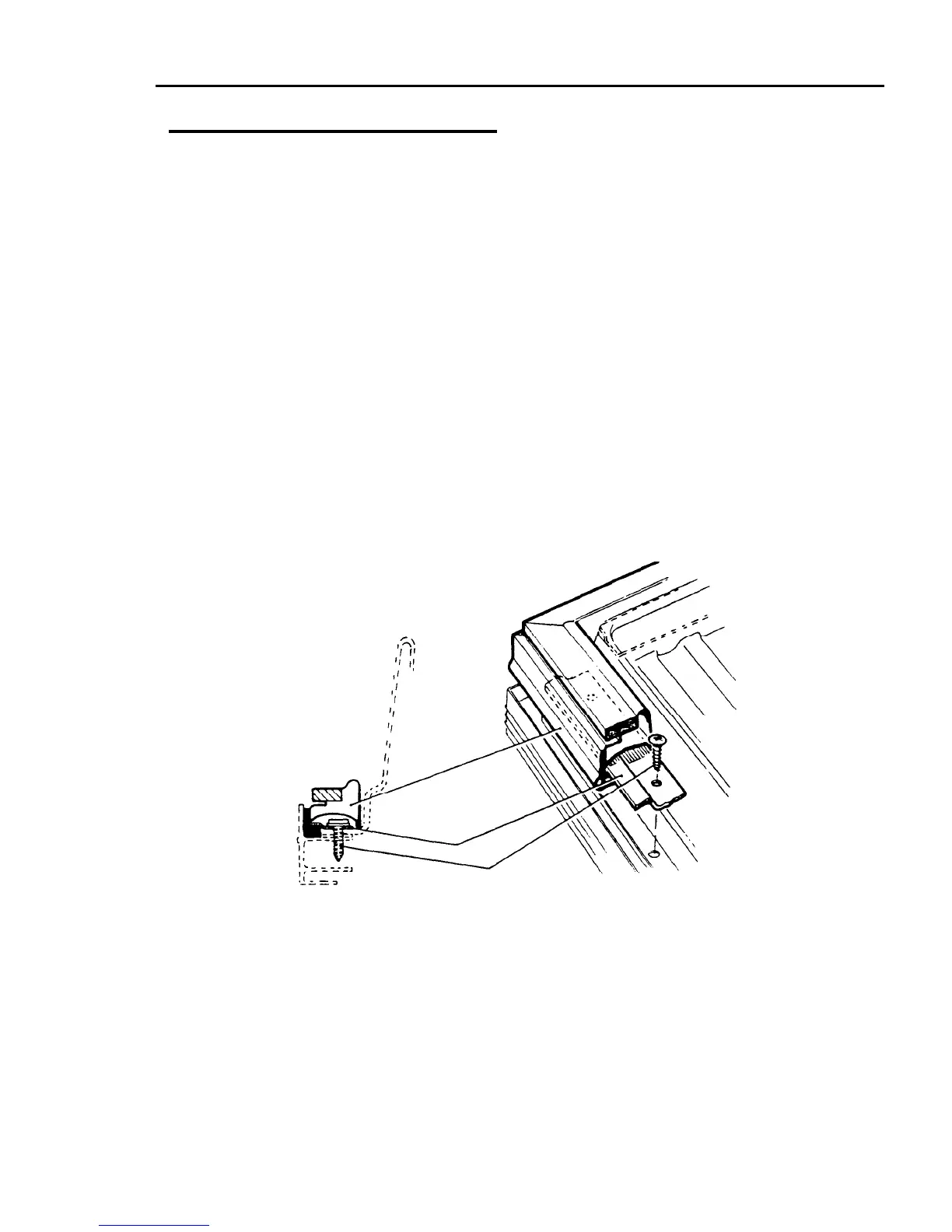

Fig. 21
