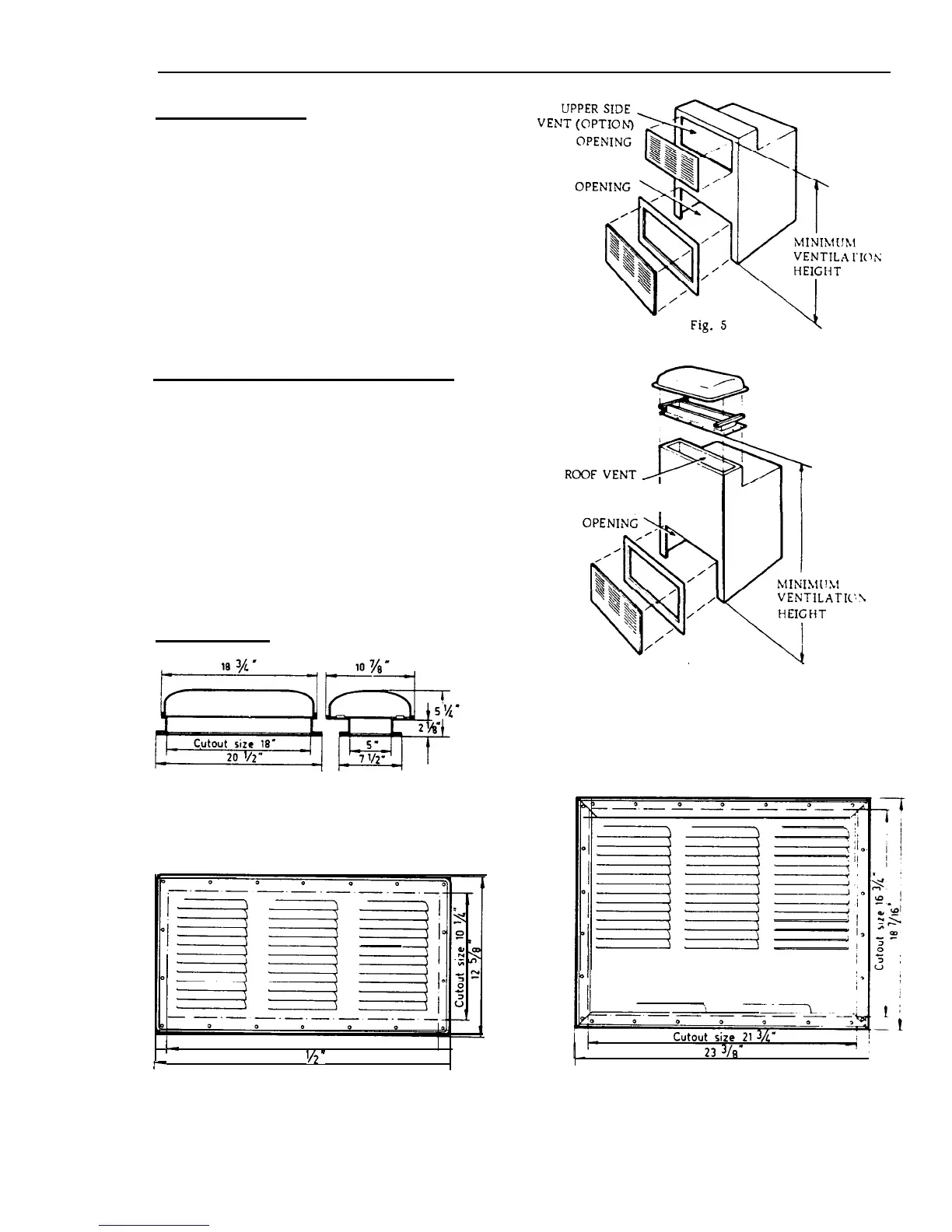

Kit No. 2 - RM36C
comprising:
Upper side vent (Dometic RM122)
Lover side vent (Dometic RM2217)
(see Fig. 5)
Kit No. 3
- RM36C, RM46, RM47
RM66, RM67, RM76, RM77
comprising:
Roof vent (Dometic V 2019)
Lover side vent (Dometic RM2217)
(see Fig. 6)
Dimensions pertaining to
the installation are shown
under measurements.
VENTING MEANS
Fig. 1
Roof vent for Kit No. 3
Dometic V 2019
c-
Cutout size 21”
23
‘/2’
1
I-
Fig. 8
Upper side vent, Kit No. 2
Dometic RM122
LOWER VENT
OPENING
-
LOWER VENT I
VENTILATK:\
Fig. 6
\
Fig. 9
Lover vent, Kits No, 2 and No, 3
Dometic RM2217
