THE GAS/ELECTRIC EQUIPMENT
Gas equipment parts
1. Burner tube
2. Burner, housing
3.
Jet
4.
Feeler point thermocouple)
5.
Flame failure safety device
6.
Bypass screw
7.
Gas/Electric thermostat
8.
Pressure test gage connection
9.
Capillary tube for thermostat
10. Shut-off value
11. Piezo igniter
12. Firing tip
13. Flue baffle

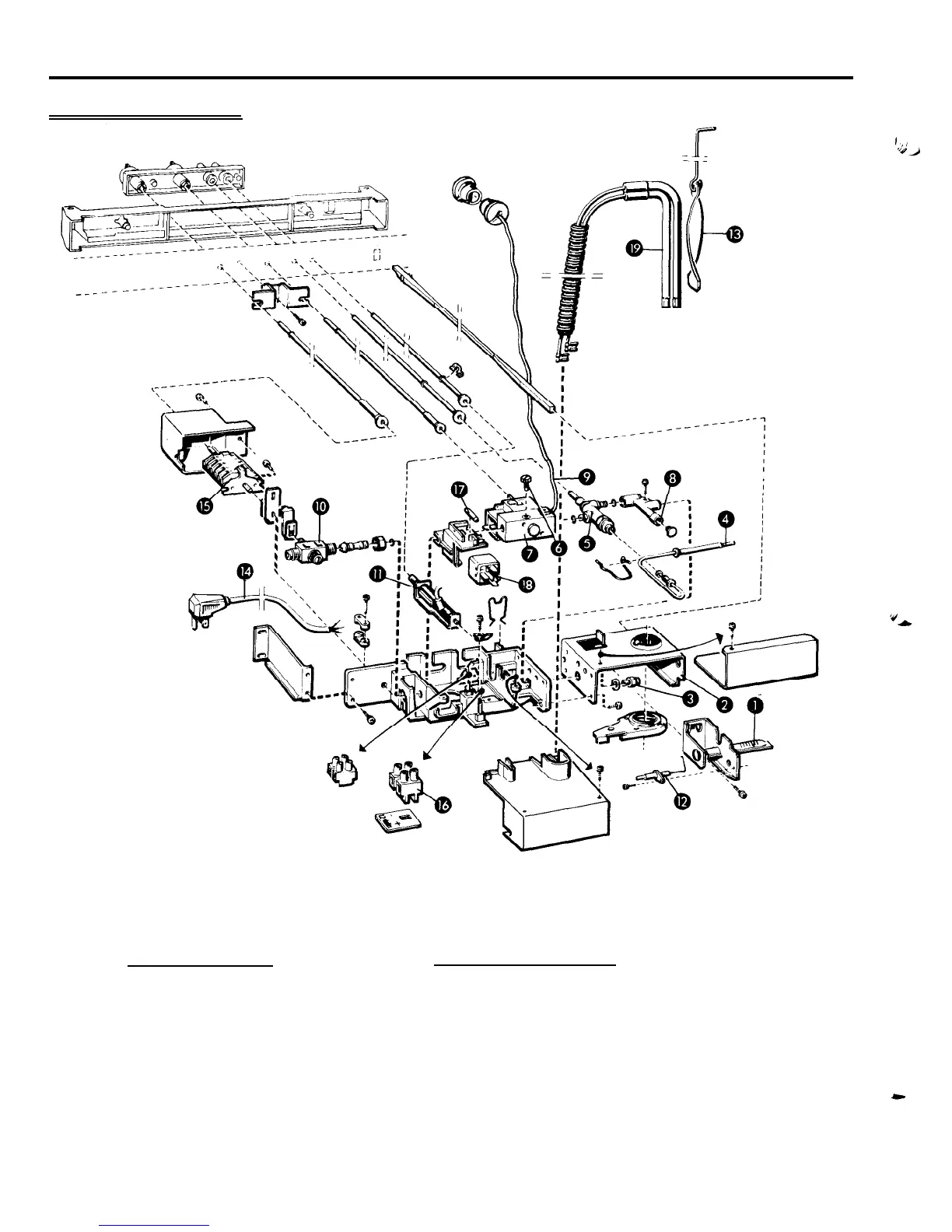

Fig.20
Electric equipment parts
14. Flexible cord
15. Change-over switch
16. Terminal block, 12
VDC
17. Fuse
18. Relay
19. Heater
