5.VENTILATION HEIGHTS
Refer to FIG 1., Page 2
Installation with roof Minimum Ventilation
vent and lower side vent heights in:
REFRIGERATOR INCHES MM
RM7030 65 1651
LOWER VENT CUTOUT
28-7/8"
13-3/4"
6.CLEARANCES
Minimum clearances in inches to combustible materials are:
G: Top 0"
K: Side 0"
L: Bottom 0"
M: Rear 1"
N: 65"
NOTE: Clearance "M" is between the rearmost part of the
refrigerator and the wall behind the refrigerator.
NOTE: Clearance "N" is the distance between the bottom
of the lower vent to the roof material. For ventilation
height, refer to
Section A. Installation, Item 5. Ventilation
Heights
. See FIG. 2.

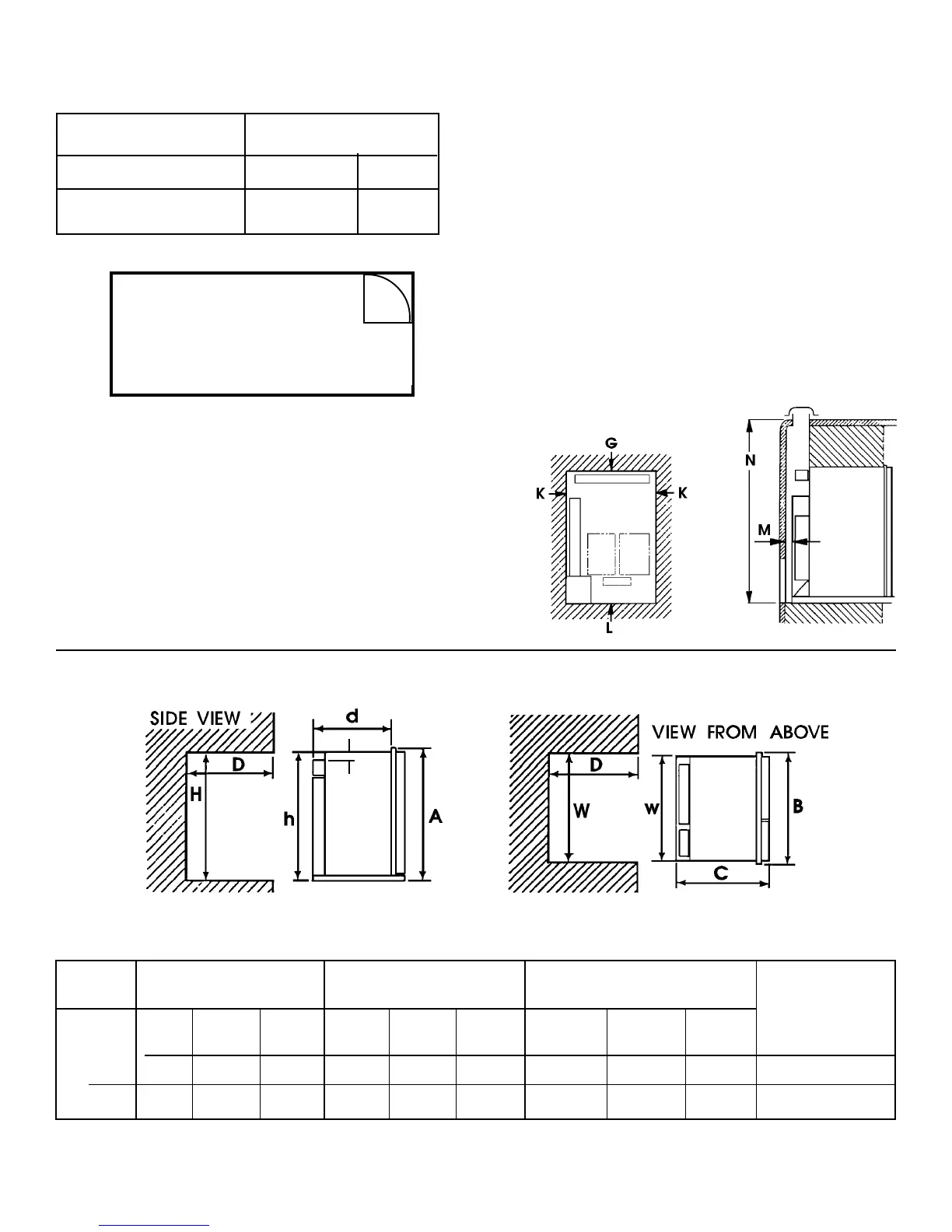

FIG. 2
e
Refrigerator Overall Installation Recess
Model Dimensions Dimensions Dimensions
RM7030 Height Width Depth Height Width Depth Height Width Depth
ABChwd H W D
(Inches) 58-3/4 33-1/2 23-5/8 57-1/8 32-3/8 22-5/8 57-3/8 32-7/8 23-5/8 1-1/8
(mm) 1492 850 600 1450 822 574 1258 544 612 29
Distance between
top of condenser
and top of refrigera-
tor
e
3-1/2"
3-1/2"
FIG. 3
NOTE: RADIUS CAN BE +1/4"–0"
HEIGHT AND WIDTH ± 1/8"
To Next Page
