2.CONTROL PANEL

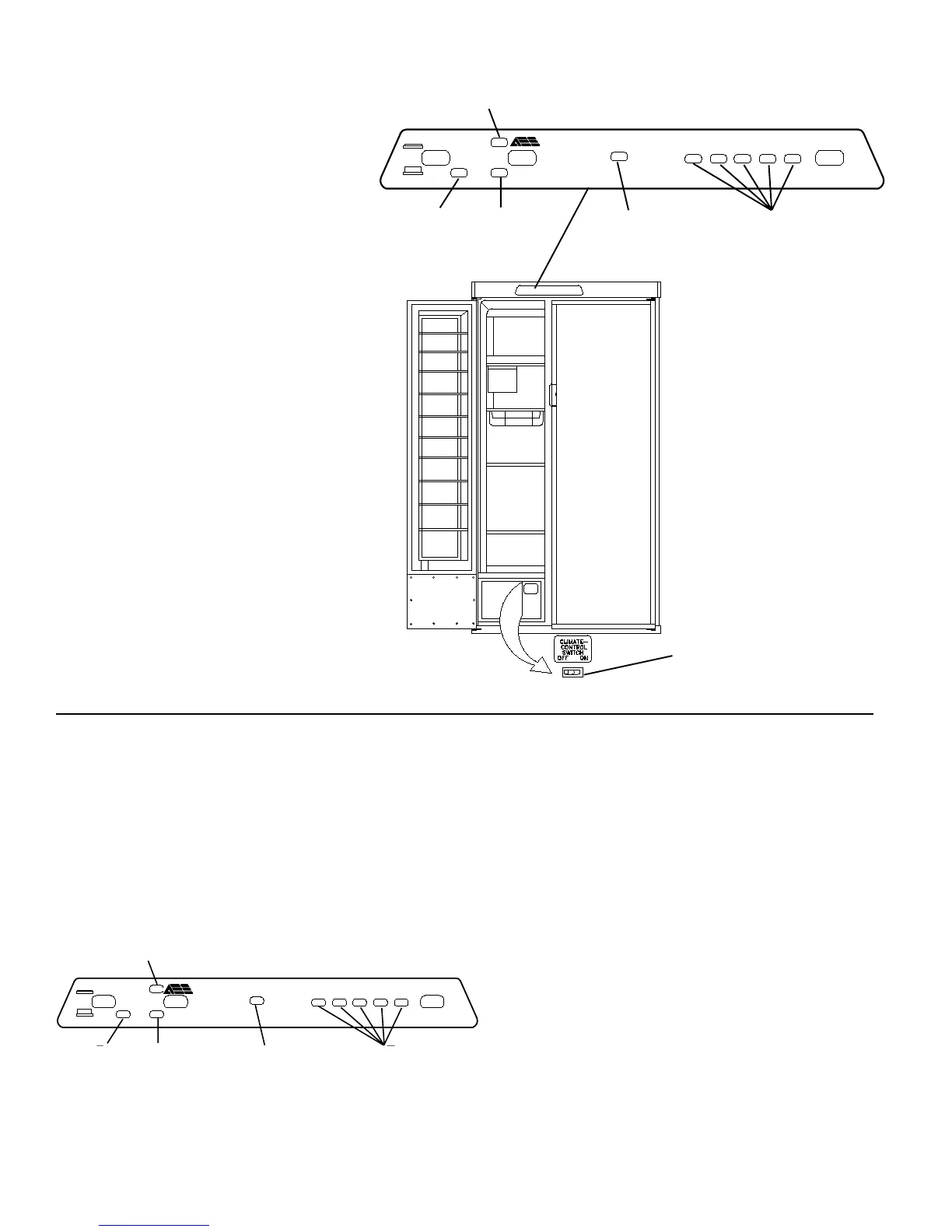

LEGEND 2-WAY AES MODEL
1. Main Power Button ON/OFF
2. AES Mode Selector Button
3. Temperature Selector Button
A. AC Mode Indicator Lamp
B. AES Mode Indicator Lamp
C. GAS Mode Indicator Lamp
D. CHECK Indicator Lamp
(GAS Mode Only)
E. Temperature Indicator Lamps
F. Climate Control Switch
ON
OFF A C G A S
1
2
COLD 1 2 3 4 5 COLDEST
3
C
F
FIG. 9
B
A
D
E
CHECK
2-WAY AES DISPLAY PANEL
3. OPERATING INSTRUCTIONS
A. A 12 volt DC supply must be available for the electronic
control to function.
B. Press the main power ON/OFF button (1) to the DOWN
position.
C. Press the TEMPERATURE SELECTOR BUTTON (3) 2-
Way Model, until the lamp at the desired setting is
illuminated.
2-WAY AES DISPLAY PANEL
ON
OFF
AUTO
AC GAS
1
2
CHECK COLD 1 2 3 4 5 COLDEST
3
D
C
B
E
F
B
A
C
D
E
D. AES MODE
1. Move the AES/GAS mode selector button (2) to the
DOWN position. (If 120 volts AC is available, the AC
mode indicator lamp (A) will illuminate indicating AC
operation. If 120 volts AC is not available, the GAS mode
indicator lamp (C) will illuminate and the control system
will automatically switch to GAS operation.
2. If the CHECK indicator lamp (D) illuminates and the GAS
mode indicator lamp (C) is off, the controls have failed to
ignite the burner in the GAS mode. GAS operation may
be reset by pressing the main power ON/OFF button (1)
to the OFF then ON position. (See Step 2, under GAS
MODE).
3. Press the TEMPERATURE SELECTOR button (3) until
the lamp at the desired position is illuminated.
4. When operating in the AES mode, the AES mode
indicator lamp (B) will illuminate. The control system will
automatically select between AC and GAS operation
with AC having Priority over GAS. Either the AC indicator
lamp (A) or the GAS indicator lamp (C) will illuminate
depending on the energy source selected by the control
system. If the control system is operating with AC energy
