Dometic RML 8550 - Safety Instructions; Application according to regulations; Users responsibility; Protection of children when disposing of the equipment

11

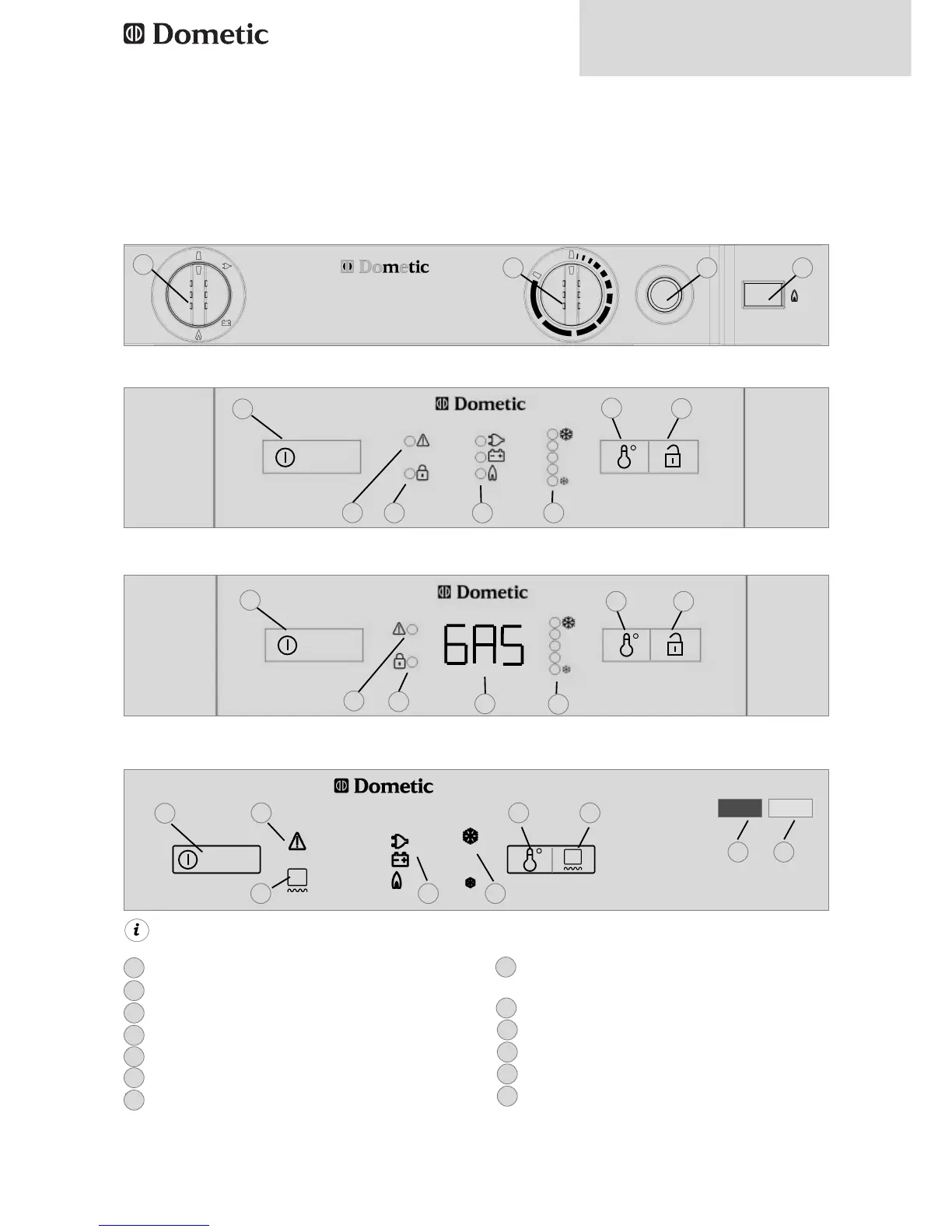

Manual energy selection / manual ignition (RM 8xx0) battery igniter:
1.7 Explanation of operating
controls
Fig. 13
Manual energy selection / automatic ignition (RM 8xx1) MES:
Mode
Fig. 14
Automatic energy selection / automatic ignition (RM 8xx5) AES:
Fig. 15
Mode
Manual energy selection / automatic ignition (RMD 8xx1) MES:
Mode
Fig. 16
1 Power On switch / Energy selector switch
2= Temperature selection
3= PIEZO-ignition (battery igniter)
4= Flame indicator (galvanometer) (PIEZO-models)
5= Indicator LED failure
6= Indikator-LED / operating mode display
7= Temperature level display
8= Door opening (only when equipped with
electrical door lock))
9= Indicator LED door lock (optional)
10 Power On switch frame heating
11 Indicator LED frame heating
12 External display Failure (red)
13 External display Apliance in operation (blue)
1
5
11 6
2 10
1312
7
1
2
3
4
5
6
7
8
9
10
11
12
13
1
1
5
6
6
7
7
5
9
2
2
8
9
8
2
3 4
1
Indication of operating status at AES model with 7-segment display
