• The safe operation of the controller is dependent
upon proper installation and maintenance, common
sense, safe judgment and the knowledge/expertise of
the operator. Every installer/user of the controller should
know the following requirements ‘before’ installing/using
the controller.
•
If you have any questions regarding any of these
warnings, contact Dometic.
• To reduce risk of severe injury or death. Always wear
a Coast Guard Approved personal flotation device
2 General Information
The images used in this document are for reference
purposes only. Components and component locations
may vary according to specific product models.
3 How The System Works
Digital switching with the DCM greatly simplifies the electrical
system on
your boat. The system provides a cleaner dash by
eliminating switches and placing them on the multi-function
display. Through the display you
can easily control your boat
via single button touch. One touch operation
modes on MFD
combine different loads for smoother boat operation.
Custom modes and frequently used switches can be
controlled via remote. The system can easily be turned on/
off with the key fob.
3.1 DCM Features
• Combined input and output
channels in one module
• Touch screen compatible
• Small size and footprint
• 16x outputs channels
• 2x “always on” channels
with removable fuses
• Load monitoring
• 6x analog inputs
• 16x switch inputs
• Fuse bypass available on
all outputs
• Wireless remote control
• Battery management
• Voltage monitoring
• NMEA 2000 compatible
• Gateway to CAN devices
3.2 Wireless Key Fob for
DCM Features
• Wirelessly connects with
DCM
• Buttons pre-programmed
in DCM for different
operating modes.
• Multiple identical key
fob’s can be connected.
• Waterproof to a depth of
1 meter
• Optional dash mount
holder
• 750- line of sight range
• 418 MHz, North America
FCC certified
• Single 3V CR2032 Li cell
• Power button: Press and hold
(1 sec. to turn on. 2 sec. to
turn off)
EN

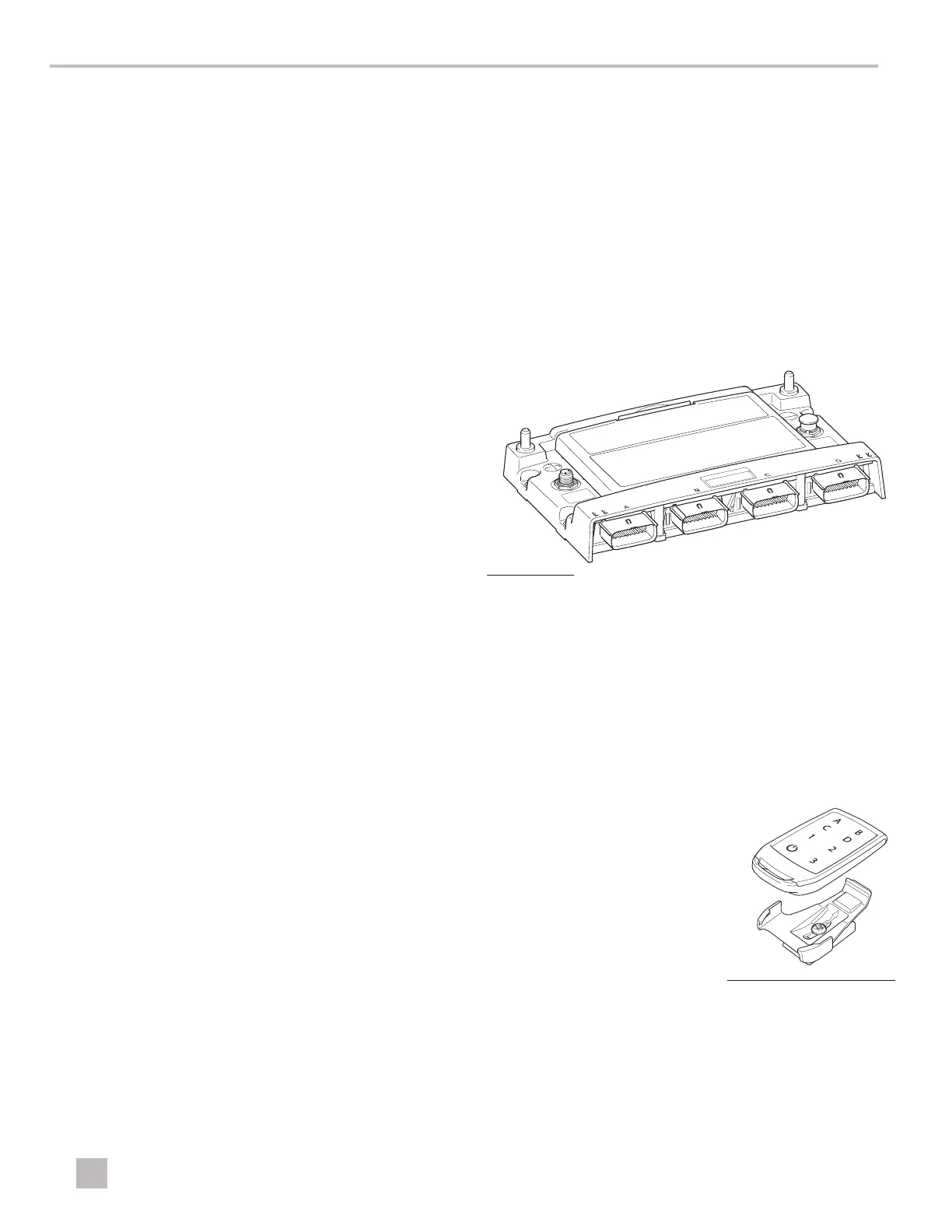

Figure 2.1. DCM
Figure 2.2. Generic key fob overlay
shown. Actual overlay will look
custom for your boat.
Product Description 3 How The System Works
