NOTE: for straight ORB fittings simply torque fitting to 18 ft-lbs
(24.4 N-m). Fitting re-orientation not required.
1. Back off lock nut (item 1), counter-clockwise, until it stops.
NOTE: O-ring must be fully on sealing surface and cannot contact
any threads. Do not use Teflon tape or any liquid pipe sealant
with ORB fittings.
2.
Thread fitting into helm port until fitting washer (item 2) contacts the
face of the helm port. Tighten hand tight. DO NOT USE A WRENCH.
3. Re-position fitting to desired orientation by turning it counter-
clockwise to a MAXIMUM of 1 full turn.
4. While holding the fitting body securely with a wrench, torque the
lock nut (item 1) to 18 ft-lbs (24.4 N-m).
5. With helm installation on dash completed, hold the fitting body
securely with a wrench, torque the hose end nut to 15 ft-lbs
(20.3 N-m).
6. Purge system per applicable instruction manual.
CAUTION

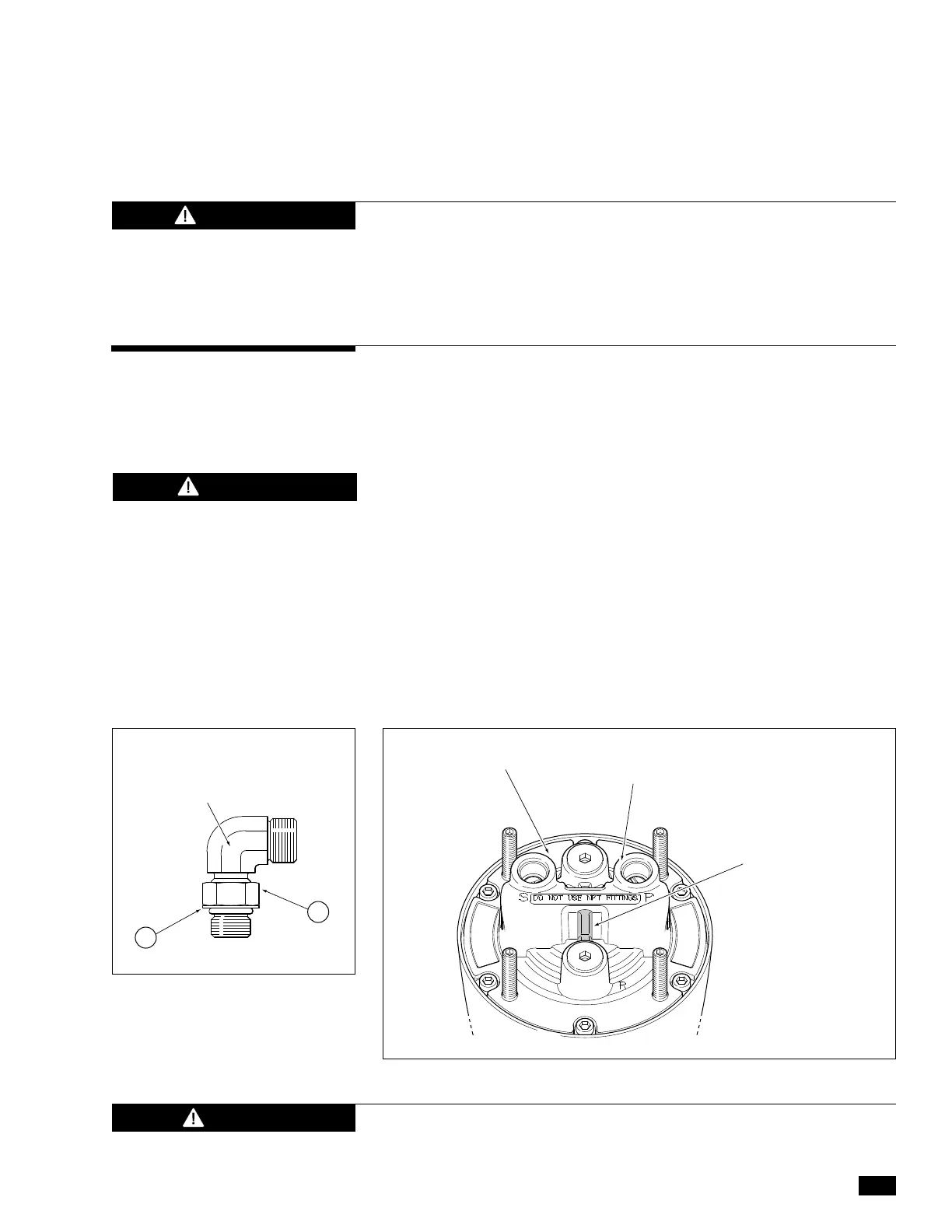

Re-Positionable Pump
Fitting Installation
SECURE WITH
WRENCH HERE WHILE
TIGHTENING LOCKNUT
(ITEM 1)
2
1
Figure 3.
DATE CODE LOCATION THREAD FITTING BY HAND UNTIL
WASHER CONTACTS THIS FACE
-4 HELMS IDENTIFIED
BY UPDATED CASTING
FEATURE HERE
(NON-PRO HELMS ONLY)
Figure 4.
-4 helm pumps are fitted with positionable O-ring style hose fitting
ports (referred throughout this manual as ORB). -4 ttings are
exactly the same as -3 ttings. Do NOT attempt to install an NPT
pipe fitting into a -4 helm hose fitting port. Doing so will lead to
irreparable damage to the helm. ONLY use Dometic O-ring style
hose fittings (ORB).
WARNING
Failure to properly tighten the
lock-nut (item 1) may lead to
loss of steering control. Loss of
steering control may result in
unpredictable boat behavior,
collision with an obstacle and/
or ejection from
vessel, leading
to property damage,
personal
injury and/or death.
Dometic recommends that the hose and hose fittings are checked on
a regular basis to ensure the safe operation of the steering system.
WARNING
Re-Positionable ORB Hose Fitting
Installation/Realignment
MOUNTING/INSTALLATION
