WARNING
Use the self-locking fasteners provided ONLY; substituting non-self
locking fasteners can result in loosening or separation of equipment
leading to loss of steering control causing property damage and/
or personal injury.
ITEM QTY DESCRIPTION
1 1 Tilt Plate
2 3 CB 1/4" NC x 2"
3 3 Washer, 1/4" Flat SS
4 3 Nut, 1/4" NC, Nyloc
®
5 4 HHCS 1/4" NC x 2-1/2" SS
6 1 Tilt Mechanism
7 1 SCHS #10-24 x 7/8" SS
8 2 PHMS 5/16" NC x 3/4"
ITEM QTY DESCRIPTION
9 2 Washer, Star
10 1 Boot Latch
11 1 Bezel, Lower
12 2 #8-32 x 1"
13 1 Bellows
14 1 Shaft Key
15 1 Wheel Shaft Nut
16 1 Remote Fill Connection
For Replacement Parts
refer to page 11.

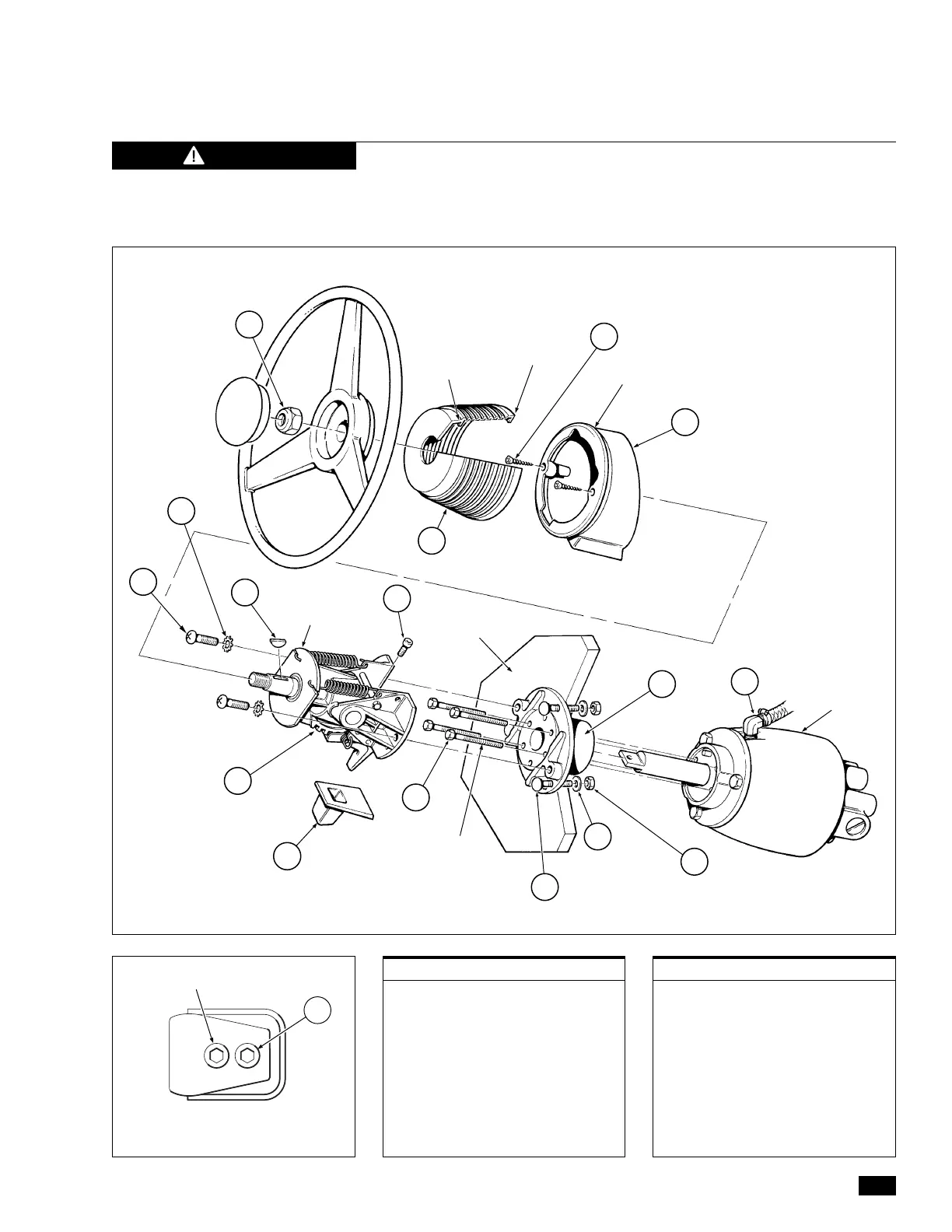

Figure 5a.
Figure 5.
13
15
6
DASHBOARD
1
HELM PUMP
14
LIP #1
LIP #1
LIP #2
LIP #2
THREAD LOCK
PRE-APPLIED
BY FACTORY
11
12
9
3
5
4
7
8
16
2
10
7
TOP SCREW
