Install your steering cylinder
as per the Installation manual
provided with your cylinder.
STEERING CYLINDER INSTALLATION:
STEP 3

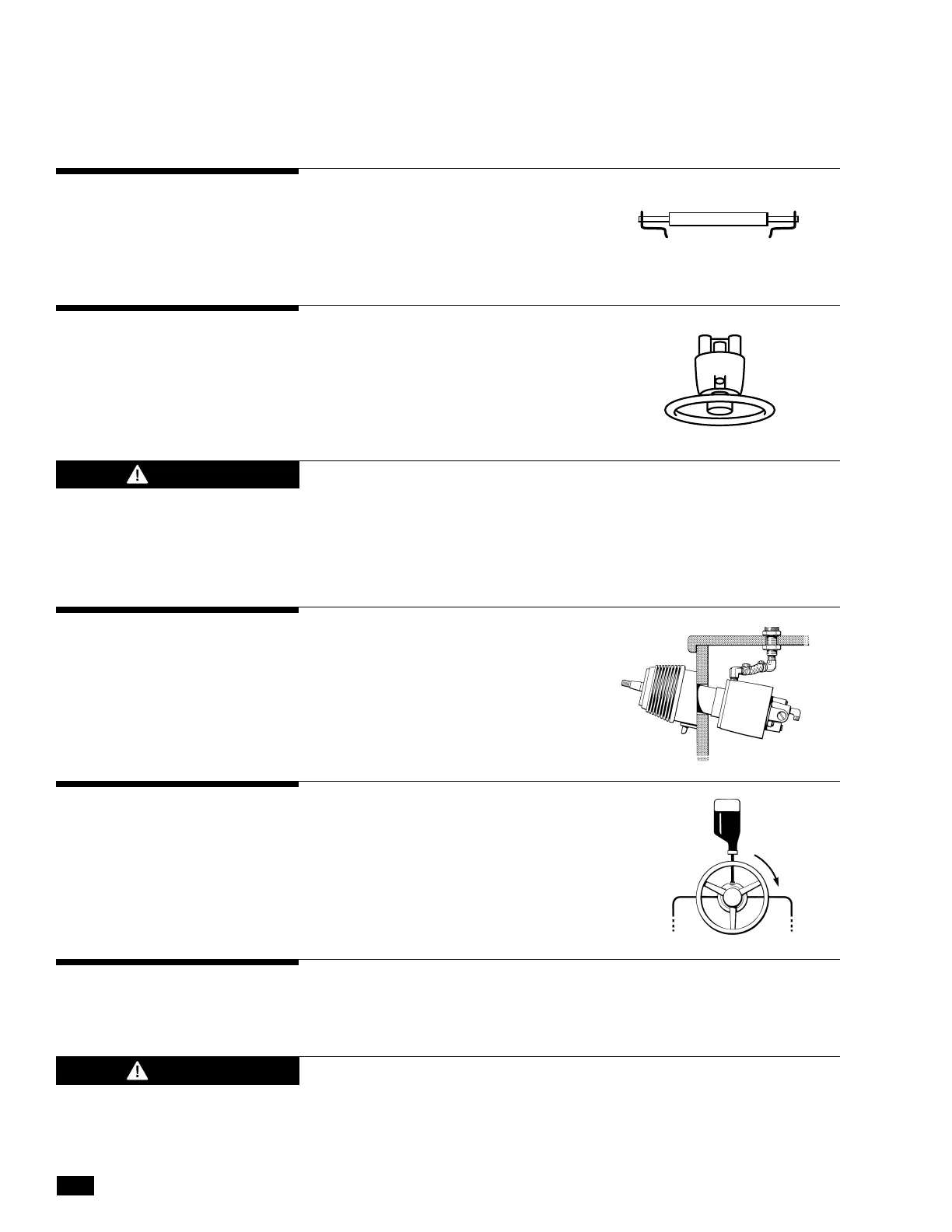

SYSTEM INSTALLATION
OVERVIEW
STEP 1
Step 4
STEP 2
Step 5
WARNING
Oil Level and System Check is critical to the safe operation of your
boat, failure to follow this important step may lead to loss of steering
control resulting in property damage, personal injury and/or death.
CAUTION
-4 helm pumps are fitted with positionable O-ring style hose fitting
ports (referred throughout this manual as ORB). -4 ttings are
exactly the same as -3 ttings. Do NOT attempt to install an NPT
pipe fitting into a helm hose fitting port. Doing so will lead to
irreparable damage to the helm. ONLY use Dometic O-ring style
hose fittings (ORB).
Install your Tilt Helm as per the
detailed installation instructions on
page 5 to page 9 of this manual.
TILT HELM INSTALLATION:
Using page 10 in this manual,
install the remote ll hardware.
REMOTE FILL INSTALLATION:
Using the Fill and Purge instructions
provided in your steering cylinder manual,
ll and purge the steering system.
FILLING AND PURGING OF STEERING SYSTEM:
Using the “Oil level and system checks” provided in your steering
cylinder manual, conrm proper operation of your steering system.
OIL LEVEL AND SYSTEM CHECK:
