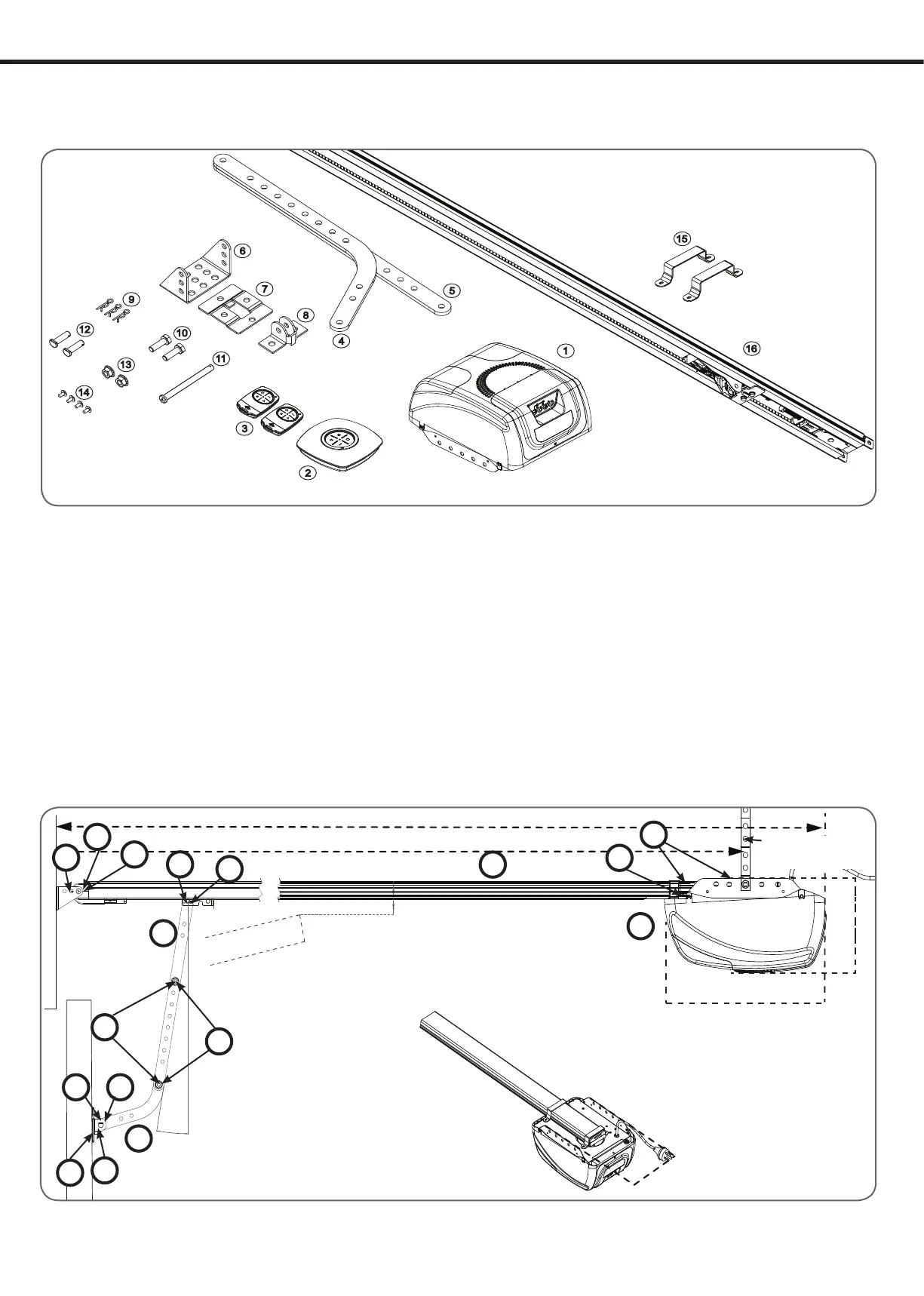

4. Kit Contents
4
5
6
7
8
9
10
11
12
13
14
16
15
2
3
1
1. 1 x SDO drive unit
2. 1 x Wall mount transmitter
3. 2 x Transmitters
4. 1 x Bent arm door attachment
5. 1 x Straight arm door attachment
6. 1 x Wall bracket TS01
7. 1 x Door bracket Locator
8. 1 x Door bracket
9. 3 x Pin Snap SSP 8 ZNU 31080
10. 2 x Hex Head screw M8x25
11. 1 x Pin 0890
12. 2 x Clevis Pin 0829
13. 2 x Hex Serration ange nut M8
14. 4 x Hex ange screw ‘S’ M4 x 10
PLUS
15. 2 x Track Bracket
16. 1 x Pre-Assembled
track
5. Position
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.
10.00°
min
MINIMUM HEAD
ROOM FOR STEEL
RAIL 57mm
DOORS HIGHEST
POINT
210mm
3198mm*
3330mm
157mm
295mm
Rail no Extension Kit 3198mm
Rail + 1 Extension Kit 3988mm
Rail + 2 Extension Kits 4778mm
* Rail refers to 3160 rail
