Guidelines for an effective installation
The extraction nozzle shall be installed downstream of the fume source, so as to ensure that the fumes are
transported in the direction of the extraction nozzle.

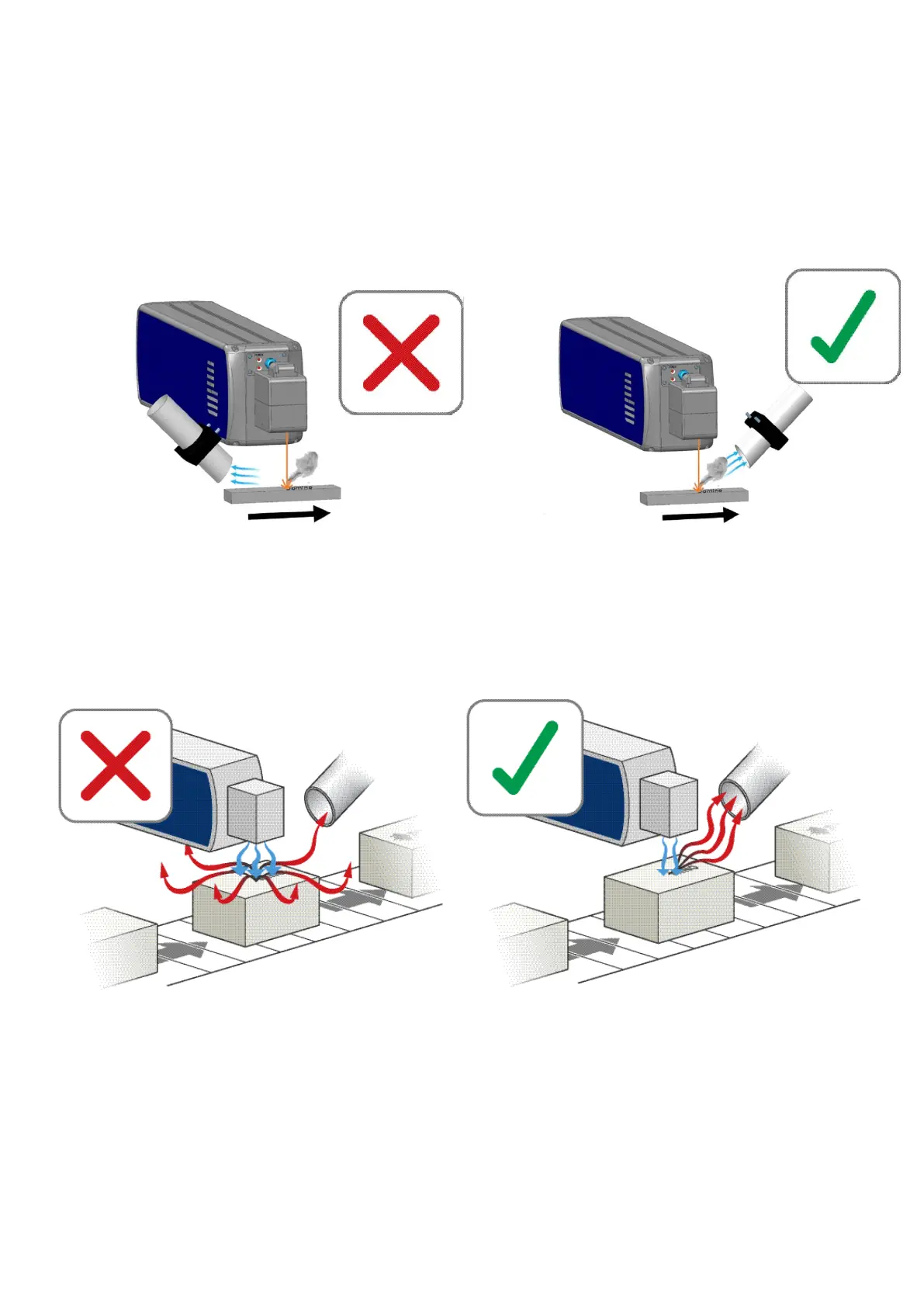

Incorrect nozzle position – fumes drawn
along with the product movement away
from the nozzle.
Correct nozzle position – fumes drawn
along with the product movement into the
nozzle.
Incorrect lens air – air too strong, and the
fumes are being blown away from the
extractor hose inlet.
Correct lens air – the fumes are being
drawn into the extractor hose inlet.
