Overview
03

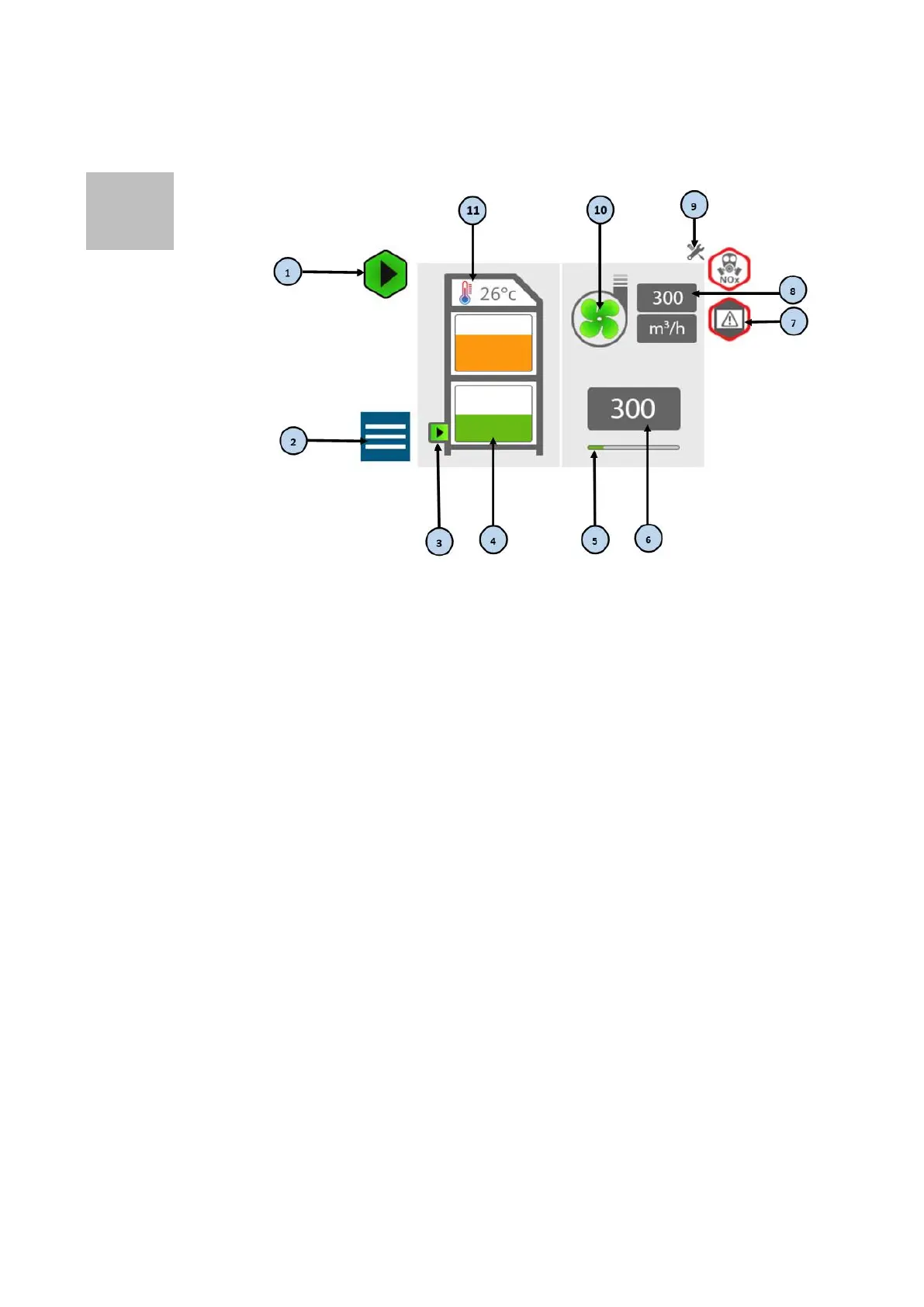

1. Run Control: allows the operator to START/STOP the extraction
2. Access: Navigates to ‘Menu’ page
3. System Indication: visual indication of inlet condition. As well as Pre and Main filter conditions.
4. Filter Indication: visual indication of filter condition. Pressing will navigate to relevant ‘Filter Data’
page
5. Airflow level indication: visual indication of flow setpoint relative to maximum setpoint. Pressing
will navigate to ‘Airflow Setting’ page
6. Airflow Setpoint: visual indication of airflow setpoint. Pressing will navigate to ‘Airflow Setting’
page
7. Alarm Notifications bar: visual indication of alarm states. Will populate with active alarms. Pressing
will navigate to ‘Alarms’ page
8. Actual Flow: visual indication of system flow. Units will be configurable (m³/h or CFM)
9. Service Indication: required system service notification.
10. Blower Status: visual indication of blower status. Pressing will navigate to ‘Blower Diagnostics’ page
11. Temperature Status: visual indication of internal system temperature. Units will be configurable
(degrees °C or °F).
