Domo DO937DV User Manual

25
DO937DV
www.domo-elektro.be
DE
4. Entfernen Sie die unterste Schraube, den Scharnierbügel und den Stellfuß unten am Gerät.
Reverse Door
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
 Ensure the unit is unplugged and empty.
 To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
 All parts removed must be saved to do the reinstallation of the door.
 Do not lay the unit flat as this may damage the coolant system.
 It' s better that 2 people handle the unit during assembly.
1. Remove two screws at rear side of top cover.
2. Remove top cover and thermostat knob, then place it aside.
3. Unscrew top hinge and then remove door and place it on a soft pad to
avoid scratch.
4. Unscrew bottom hinge. Then remove the adjustable feet from both
side.
7
unscrew

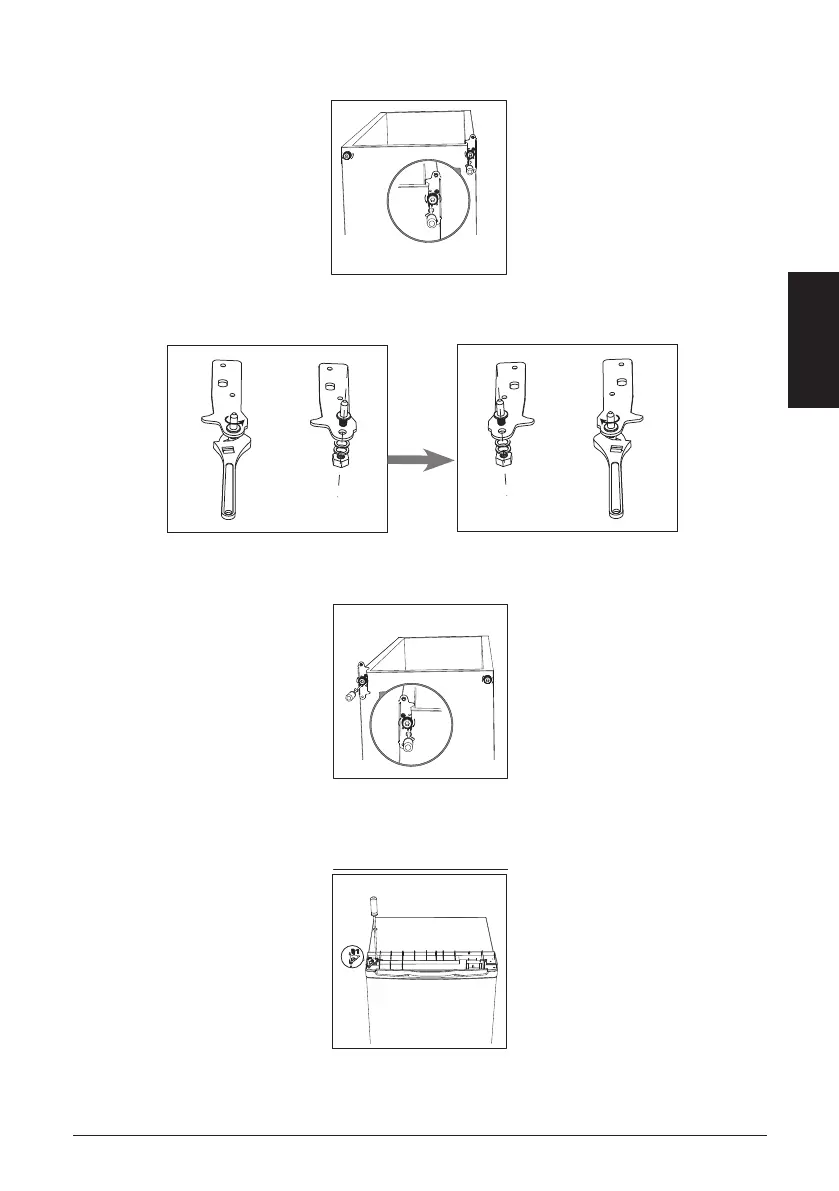

5. Lösen Sie den Scharnierbolzen aus dem Scharnierbügel. Kehren Sie das Scharnier um und
befestigen Sie den Scharnierbolzen wieder.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet.
7. Place the door back on. Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all sides before finally
tightening the top hinge.
8. Put the top cover and fix it with 2 screws on the back.
Unscrew
Screw
8
Reverse Door
9. Fix the thermostat knob.
screw
6. Befestigen Sie die Schrauben, den Scharnierbügel und den Stellfuß an der gegenüberliegenden
Seite des Bodens. Schrauben Sie diese leicht an.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet.
7. Place the door back on. Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all sides before finally
tightening the top hinge.
8. Put the top cover and fix it with 2 screws on the back.
Unscrew
Screw
8
Reverse Door
9. Fix the thermostat knob.
screw
7. Setzen Sie die Tür vorsichtig ein. Achten Sie darauf, dass die Tür sowohl senkrecht als auch
waagerecht ausgerichtet ist, sodass die Dichtungen an allen Seiten anliegen, bevor Sie das obere
Scharnier vollständig festziehen. Setzen Sie das Scharnier wieder ein und schrauben Sie dieses an
der Oberseite des Geräts fest.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet.
7. Place the door back on. Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all sides before finally
tightening the top hinge.
8. Put the top cover and fix it with 2 screws on the back.
Unscrew
Screw
8
Reverse Door
9. Fix the thermostat knob.
screw
