1 LIST OF COMPONENTS
8
9
11
12
18
15
11
14
13
10
7
6
5
4
3
2
1
17
16

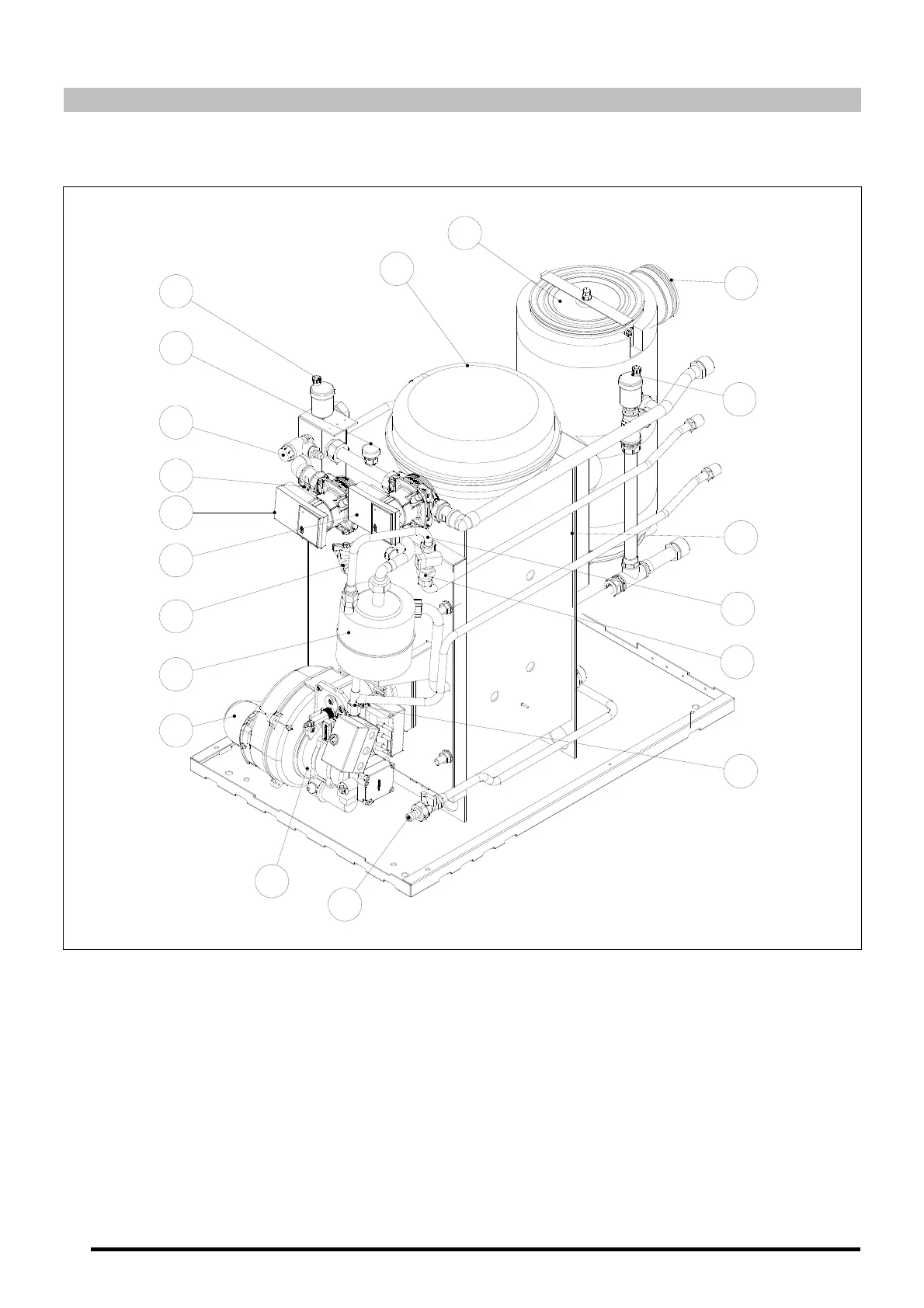

1. Drainage valve.
2. Domestic balaced flue burner.
3. Combustion air inlet.
4. Hot water heat exchanger.
5. Filling valve.
6. Heating circulating pump.
7. Hot water charge pump.
8. Boiler temperature sensors.
9. Safety valve.
10. Pressure sensor.
11. Automatic air vent.
12. Expansion vessel.
13. Stainless steel condenser.
14. Fume exhaustion duct.
15. Steel body.
16. Flow switch.
17. Hot water flow limit.
18. Hot water temperature sensor.
