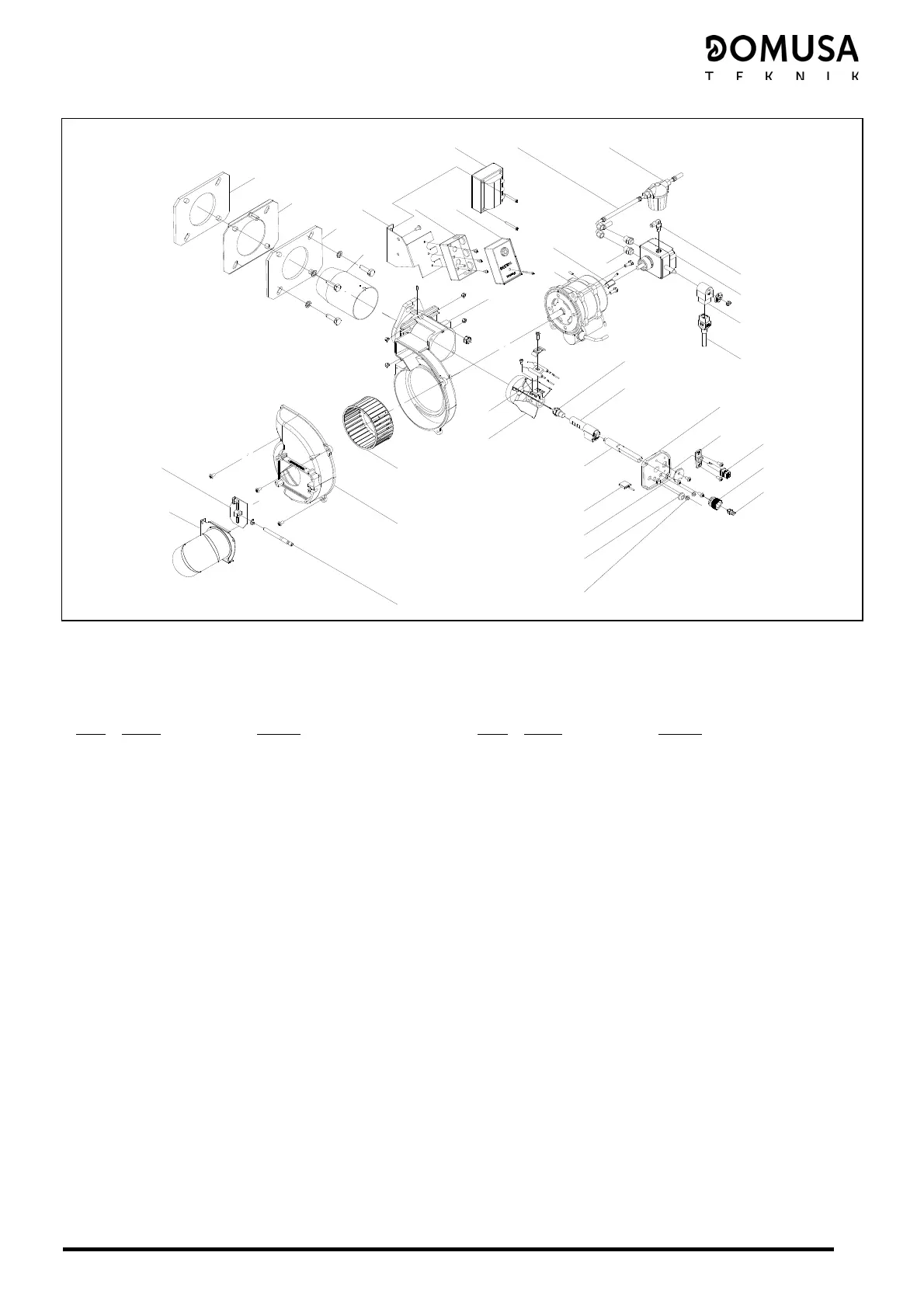

Burner
6
7
8
9
10
16
17
18
19
20
21
22
26
30
31
33
27
29
28
12
11
14
13
25
24
23
5
4
3
2
1
32
34
35
36
37
15
Pos. Code Name Pos. Code Name
1 CFER000032 Cable gland 20 CQUE000005 Transformer
2 CFER000033 Cable gland 21 CQUE000147 Oil hose
3 Line fastening 22 CQUE000055 Oil filter
4 CQUE000027 Preheater cable 23 CTOR000007 Elbow connector
5 CTOE000063 Burner line D3 24 CQUE000011 Oil pump Suntec
CTOE000067 Burner line D4 CQUE000088 Oil pump Danfoss
6 CQUE000155 Turbulator disc D3 25 CQUE000056 Valve coil Suntec
CQUE000022 Turbulator disc D4 CQUE000089 Valve coil Danfoss
7 CQUE000019 Set of electrodes 26 CQUE000054 Valve coil cable Suntec
8 CQUE000044 Fan CQUE000124 Valve coil cable Danfoss
9 CQUE000095 Air adjustment support 27 CTOE000065 Counter thread
10 CTOE000064 Air adjustment screw 28 CQUE000004 Motor pump coupling
11 CQUE000151 Air adjustment plate D3 29 CQUE000102 Motor
11 CQUE000152 Air adjustment plate D4 30 CQUE000094 Motor support
12 CGAS000220 Manifold 31 CQUE000206 Nozzle OD-H 0,60 – 80º (D3)
13 CQUE000033 Flange seal CQUE000081 Nozzle OD-H 0,75 – 60º (D4)
14 SATQUE0001 Flange 32 CQUE000061 Preheater
15 CQUE000158 Support seal 33 CQUE000096 Line cover
16 CQUE000200 D3 tube 34 CQUE000223 Photocell support
CQUE000198 D4 tube 35 SOPE000241 Photocell
17 Transformer support 36 CTOE000054 Line adjustment nut
18 CQUE000129 Control box plugs 37 CTOR000006 Straight connector
19 CQUE000169 Control box
