Donner Looper - Connections and Controls Diagram; Input and Output Jacks; DC 9 V Power Jack; Level Control Knob

www.donnerdeal.com

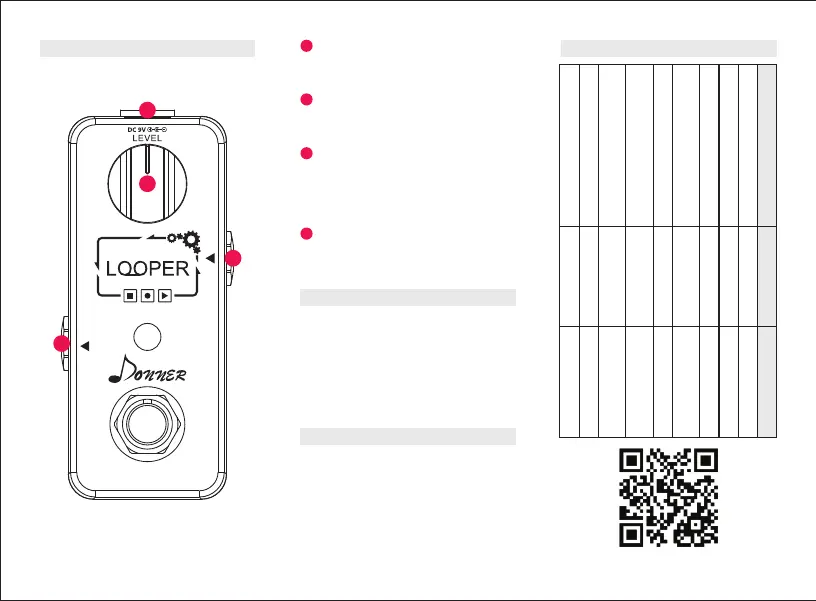

Connections & Controls
c
d
a
b
Features
●Convenient compact size
●Easy-to-use looper
●CD quality recording and playback
●Infinite overdubs
●Supports undo/redo function
●Max. recording time: 10 minutes
●LED indicator shows working state
Specifications
Max. Recording Time: 10 minutes
Power Requirement: 9V DC center
negative
Current Consumption: 90mA
Dimensions: 42x93.5x52mm
Weight: 230g
Material: Aluminum alloy
a
b
c
d
Input Jack:
1/4” mono audio jack, for connecting
instruments or other pedals.
Output Jack:
1/4” mono audio jack, for connecting
amps or other devices.
DC 9V Jack:
For power supply, use a 9-volt DC
regulated by ac adapter, 500mA (plug
polarity is positive on the barrel and
negative in the center).
LEVEL Knob:
Controls the looper playback volume.
Operation
Function/Status LED
Power on (no loop)
Power on (with loop)
Tap footswitch (no loop)
Tap footswitch when recording/overdubbing
Tap footswitch when playing
Hold footswitch when playing
Tap footswitch twice when
playing/recording/overdubbing
Hold footswitch when stopped
Recording around 10 minutes
Empty
Stop
Record
Play
Overdub
Undo/Redo (last recording)
Stop
Clear
Storage nearly full
None
Green(flashes)
Red (solid)
Green(solid)
Red(solid)
Green(flashesfast)
Green(flashes)
Green(flashesfast)
Red(flashes)
Operating Instruction
