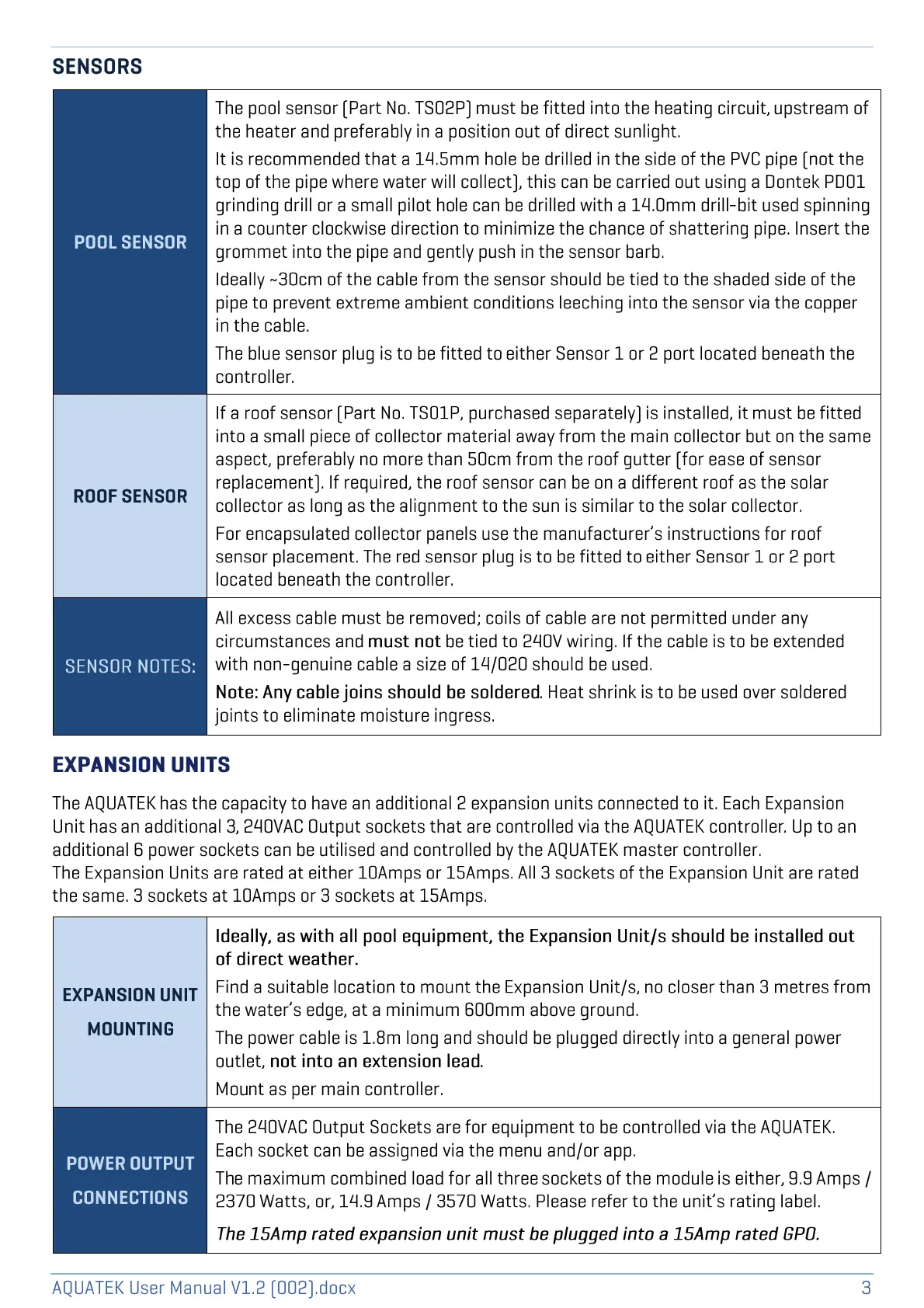

SENSORS
POOL
SENSOR
The
pool
sensor
[Part
No.
TS02P]
must
be
fitted
into
the
heating
circuit,
upstream
of
the
heater
and
preferably
in
a
position
out
of
direct
sunlight.
It
is
recommended
that
a
lA.5mm
hole
be
drilled
in
the
side
of
the
PVC
pipe
[not
the
top
of
the
pipe
where
water
will
collect],
this
can
be
carried
out
using
a
Dontek
PD01
grinding
drill
or
a
small
pilot
hole
can
be
drilled
with
a
lA.Omm
drill-bit
used
spinning
in
a
counter
clockwise
direction
to
minimize
the
chance
of
shattering
pipe.
Insert
the
grommet
into
the
pipe
and
gently
push
in
the
sensor
barb.
Ideally
~30cm
of
the
cable
from
the
sensor
should
be
tied
to
the
shaded
side
of
the
pipe
to
prevent
extreme
ambient
conditions
leeching
into
the
sensor
via
the
copper
in
the
cable.
The
blue
sensor
plug
is
to
be
fitted
to
either
Sensor
1
or
2
port
located
beneath
the
controller.
ROOF
SENSOR
If
a
roof
sensor
[Part
No.
TS01P,
purchased
separately]
is
installed,
it
must
be
fitted
into
a
small
piece
of
collector
material
away
from
the
main
collector
but
on
the
same
aspect,
preferably
no
more
than
50cm
from
the
roof
gutter
[for
ease
of
sensor
replacement].
If
reguired,
the
roof
sensor
can
be
on
a
different
roof
as
the
solar
collector
as
long
as
the
alignment
to
the
sun
is
similarto
the
solar
collector.
For
encapsulated
collector
panels
use
the
manufacturer's
instructions
for
roof
sensor
placement.
The
red
sensor
plug
is
to
be
fitted
to
either
Sensor
1
or
2
port
located
beneath
the
controller.
SENSOR
NOTES:
All
excess
cable
must
be
removed;
coils
of
cable
are
not
permitted
under
any
circumstances
and
must
not
be
tied
to
2A0V
wiring.
If
the
cable
is
to
be
extended
with
non-genuine
cable
a
size
of
1A/020
should
be
used.
Note:
Any
cable
joins
should
be
soldered.
Heat
shrink
is
to
be
used
over
soldered
joints
to
eliminate
moisture
ingress.
EXPANSION
UNITS
The
AQUATEK
has
the
capacity
to
have
an
additional
2
expansion
units
connected
to
it.
Each
Expansion
Unit
has
an
additional
3,
240VAC
Output
sockets
that
are
controlled
via
the
AQUATEK
controller.
Up
to
an
additional
6
power
sockets
can
be
utilised
and
controlled
by
the
AQUATEK
master
controller.
The
Expansion
Units
are
rated
at
either
lOAmps
or
15Amps.
All
3
sockets
of
the
Expansion
Unit
are
rated
the
same.
3
sockets
at
lOAmps
or
3
sockets
at
15Amps.
EXPANSION
UNIT
Ideally,
as
with
all
pool
equipment,
the
Expansion
Unit/s
should
be
installed
out
of
direct
weather.
Find
a
suitable
location
to
mount
the
Expansion
Unit/s,
no
closer
than
3
metres
from
the
water's
edge,
at
a
minimum
600mm
above
ground.
MOUNTING
The
power
cable
is
1.8m
long
and
should
be
plugged
directly
into
a
general
power
outlet,
not
into
an
extension
lead.
Mount
as
per
main
controller.
The
240VAC
Output
Sockets
are
for
eguipment
to
be
controlled
via
the
AQUATEK.
Each
socket
can
be
assigned
via
the
menu
and/or
app.
The
maximum
combined
load
for
all
three
sockets
of
the
module
is
either,
9.9
Amps
/
2370
Watts,
or,
1A.9
Amps
/
3570
Watts.
Please
refer
to
the
unit's
rating
label.
The
15Amp
rated
expansion
unit
must
be
plugged
into
a
15Amp
rated
GPO.
AQUATEK
User
Manual
VI.
2
[002].docx
3
