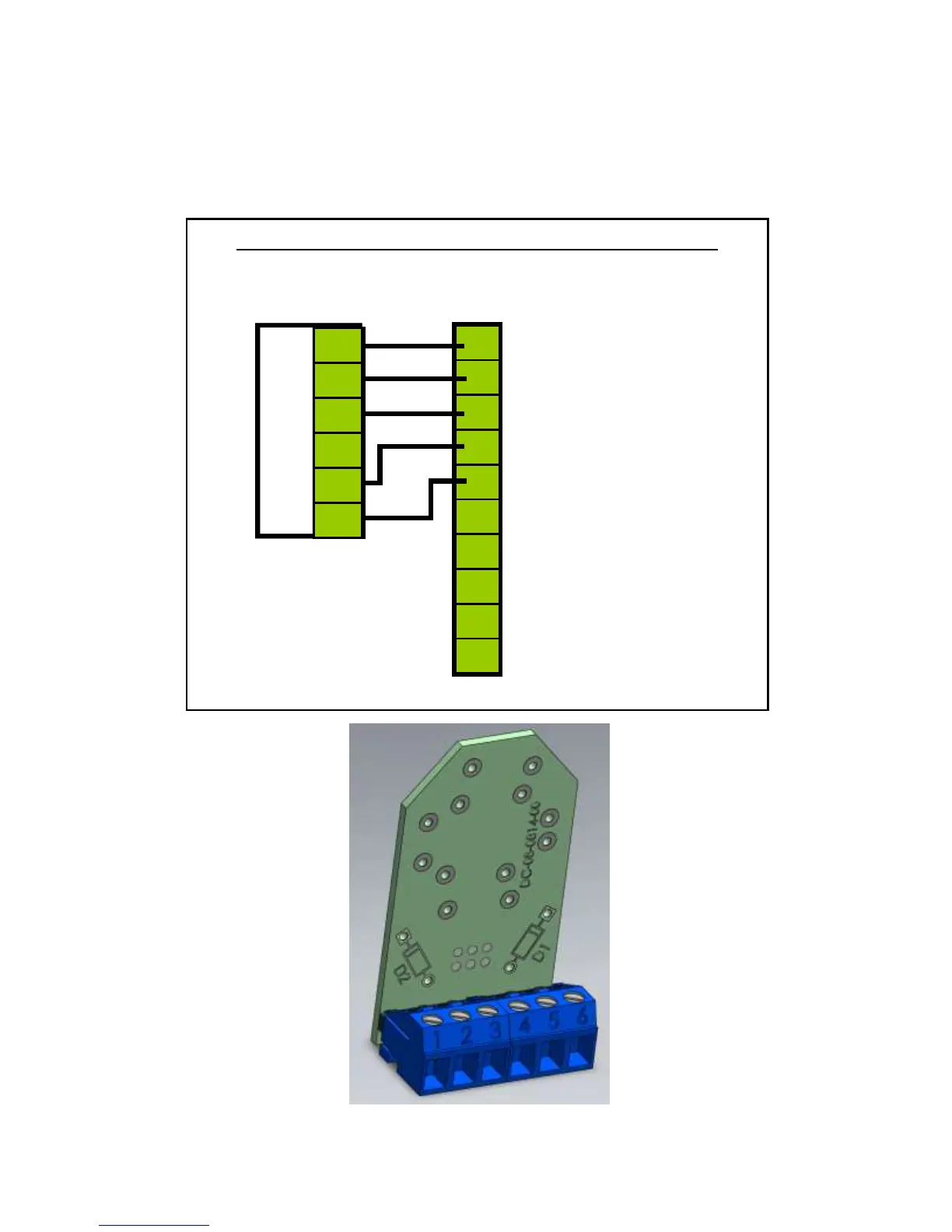

5 POSITION SWITCH WIRING – DC-ONE V3 Control

5PSW1, 5PSW2, 5PSW3 & 5PSW4

x 1 Common +

x 2 Off

x 3 One Way

x 4 Partial Open

x 5 Hold Open

x 6 Reset

x 7 24 VAC

x 8 24 VAC Return

x 9 Common +

x 10 Safety
