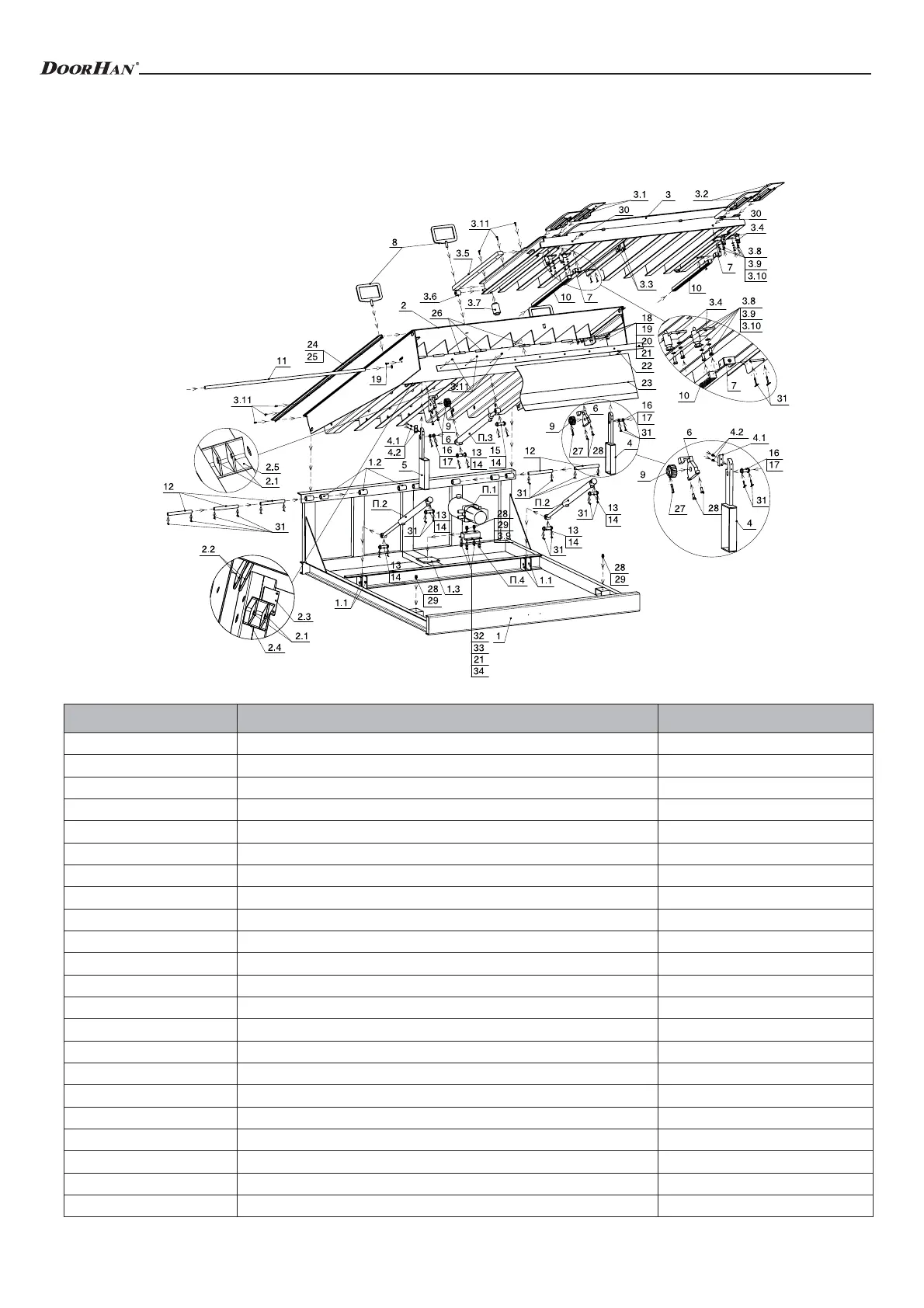

Spare parts for dock leveller lip = 500 mm
For the dock leveler DS and DSI (lip 500 mm)
Pos. Name Article
1 Frame According to the table 1
1.1 Eyelet for 2 hydraulic cylinders HLSL01.102-01
1.2 Bush 27 x 40 x 69 HDLHL02.102
1.3 Pad HLSL01.103
2 Dock leveler cover According to the table 2
2.1 Eyelet for 2 main hydraulic cylinders on the dock leveler HLSL01.201-01
2.2 Eyelet for folding leg DSI22514
2.3 Dock leveler plate DS1.2011
2.4 Corner 100 x 100 x 7 mm (L = 120 mm) METU23
2.5 Corner 100 x 100 x 7 mm (L = 215 mm) METU23
3 Lip According to the table 3
3.1 Left lip segment assembly DSI3.31
3.2 Right lip segment assembly DSI3.32
3.3 Eyelet for large hydraulic cylinder DS3.203
3.4 Fixing mechanism of lip segment assembly DS2532
3.5 Gasket DS25101
3.6 Thrust roller DS25102
3.7 Pressure roller DS25103
3.8 Bolt M10 x 25 for wrench 14 with full thread DHM0104-1
3.9 Washer 10 x 20 DHM0302
3.10 Split washer 10 DHM0308
3.11 Self tapper 6,3 x 25 mm on metal for doors panel 14019
