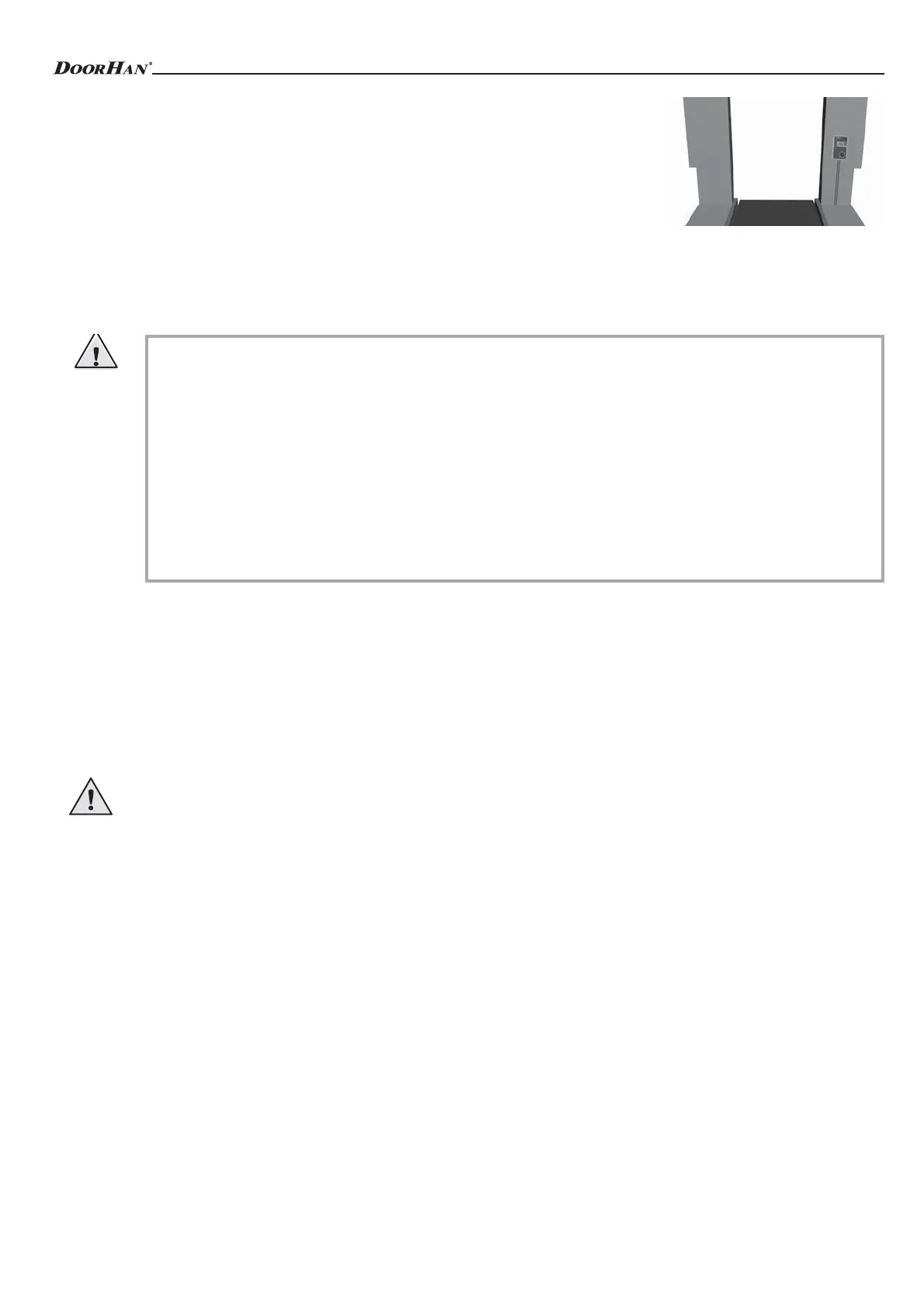

CONTROL UNIT INSTALLATION
Control unit shall be installed so, that the dock leveller operator is always able to keep
under control the operation of the dock leveller.
8. OPERATION
Connect the control unit to the dock leveller following the instructions given in the control unit manual. Complete 4–5 full
opening/closing cycles, make sure that the dock works properly.
When operating the dock leveller, do observe the following rules:
Never operate the dock leveller when persons, goods are on it or in front of it.
The lip of the dock leveller must be placed in the truck body in full width and has sufficient support at least 85 mm.
Do not exceed declared load capacity. Load capacity agrees with total weight of the forklift with load and the driver.
It is strictly forbidden to operate the dock leveller with the load.
When not operated (after loading/unloading has been completed), the dock leveller should be back in rest position.
When loading/unloading, do not switch off control unit.
Emergency stop function integrated into the main switch. Use this function ONLY in case of emergency. It
may not be used during loading/unloading, as the dock leveller is unable to follow the vertical movements
of truck which could lead to damage of hydraulic system.
Forklifts are prohibited to move along the platform at a speed of more than 5 km/h.
Place the truck with door open correctly in front of dock leveller. Fix the track to avoid it’s unwanted departure.
OPERATION
Turn the main switch to «I» position.
Check that the control unit power indicator lights, then press up button for lifting of dockleveler.
Keep the button pressed until complete lifting of DL. Then press button lip pull out and keep it pressed untill the extension of lip
becomes required length.
Press down button briefly and wait while the lip will come down to the truck body.
WARNING! Don’t switch off power while dockleveler is being used. Only in case of emergency. Emergency stop
function integrated into the main switch. Use this function ONLY in case of emergency. It may not be used during
loading/unloading, as the dock leveller is unable to follow the vertical movements of truck which could lead to damage
of hydraulic system.
RETURN TO THE INITIAL POSITION
After finish of loading/unloading dock leveler has to back to initial position.
Press up button and lift dockleveler approx. 100mm higher from truck body.
Press and keep lip pull in button while the lip is not retract completely. Press down button briefly, dock leveler descend to park
position position. Turn off main switch to “0”.
EMERGENCY STOP
In case of emergency turn the main switch to «0»
To resume dock leveler operation, make sure that the power is on, there is nobody under the deck or close to dockleveler movable
parts. Press up button briefly.
