Hydraulic drive
Pos. Name Article
5.1 Hydraulic pump TPS32450001
5.2 Lifting cylinder XE523000090HFR1
5.3* Lip cylinder (L = 600) HFR1250600
5.3* Lip cylinder (L = 1 000) XE523000050HM81
5.4 Mounting bracket for hydraulic pump HDLHLD06
5.5 Nipple 1/4x3/8 RV301.0604
5.6 Bolt M8x25 DHM0131
5.7 Hydraulic hose L = 1 500 mm V0014-1500
5.8 Hydraulic hose L = 2 000 mm V0014-2000
5.9 Split washer 8 x 16 DHM0301
5.10 Bolt M10 x 25 DHM0104
5.11 Split washer 10 DHM0308
5.12 Split washer 8 DHM0305
5.13 Nut M8 DHM0210
APPENDIX

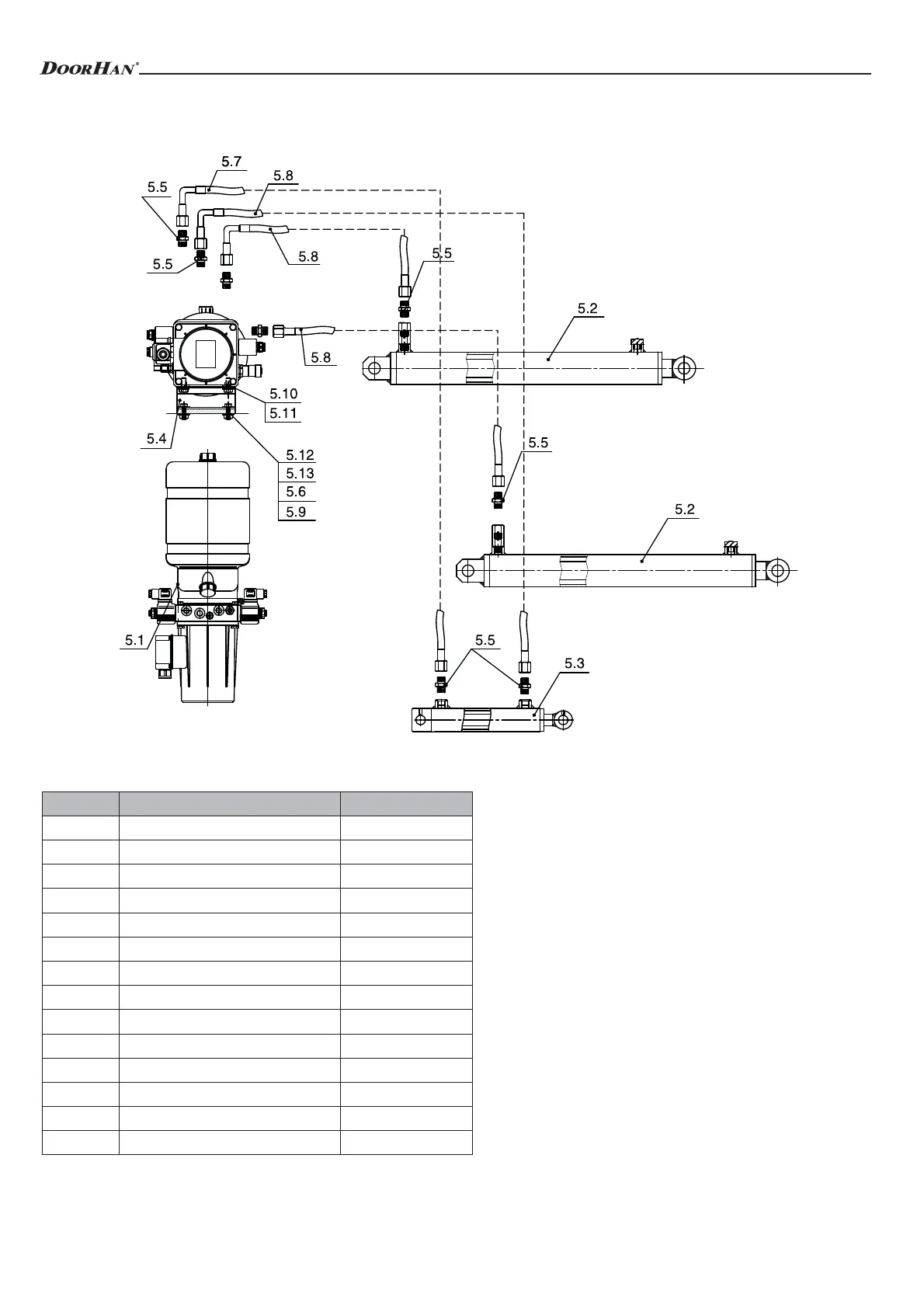

DKHL010102-6 Hydraulic drive for the dock leveler with telescopic lip L = 1 000 mm
DKHL010102-7 Hydraulic drive for the dock leveler with telescopic lip L = 500 mm
* Selected depending on the length of the dock leveler lip
APPENDIX 2 Hydraulic components for dock leveller series
