DoorHan DS Series User Manual

7
1
2 2а

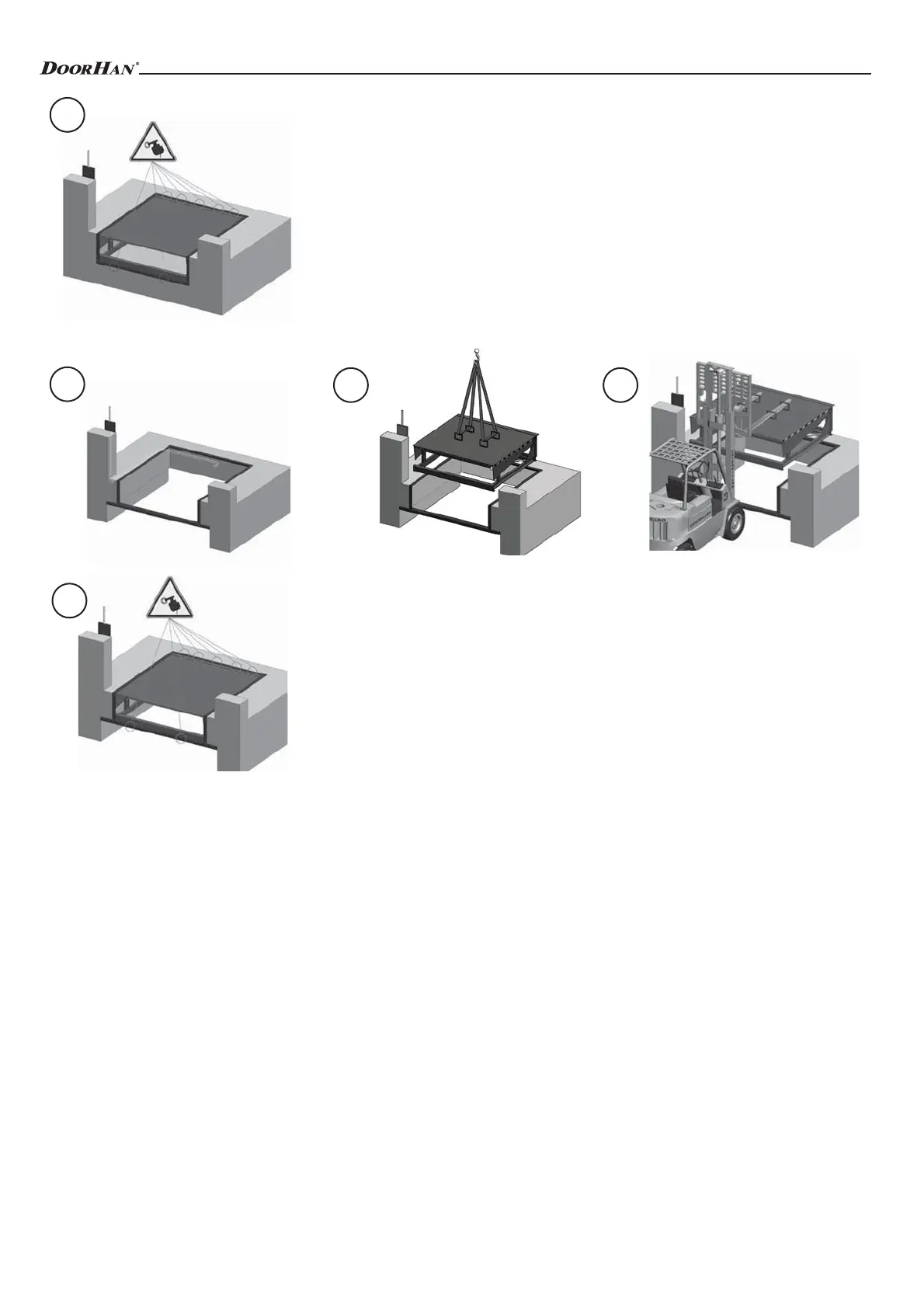

EMBEDDED MOUNTING WITH TAIL LIFT ACCESS
3
3
1. Stretch the connection wiring through the tube.
2. Install the dock leveler so that the rear corner of the dock leveller tightly adjoined to the rear upper fitting on the pit.
3. Longitudinal gaps between the pit and leveler should be 10–15 mm width.
4. Weld joints on the platform with the rear and front fittings on the pit as shown in Figure 3, 3a.
INSTALLATION
