9
WARNING! If no safety devices are connected to the “Stop” terminal then set a jumper between this contact and the com-
mon (GND) contact.

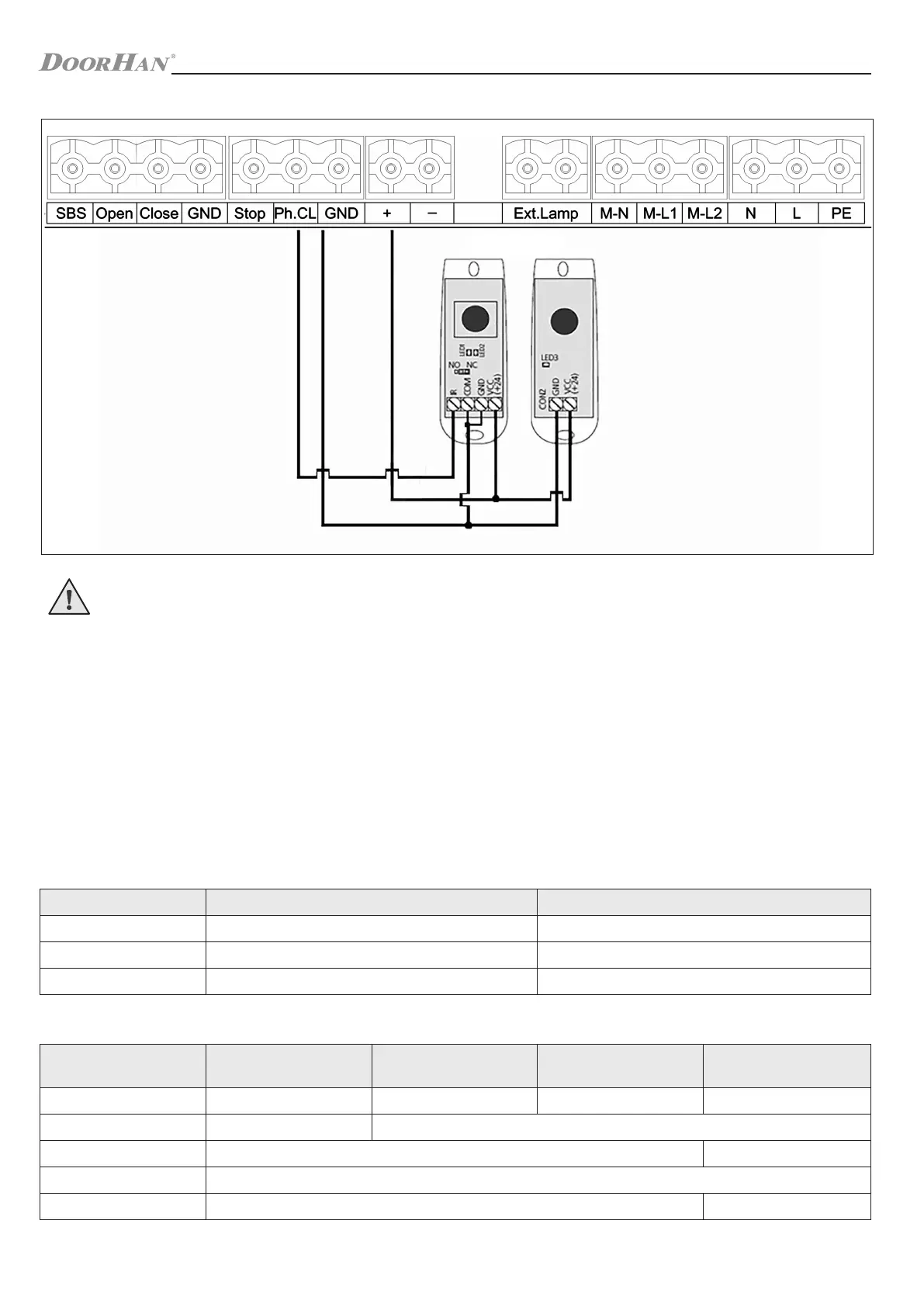

1.3. PHOTOCELLS WIRING DIAGRAM
OPERATOR PROGRAMMING
2. OPERATOR PROGRAMMING
2.1. CONTROL BOARD OPERATING MODES
Selection of operating mode is performed with the “P” button. Number of the “P” button clicks corresponds to the selected
operating mode number:
one press — operating mode #1;
two presses — operating mode #2;
three presses — operating mode #3.
The selected operating mode is displayed by the “Program” indicator, the number of blinks corresponds to the number of the
set mode.
Table 2.1. Control board operating modes
Operating mode Opening of rolling shutter Closing of rolling shutter
1 Pulse pressing of the button Pulse pressing of the button
2 Press and hold the button Press and hold the button
3 Pulse pressing of the button Press and hold the button
Contact
closure
Rolling shutter
is opening
Rolling shutter is stopped
after opening
Rolling shutter is stopped
after closing
Rolling shutter
is closing
S-B-S Stop Closing Opening Stop
Open — Opening
Close Closing —
Stop Stop
Ph.CL — Closing
Table 2.2. Terminals operation logic
Photocell-N
