Class of Operation Model 6004 - UL 325 Class I
Type of Gate Vehicular Swing Gates Only
Gate Operator Voltage 24 VDC
Current 3 Amps
Motor Torque 300 Nm
Max Gate Weight 300 Lbs.
Max Gate Length 8 Feet
Cycles Per Hour 20 Per Hour with AC connected (Cycles will vary with battery power ONLY)
Speed 90° in approximately 18 seconds
Control Box Types • 115 VAC 60 Hz Single Phase Input Power - 24 VDC Output Power to Gate Operators
• 24 Volt Solar Input Power - 24 VDC Output Power to Gate Operators
6004 SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.

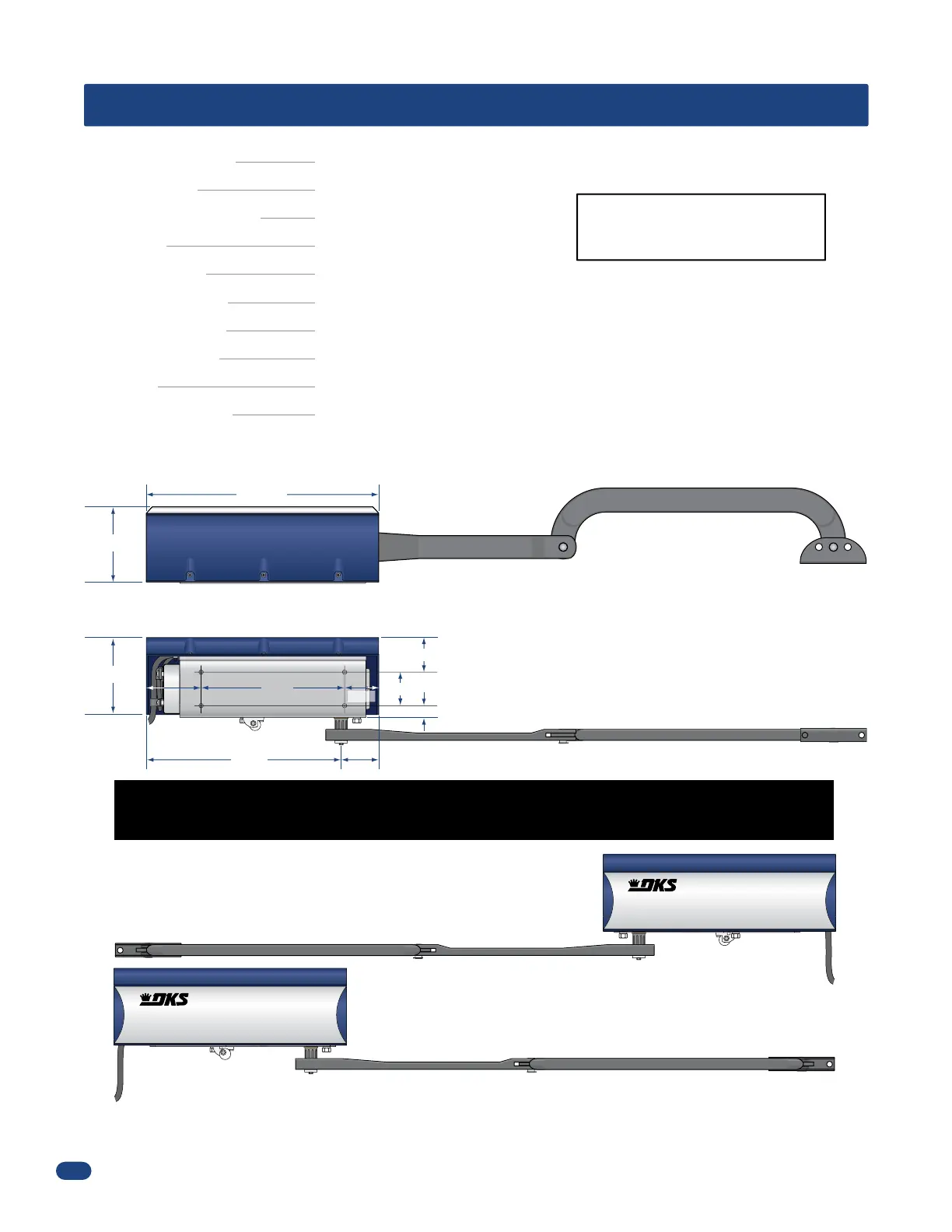

16 1/4”
Gate
Attachment
Bracket
Manual Release
5 1/4”
5 1/4”
2 3/8”
2 1/4”
9 7/8”
4”
3/4”
2 7/8”
13 3/8”
2 1/2”
Drive Arm
Linking Arm
Top View
Right Side Position
Back View
Right Side Position
Front View
Left Side Position
Front View
Right Side Position
DOORKING
Mounting Holes
DOORKING
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices in EACH
entrapment area.
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
