Doosan AD180TI - Back Side; Digital Panel Part Names, Operation and Settings; Front Side

HY-DP-MANUAL-001 8

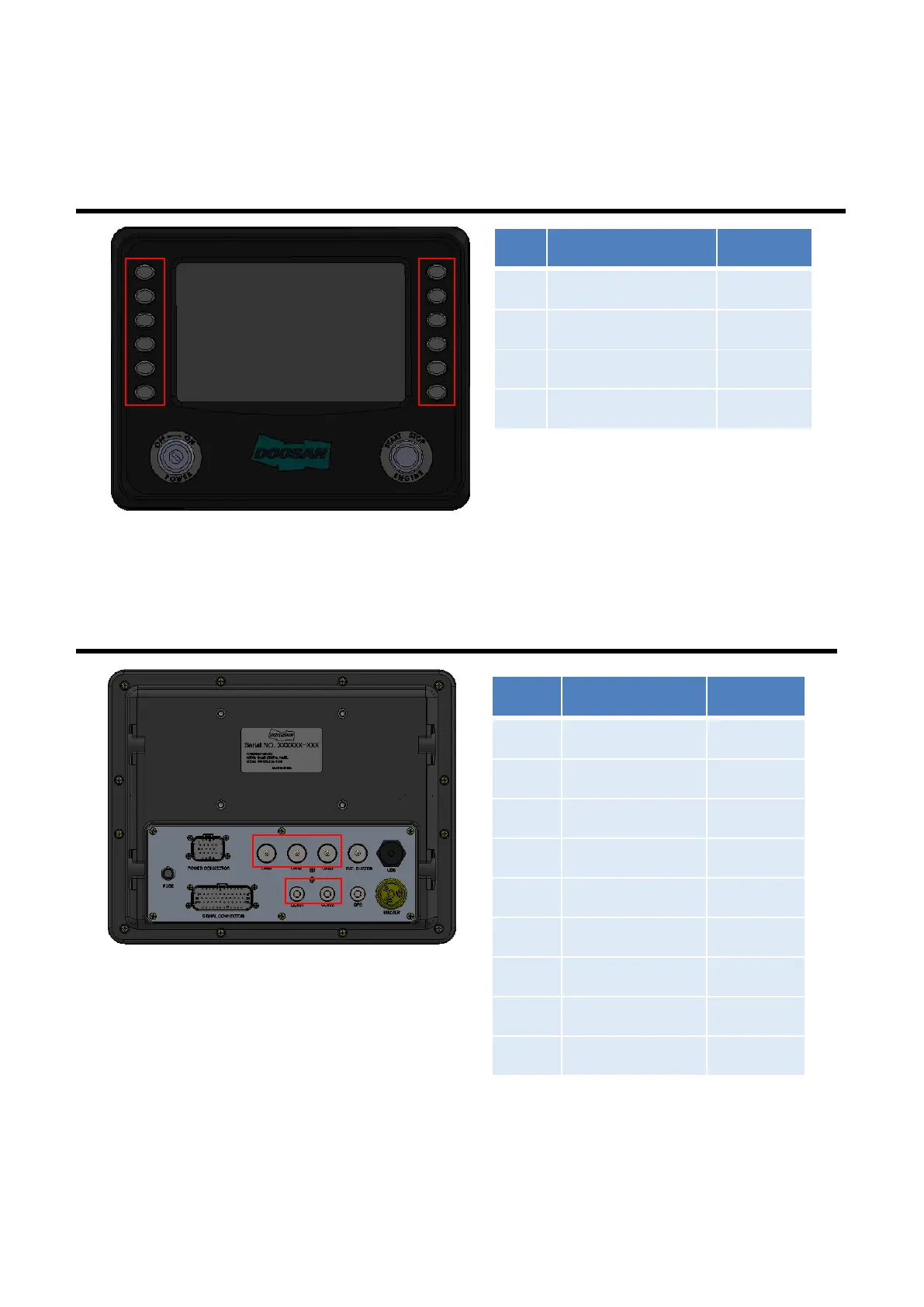

3.1 Front Side
No.
Name
Reference
①
LCD
-
②
Function Keys
Page 14
③
Key Switch
Page 12
④
Start/Stop Button
Page 13
No.
Name
Reference
①
Power Connector
Page 9
②
Signal Connector
Page 10
③
CAN
Page 11
④
External Buzzer
Page 11
⑤
USB
Page 12
⑥
Fuse
Page 12
⑦
CCTV (Optional)
Page 11
⑧
GPS (TBC)
-
⑨
Internal Buzzer
Page 12
3.2 Back Side
②
②
①
③
④
[Fig. 3-1]
[Table 3-1]
①
②
③
⑤
④
⑥
⑦
⑧
⑨
[Fig. 3-2]
[Table 3-2]
3. Part Names, Operation and Settings
