Maintenance Section
-114-

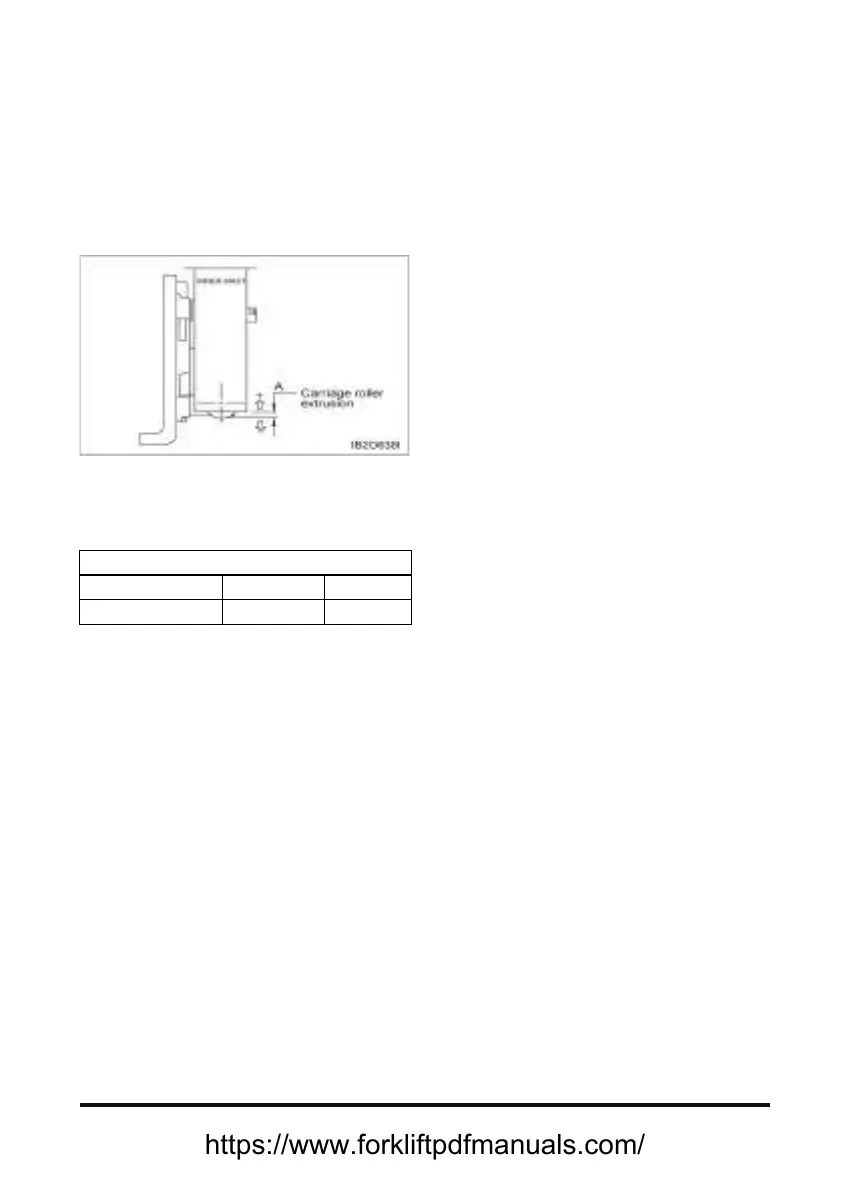

Carriage Roller Extrusion - Check,
Adjust
1. Set the mast vertical.
2. Lower the carriage completely.
3. On full free lift and full free triple lift models, the
bottom of the inner mast must be flush with the
bottom of the stationary mast.
4. Measure the distance from the bottom of the inner
upright to the bottom of carriage bearing.
5. The measurement (A) must be as follows in Chart
below.
Height of carriage roller extrusion (A) [unit : mm]
STD mast FF mast FFT mast
-7 43 43
