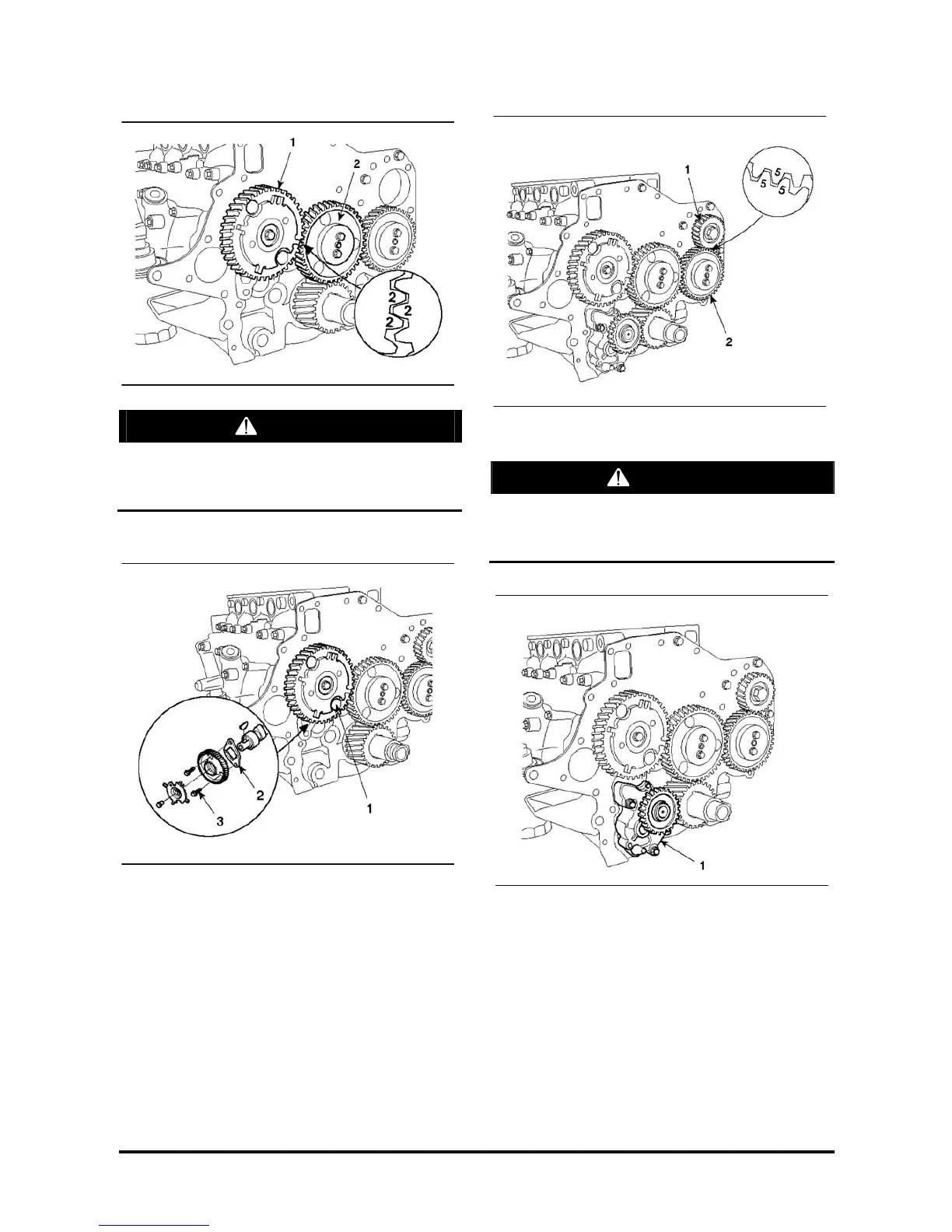

CAUTION
When installing, align the timing mark “2” of
camshaft gear A (1) with the timing mark “2” of
idler gear A (2).
e. Install the thrust plate (2) mounting bolt (3)
through the hole of camshaft cam plate hole (1).
6. Install the supply pump gear.
CAUTION
When installing, align the timing mark “5” of
supply pump (1) with the timing mark “5” of idler
gear B (2).
7. Install the oil pump gear (1).
