Maintenance Section
229
Every 500 Service Hours or 3 Months
You must read and understand the warnings and instructions contained in the Safety section of this manual,
before performing any operation or maintenance procedures.

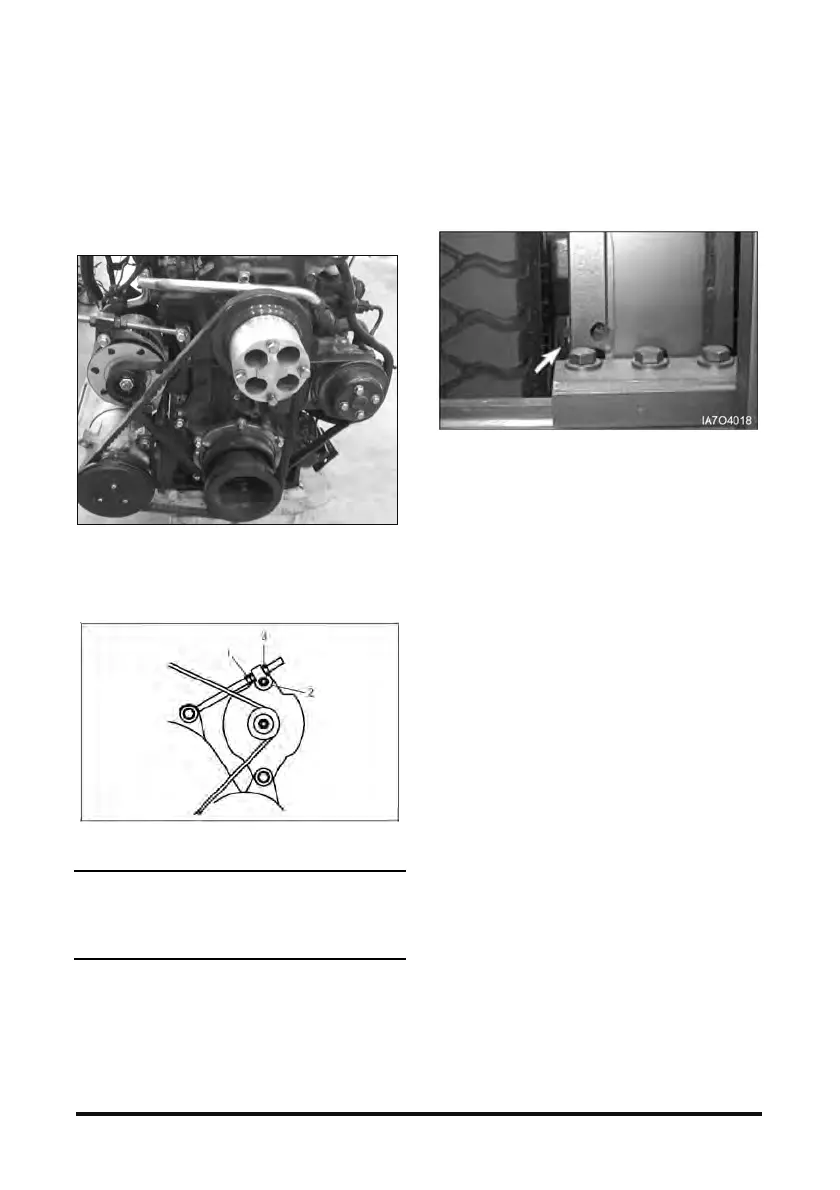

Belts (Diesel E/G Only) - Check,
Adjust
Typical Example Diesel (G2 D34)
1. Check the condition and adjustment of the belt.
Correct adjustment allows 10 mm (3/8 inch)
deflection under 110 N (25 lb) of force.
Typical Example
NOTICE
Failure to loosen the alternator mounting bolt (2) will
cause excessive stress and break the alternator
mounting ear.
2. To adjust the alternator drive belt, loosen
adjusting bracket nut (1), mounting bolt and nut
(2) and nut (3). Move the nut (1) in or out as
required. Tighten the mounting bolt and nut (1, 2,
3).
Mast Hinge Pins - Lubricate
Typical Example
1. Lower the forks and tilt the mast forward.
2. Lubricate the two fittings for the mast hinge pins,
one on each side of the mast.
