Maintenance Section
225

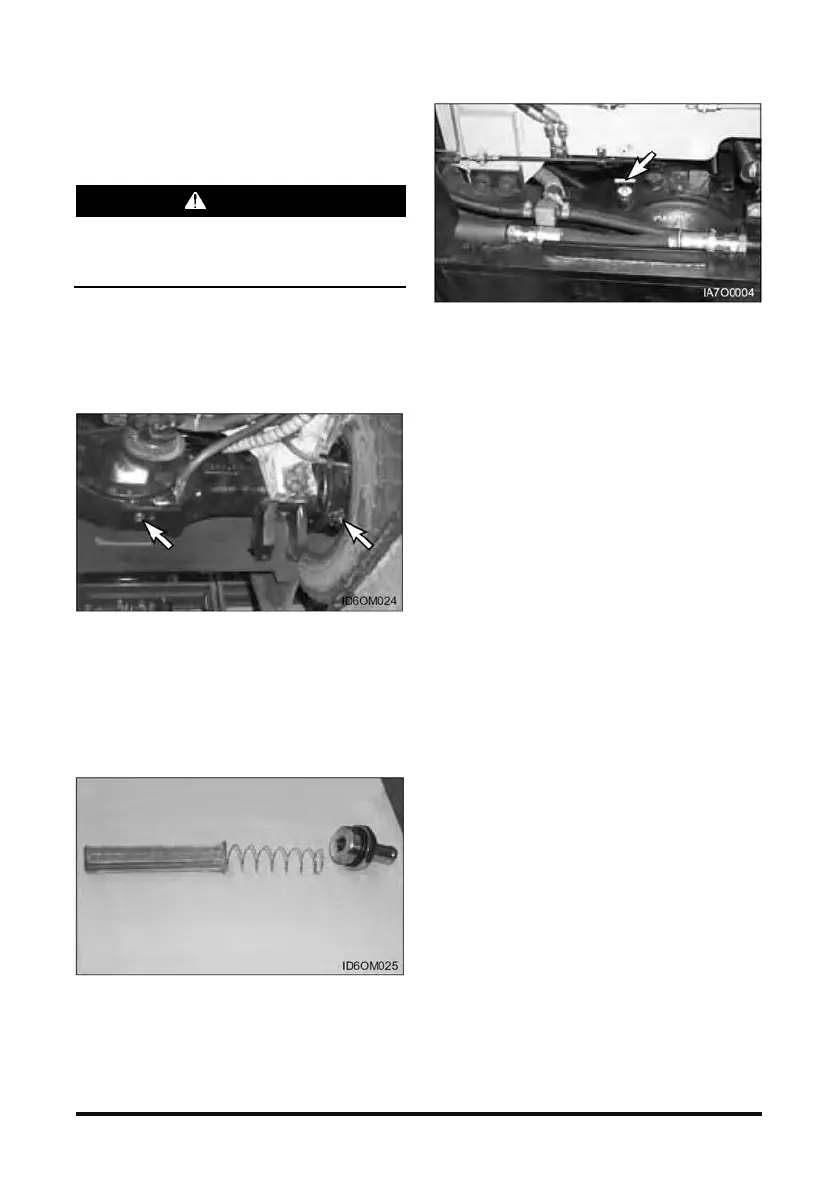

Drive Axle Oil - Change
Park the lift truck on a level surface, parking brake
applied, transmission in neutral.
WARNING
Hot oil and components can cause personal
injury. Do not allow hot oil or components to
contact skin.
Oil Cooled Disc Brake (OCDB) Type
Park the lift truck on a level surface. Apply the
parking brake. Place the directional control level in
NEUTRAL and stop the engine.
1. Remove three drain plugs of the drive axle
housing and both wheel ends. Allow the oil to
drain into a suitable container. Clean the
magnetic drain plugs. Check O-ring seal and
replace if necessary.
2. Install the drain plug.
3. Remove strainer assembly.
4. Wash the strainer assembly in clean,
nonflammable solvent and dry it.
5. Install the strainer assembly and reconnect the
hose and harness.
6. Remove the dip stick/filter cap. Fill the drive axle
housing with oil. See "Lubricant Specification -
Drive Axle Oil" and "Refill Capacity".
7. Start the lift truck. With the engine at low idle,
place the directional control lever to the
NEUTRAL.
8. Maintain the oil level between lower mark and
upper mark on the dip stick/filter cap.
9. Install the dip stick/filter cap.
To Next Page
