CPN PART NO.
FOR
ORDERING
• 18 ValvePin ............................ 88099239 PH2–50918
19 Cylinder.............................. 21867353 PH2–50919
20 Piston ................................. 56752041 PH2–50920
21 Nozzle ................................ 21867346 PH2–50921
25 Handle Lock Pin ................ 88099247 PH2–50925
28 Deflector ............................ 88098652 PH2–50928
29 Retainer ............................. 88102116 PH2–50929
• 30 SpacerRing
1 mm .................................. 88098702 PH2–50930
1.5 mm ............................... 56746910 PH2–50931
* Nameplate ......................... 22112981 -
CPN PART NO.
FOR
ORDERING
1 Grip Handle ....................... 80028442 PH2–50901
2 Throttle Lever .................... 88100904 PH2–50902
• 3 ThrottleLeverPin .............. 88098249 PH2–50903
• 4 ThrottleValveFace ............ 88099171 PH2–50904
5 Throttle Valve Seat ............ 88099189 PH2–50905
• 6 ThrottleValveSpring ......... 88099197 PH2–50906
7 Valve Stopper .................... 88099205 PH2–50907
• 8 ThrottleValveStem ........... 88099213 PH2–50908
9 Throttle Valve Stem Bush .. 88099221 PH2–50909
10 Inlet Bushing ...................... 88100912 PH2–50910
• 12 Valve .................................. 88100938 PH2–50912
13 Valve Box ........................... 25012543 PH2–50913
• IndicatesTune-UpKitPart
* Not Illustrated
PARTS
Models DCT2PS, DCT3PS and DCT5PS Pickhammers are designed for breaking concrete and other demolition work in
construction applications.
HOW TO ORDER A PICKHAMMER
Model Impacts/min. Piston Stroke
in mm
DCT2PS 2850 2 50
DCT3PS 3850 1–1/2 37
DCT5PS 2550 2–3/8 60

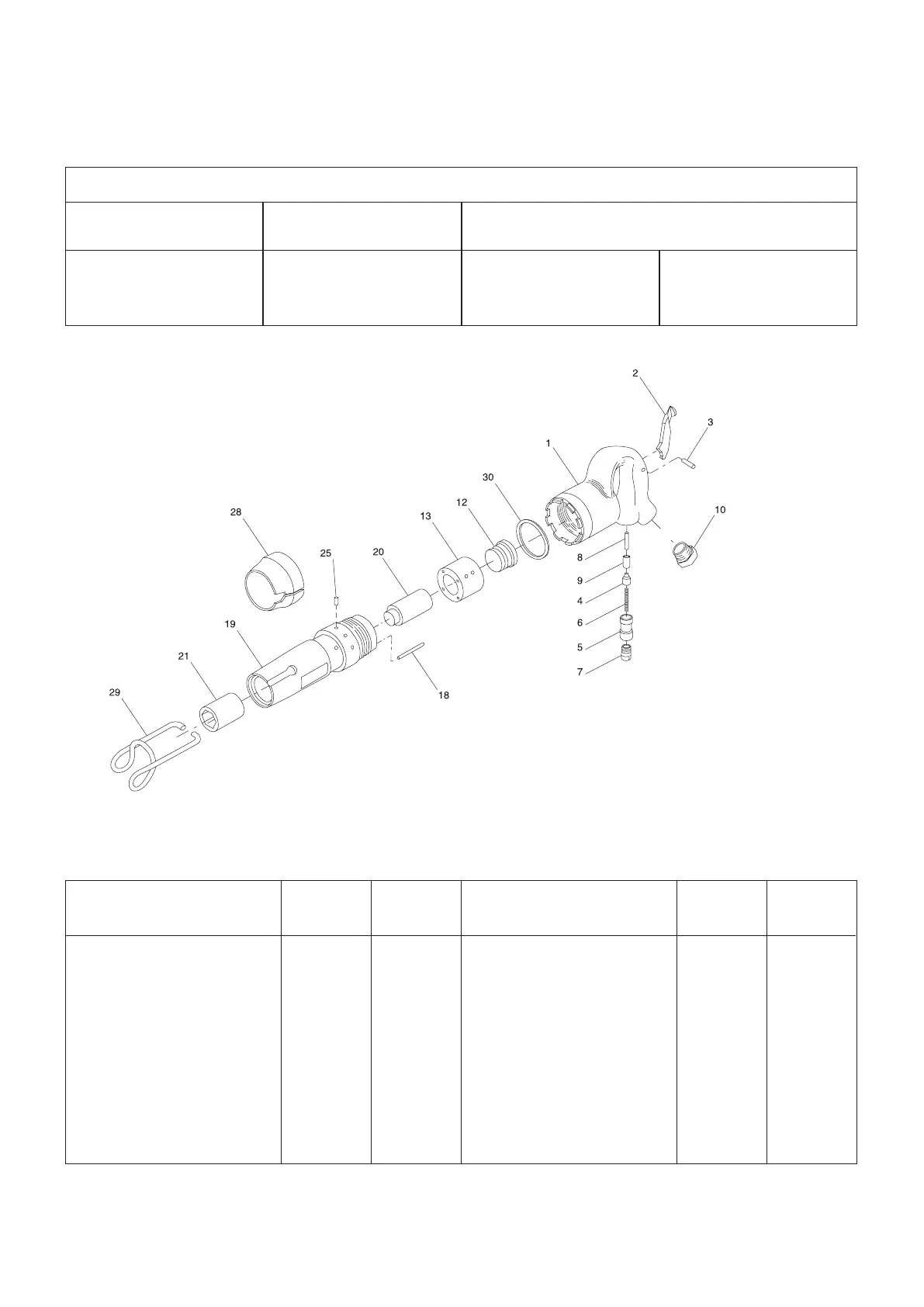

MODEL DCT2PS PICKHAMMER
(Dwg. TPB996)
