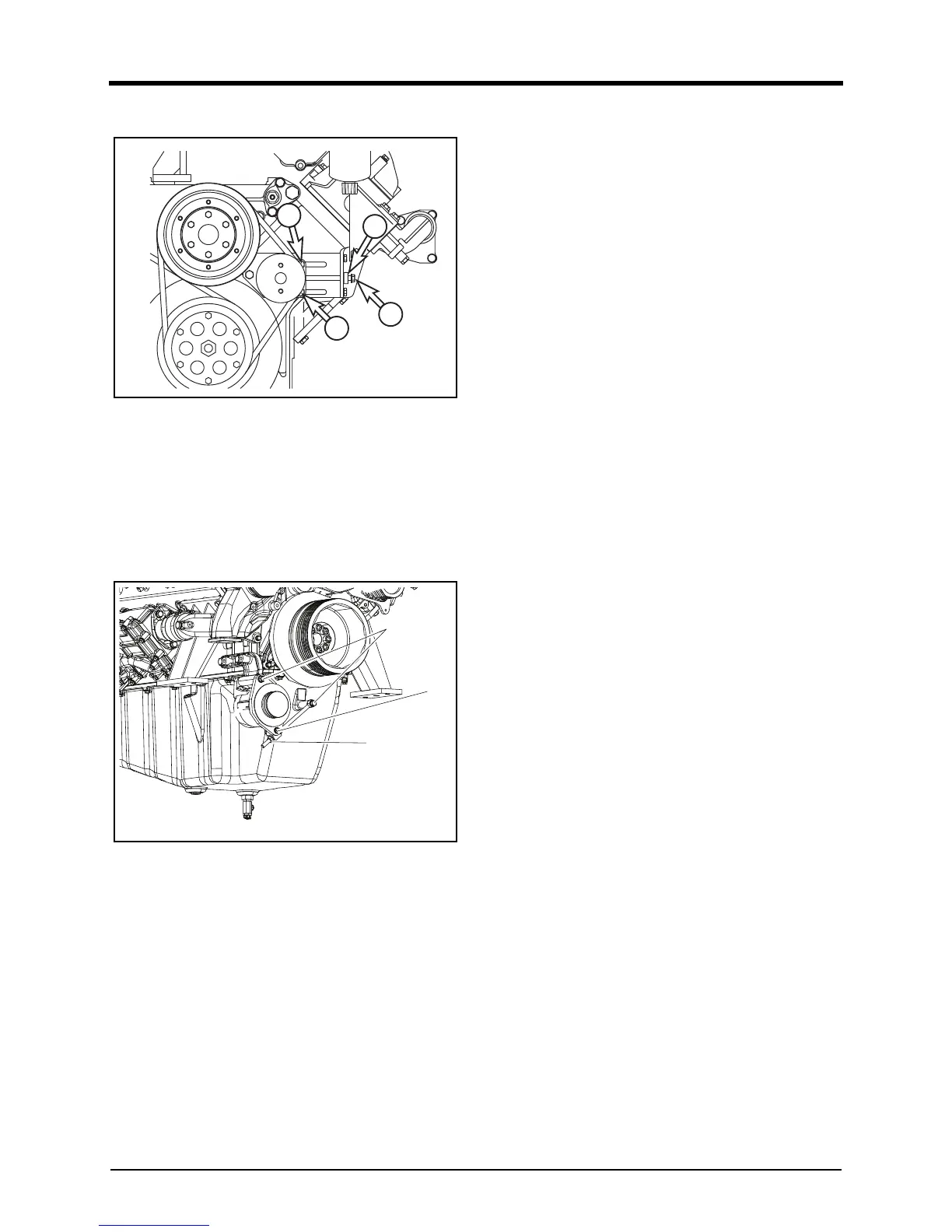

5. Tension adjustment and V-belt replacement
DV2213050B
1) Loosen the fixing bolt(1).
2) Loosen the lock nut(2).
3) Adjust the bolt(3) until belt have correct tension.
4) Tighten the fixing bolt(1) and nut(2).
5) To replace the V-belt, loosen the fixing bolts(1) an
d
t
he lock nut(2) and push the tension pulley inward
s
b
y turning the adjusting bolt(3) counter clockwise.
DV2213055A
6) Loosen the mounting bolts(B).
7) Loosen the lock nut(A).
8) Adjust the nut(C) until the belt tension has correct
tensions.
9) Retighten the lock nut(A) and the mounting bolt(B).
10)To replace the belt, loosen the lock nut and push t
he
a
lternator inwards.
