G424F(FE) Service Manual Chapter 3. Engine Mechanical System 35

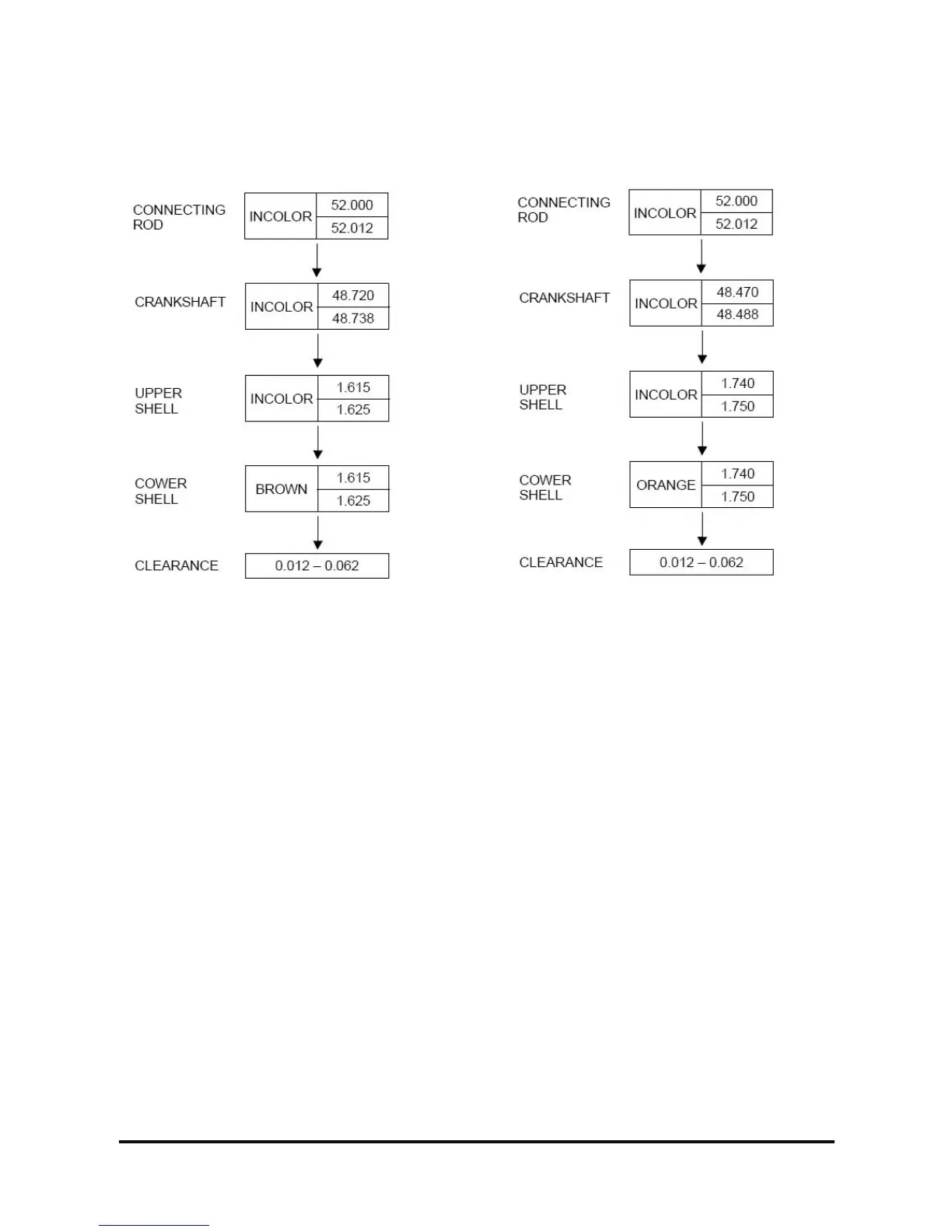

CONNECTING ROD BEARINGS CONNECTING ROD BEARINGS

0.25 UNDERSIZE 0.50 UNDERSIZE
