G424F(FE) Service Manual Chapter 3. Engine Mechanical System 68

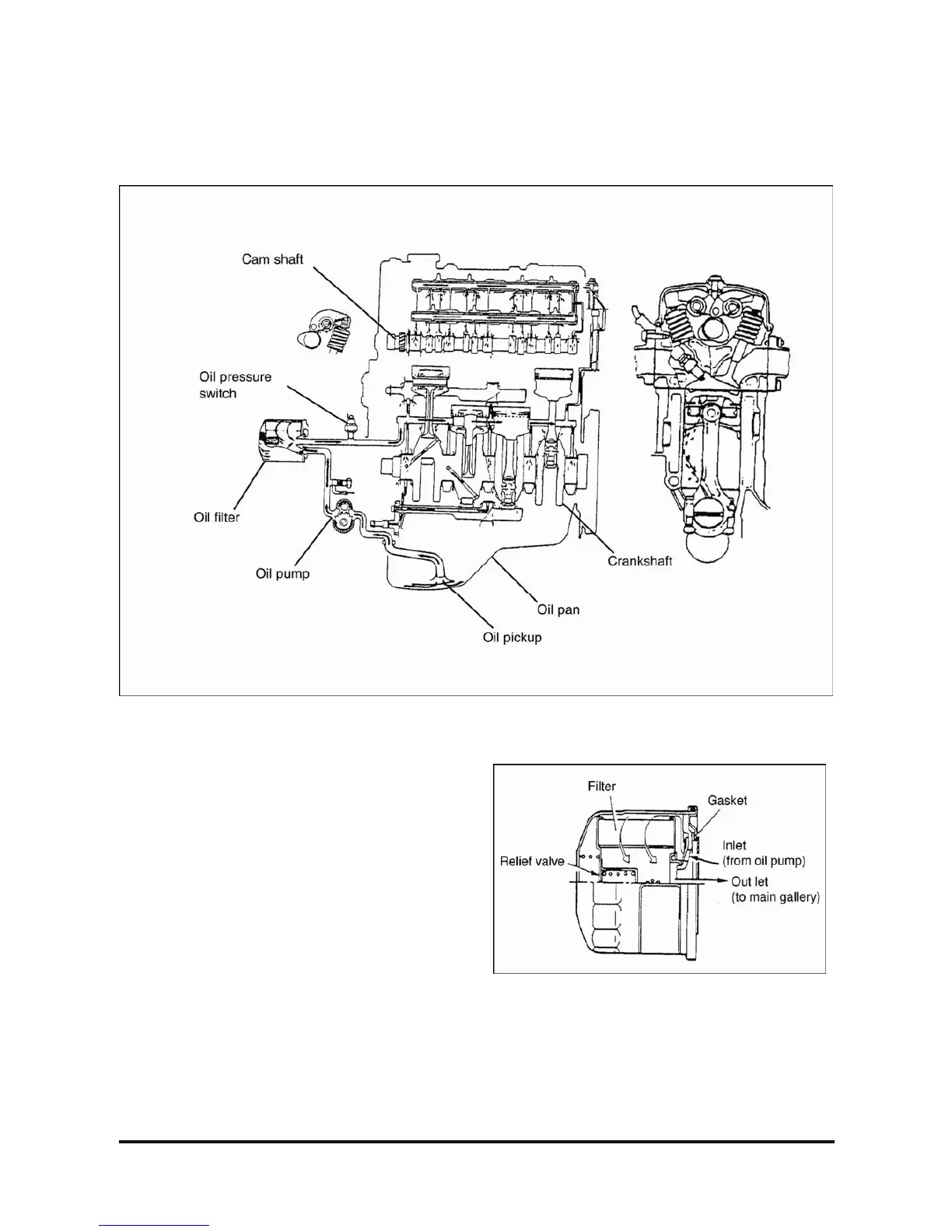

Lubrication System
General Description
Lubricating system is the full-flow filtered pressure-
feed oil system and the oil reserved in the oil pan is
fed with pressure to each part of engine. After the
oil pressure is adjusted through the relief valve, the
oil is fed to the cylinder blocks and cylinder head.
In the cylinder head the oil is forcibly fed to the
camshaft journals, rocker arm pivots and further
cam surfaces.
OIl Filter
