5
Operating and locking device elements Summary of control elements type P/S/A
This depends on the type of the emergency stop switch.
The revolving door then continues the current program
setting.
Program switch
The program switch is located inside the building on the
front jamb or mounted separately within sight of the
revolving door. A key or code secures the program switch
against unauthorized access.
The following functions may be available with the pro-
gram switch depending on order options:
A program switch with code entry will automati-
cally lock itself 60 seconds after the last entry.
3 Operating and lock-
ing device elements
3.1 Summary of control elements
type P/S/A

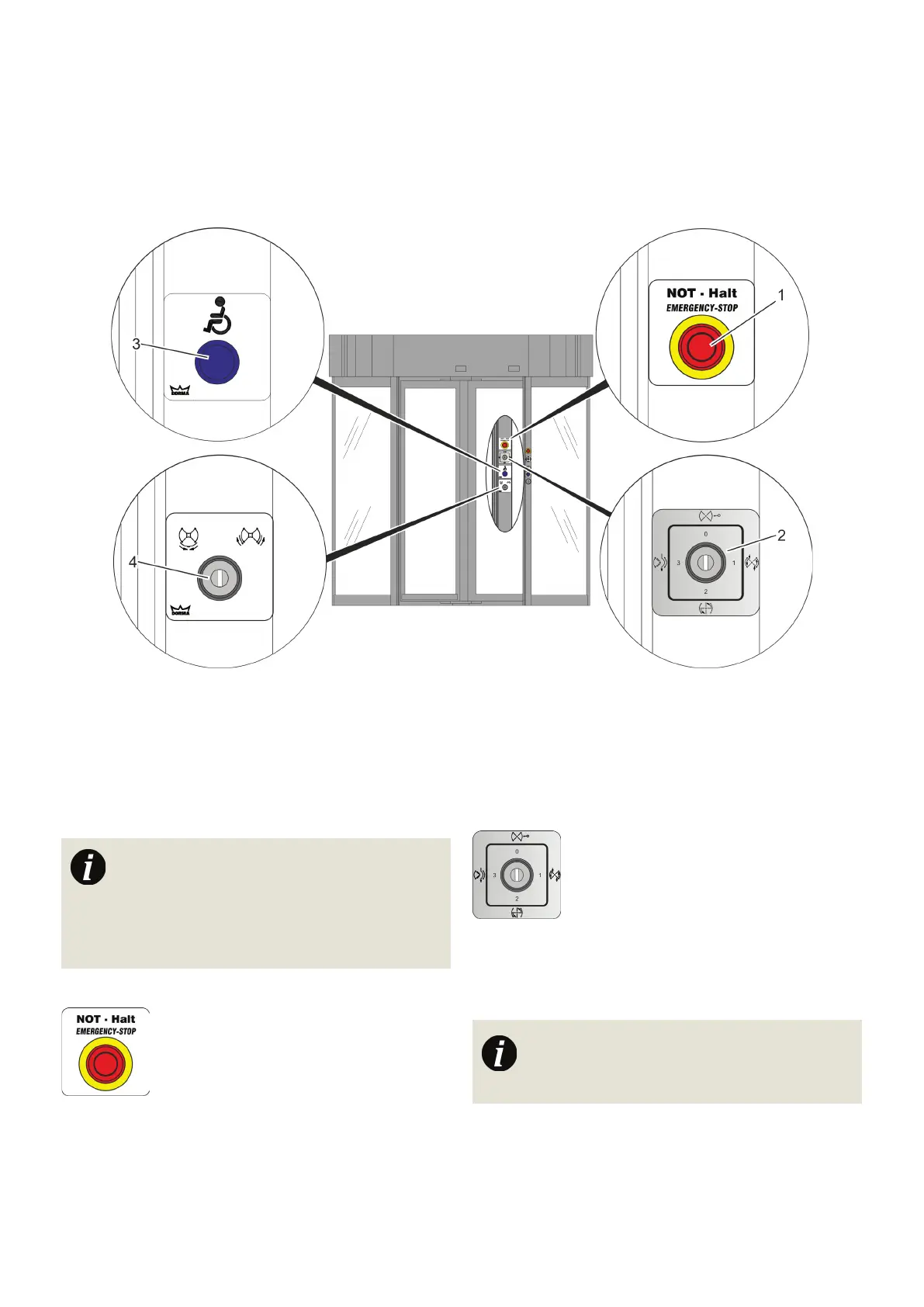

Fig. 1 Summary of control elements
1 Emergency stop switch (inside and outside*)
2 Program switch (inside)
3 Disabled access pushbutton * (inside and out-
side)
4 Dead man’s switch for electric night shield*
(inside, type P/S/A and M)
Emergency stop button
An emergency stop switch is located in the building interi-
or on the front jamb and, depending on the order option,
also on the building exterior.
When the emergency stop is activated, the revolving door
stops immediately and the drive is disengaged. It is then
possible to turn the door wings manually.
The emergency stop switch is reset by pulling or turning.
The availability of some of the described options
depends on the type of revolving door you se-
lected or on the chosen options. These functions
/
options are marked in the document with an
asterisk (*).
