PK3700 2023-05-01
4
W2
V1
W1
14
12
15
16
13
11
14
17
9
8
7
22
6
10
19
18
1
2
3 21
5
20
23
V2

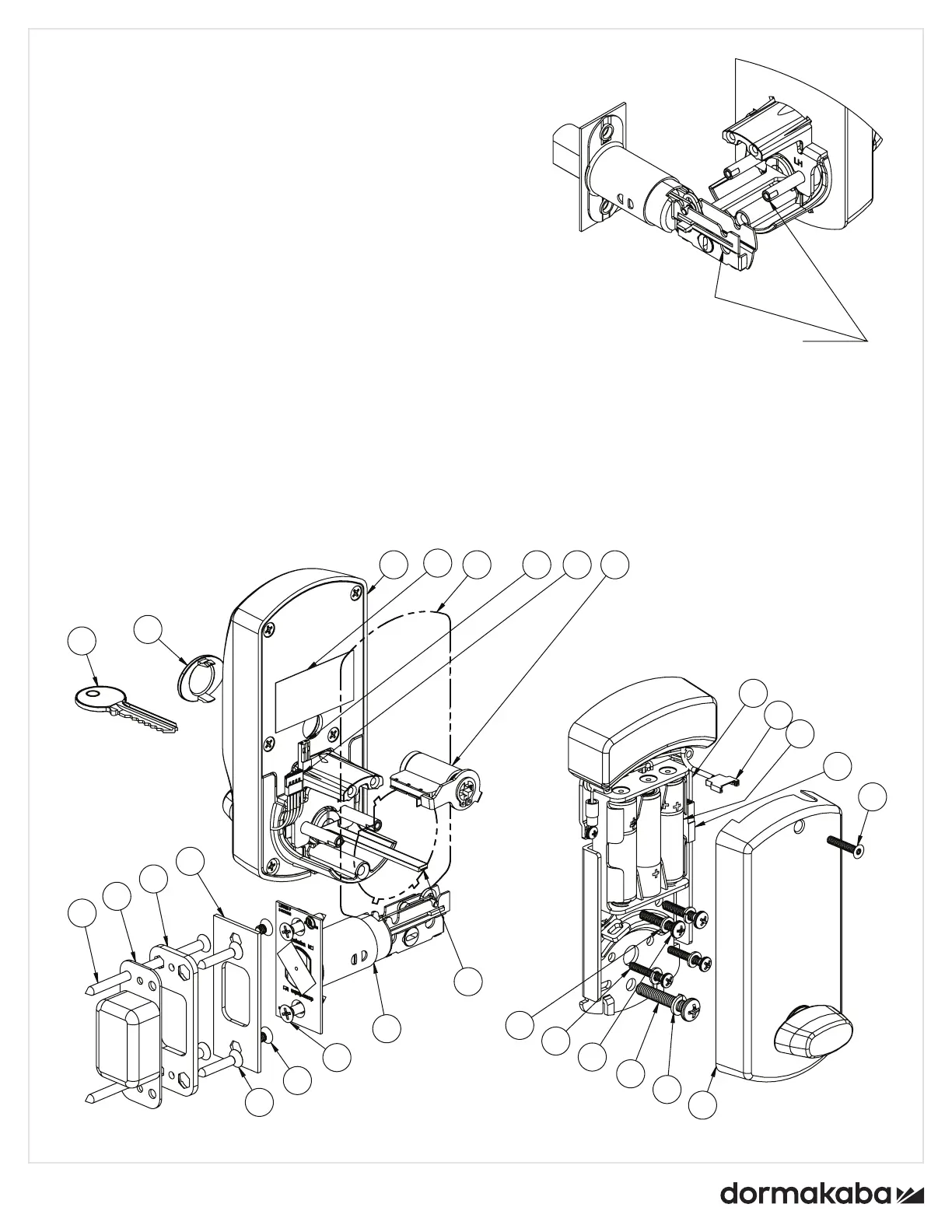

When installing the lock, please carefully
slide post through deadbolt holes
Parts list
1. Outside Housing Assembly (1)
2. Bar Code Label (1)
3. Outside Housing Gasket (1)
4. Dead Bolt (1)
5. Inside Trim Assembly (1)
6. Machine Screw, Pan Head, SS, PH #3, 12-24 (1)
7. Machine Screw, Pan Head, ZP, PH #2, 8-32 (2)
8. Machine Screw, Pan Head, ZP, PH #2, 6-32 (2)
9. Split Lock Washer, No. 8, SS 18-8 (2)
10. Split Lock Washer, No. 12, SS (1)
11. Machine Screw, Flat Head, Brass, PH #2, 8-32 x 7/32” (2)
12. Dust Box (1)
13. Striker Plate (1)
14. Wood Screw, PH #2, #8 x 1” (4)
15. Wood Screw, PH #2, #8 x 3” (2)
16. Reinforcing Plate (1)
17. Tail Piece Door 1 3/8” to 2” (1)
18. Cap (1)
19. Override Key (May be shipped separately) (1)
20. Battery Cell, AA Alkaline (3)
21. Key Cylinder (May be shipped separately) (1)
22. Inside Cover (1)
23. Machine Screw, Flat Head, SS 304, PH #2, 6-32 x .750 (1)
Lock diagram
