Dormakaba SafeRoute STL-G Series User Manual

2
STL-G/STL-G NT
2020-07
WN 059727-45532
dormakaba Mounting instructions Product description
3 Product description
The STL-G door terminal is a component in a
SafeRoute® system. The STL-G contains the DCW®
component emergency button SCU-TL and a key
switch ST. The installation and connection of other
components is possible. Only components and parts
approved by dormakaba for a SafeRoute® system
may be used (see approved components’ declaration
of conformity).
With a license card inserted, the SCU-TL emergency
button is a SafeRoute® Control Unit in a SafeRoute®
escape route security system.

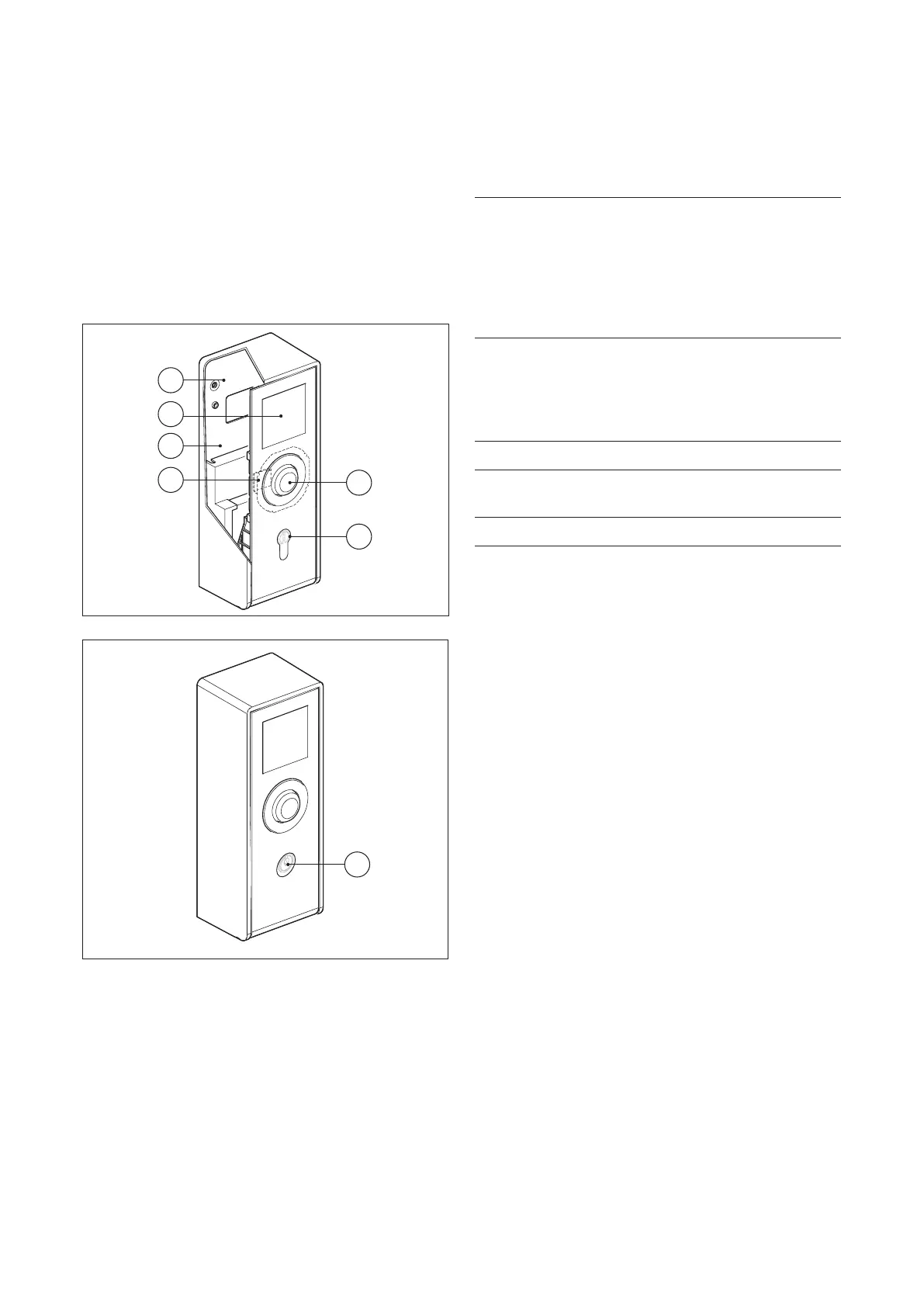

Fig. 1
4
3
1
2
5
6
STL-G door terminal with profile cylinder
Fig. 2
2
STL-G door terminal with round cylinder
1 Emergency button SCU-TL
2 Key switch ST for receiving a 30/10 lock cylinder
(version as profile or round cylinder; profile or
round cylinder is not part of the delivery)
3 Slot for optional SLI license card and SLI-A
application card
4 Installation space for optional distributor STL-G V
5 Installation space for optional flush-mounted
components UP with installation depth up to 62
mm (up to 35 mm installation depth when using
the SLON-UP module)
6 Installation space for optional SLON-UP module
3.1 Variants
The STL-G door terminal is available with profile or
round cylinder in versions with power supply (STL-G
NT) and without power supply (STL-G).
3.2 Technical data
Supply voltage version
without power supply
Power consumption
24VDC +/- 15% or
better
Quiescent current: 65
mA
in case of alarm: 100
mA
Supply voltage version with
power supply
Power consumption
Output voltage
Output current
230 V AC +/- 15%
max. 0.7 A
24VDC +/- 2%
max. 1 A
Ambient temperature: -10°C to +55°C
Rel. humidity: up to 93%
(non condensing)
Protection class: IP30
