INSTALL INSTRUCTIONS: POWER SEAT TRACK
924-073
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
2
©2012 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

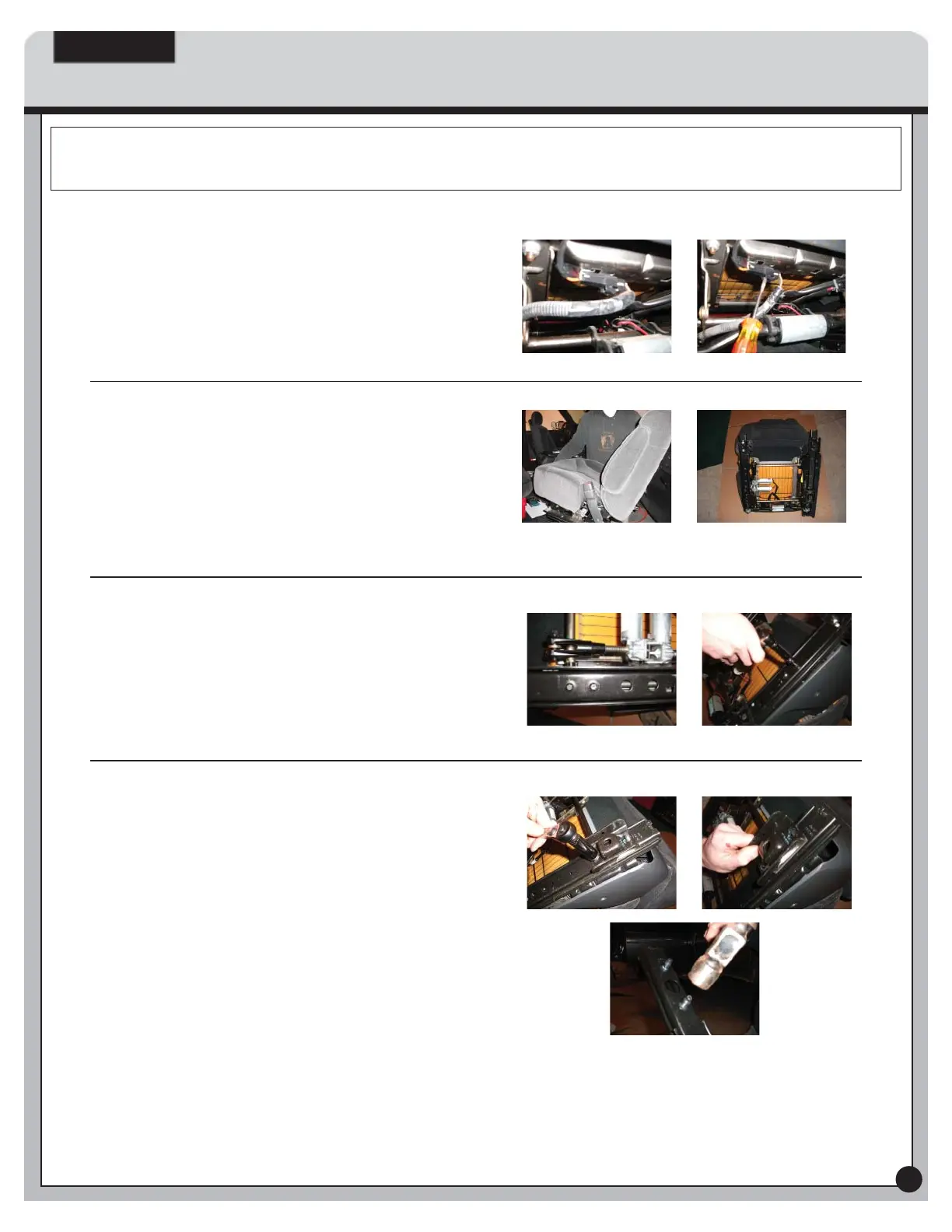

STEP 4: Unplug electrical connector underneath the
front of the seat by depressing lock tab and pulling
on vehicle end of harness and position harness
out of the way so the seat does not catch on it
upon removal. Note the factory routing so it can be
routed in the same position as before.
STEP 5: Remove seat by pulling straight upward
so that the rail mounting points will clear the front
studs and carefully remove from vehicle (have an
assistant if necessary and be careful not to scratch
the paint!). Designate a clean work area (large piece
of cardboard works) and position the seat as shown
to allow comfortable access to working on the track.
STEP 6: Using the ratchet and the 5/16” 12 point
socket, remove the two bolts holding the aluminum
block assembly to the outboard rail (the rail nearest
the outside of the vehicle) and position aside.
STEP 7: Using a ratchet and the15mm deep-well
12 point socket, remove the the two nuts as shown
above from the rail to oor mounting bracket
and remove bracket from rail noting position of
bracket. There is one regular hole and one oblong
hole, make a mark on both the rail and bracket if
necessary to ensure proper installation later. Now
using the ball peen hammer and supporting the
rail from the other side with your hand, carefully
drive out the rear stud to allow rail to slide back far
enough to access to the screw and block assembly
retaining bolt through large hole found between
the two studs.
