2200 Retro Fit Tails for 2100 Conveyors
Dorner Mfg. Corp.
8 851-461 Rev. A

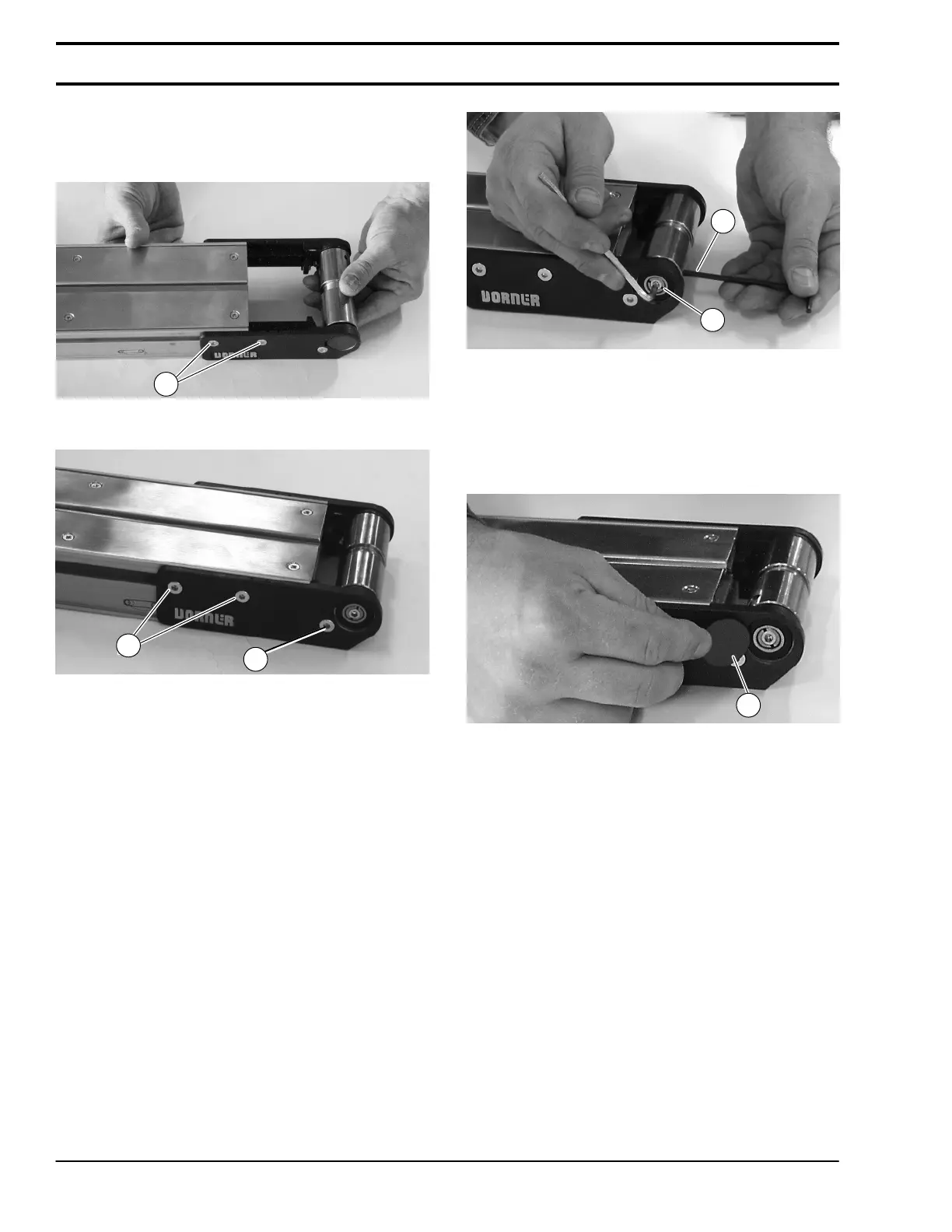

7. Install pulley assembly on conveyor. On both
sides of conveyor, hand tighten fastening screws
(AA of Figures 19 and 20).
Figure 19
AA
Figure 20
AA
W
8. On both sides of pulley, use a 4mm hex-key
wrench to tighten pulley taper screw (U of Figure
21) to 35 in-lbs (4 Nm). Steady pulley with second
hex-key wrench (AB) inserted into pulley hole (Z
of Figure 18).
Figure 21
U
AB
9. On head plate opposite of pulley hole (Z of Figure
18), install screw (W of Figure 20). Tighten to 60
in–lbs (7Nm).
10. Install bearing covers (V of Figure 22) into head
plate.
Figure 22
V
11. Install, tension and track conveyor belt, refer to
manual 851–452, “2200 Series End Drive Con-
veyors.”
Installation
