Dorner 32MVA4342 Series User Manual

Dorner Mfg. Corp. 4 851-953 Rev. A
Variable Speed VFD Controllers
Product Description

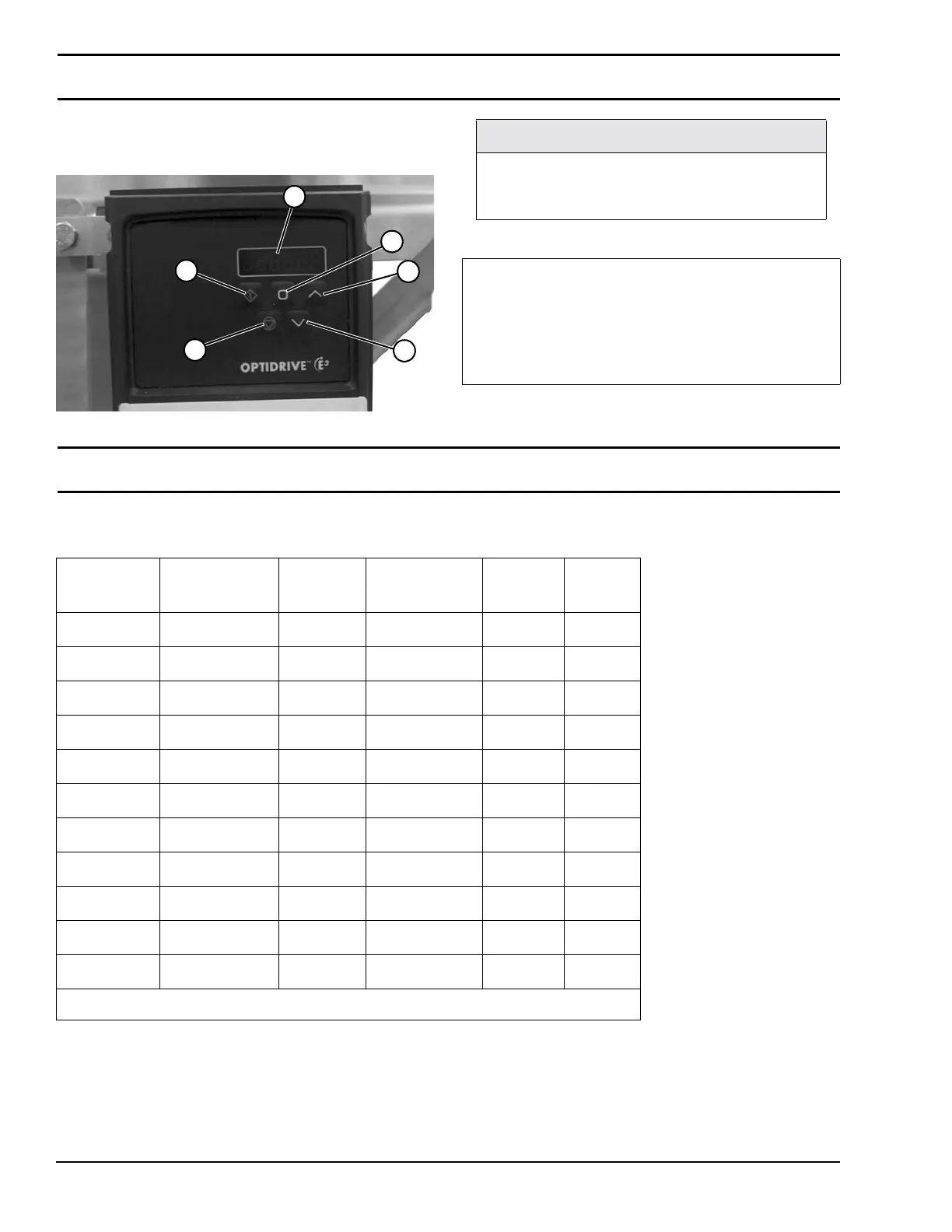

Dorner Variable Speed VFD Controllers (Figure 1) are AC
motor speed controllers for Standard and Heavy Load VFD
gearmotors.
Figure 1
Figure 1
Illustration References:
Specifications
Industrial Controllers
4
5
6
3
1
2
NOTE
For additional information, refer to the
Invertek Drives Quick Start Guide shipped
with your controller.
1 Decrease Speed Button
2 Increase Speed Button
3 Display
4 Start Button
5 Stop Button
6 Enter Button
Model
Number
Input Voltage
(VAC) & Phase
Input
Frequency
(Hz)
Output Voltage
(VAC) & Phase
Max. HP
(kW)
Max.
Output
in Amps
32MVA1122(X)
115 Volts,
Single Phase
60
230 Volts,
Three Phase
0.5 (0.37) 2.3
32MVA2122(X)
230 Volts,
Single Phase
60
230 Volts,
Three Phase
0.5 (0.37) 2.3
32MVA2322(X)
230 Volts,
Three Phase
60
230 Volts,
Three Phase
0.5 (0.37) 2.3
32MVA4342(X)
460 Volts,
Three Phase
60
460 Volts,
Three Phase
0.5 (0.37) 1.2
32MVA1121(X)
115 Volts,
Single Phase
60
230 Volts,
Three Phase
1.0 (0.75) 5.8
32MVA2121(X)
230 Volts,
Single Phase
60
230 Volts,
Three Phase
1.0 (0.75) 4.3
32MVA2321(X)
230 Volts,
Three Phase
60
230 Volts,
Three Phase
1.0 (0.75) 4.3
32MVA4341(X)
460 Volts,
Three Phase
60
460 Volts,
Three Phase
1.0 (0.75) 2.2
32MVA2127(X)
230 Volts,
Single Phase
60
230 Volts,
Three Phase
2.0 (1.50) 7
32MVA2327(X)
230 Volts,
Three Phase
60
230 Volts,
Three Phase
2.0 (1.50) 7
32MVA4347(X)
460 Volts,
Three Phase
60
230 Volts,
Three Phase
2.0 (1.50) 5.8
(X): Blank = No Accessory Port; E = M12 Accessory Port Wired for End Stop Photo Eye Application;
I = M12 Accessory Port Wired for Indexing Photo Eye Application

Dorner 32MVA4342 Series Specifications
