Dorner 32MVA4342 Series User Manual

Dorner Mfg. Corp. 10 851-953 Rev. A
Variable Speed VFD Controllers
Installation

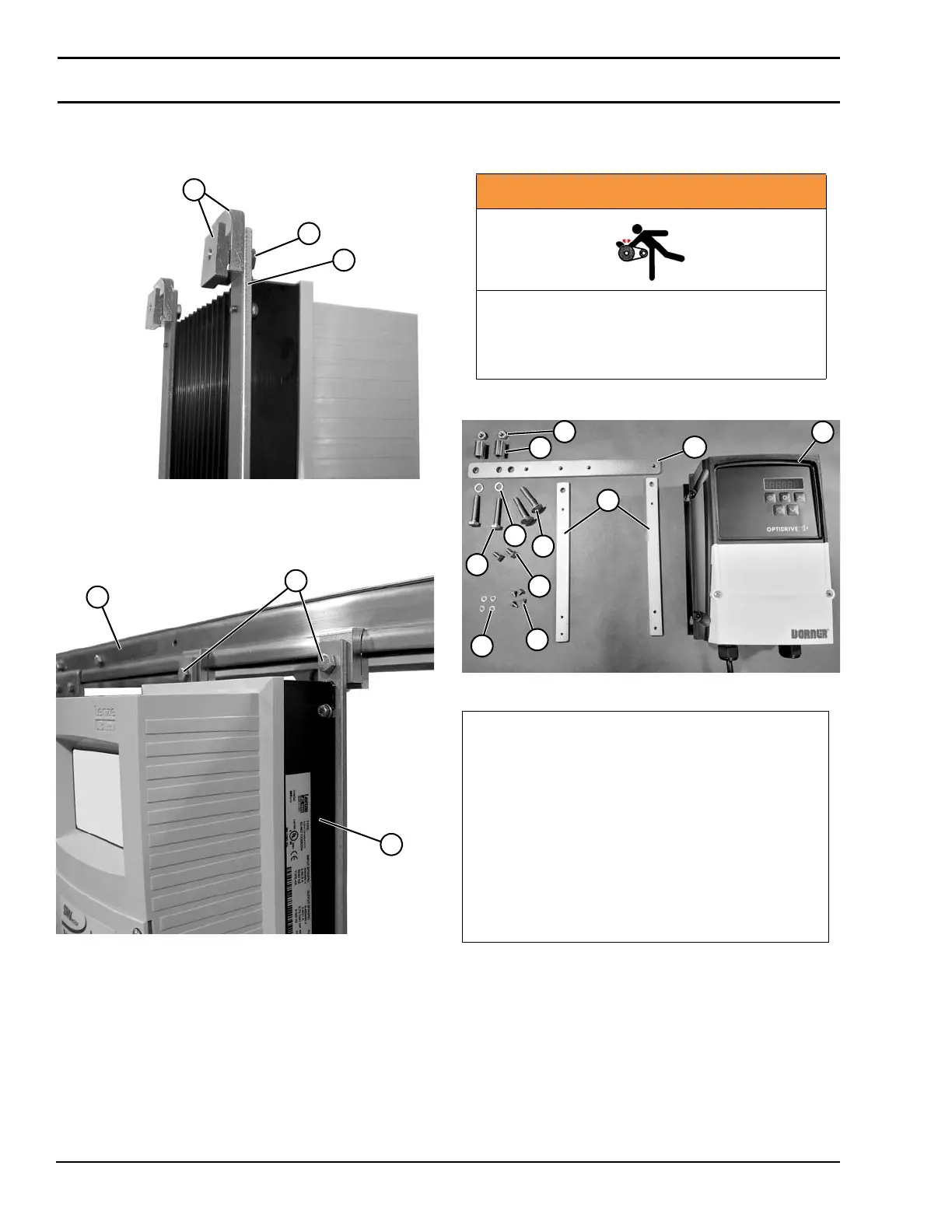

2. Loosely attach clips (Figure 16, item 1) to mounting
bar (Figure 16, item 2) with screws
(Figure
16, item 3).
Figure 16
Figure 16
3. Attach controller (Figure 17, item 1) to conveyor
(Figure 17, item 2) with screws (Figure 17, item 3).
Figure 17
Figure 17
AquaGard® Sanitary Controller
Mounting
Installation Component List (Figure 18):
Figure 18
Figure 18
3
1
2
2
1
3
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
1 Controller Mount Plate
2 Mounting Plate (2x)
3 VFD Controller
4 Hex Head Screws (4x)
5 Washers (4x)
6 Hex Head Screws (2x)
7 Hex Head Screws (2x)
8 Washers (2x)
9 Carriage Bolts (2x)
10 Standoffs (2x)
11 Hex Nut (2x)
4
5
6
1
3
2
7
11
10
8
9
