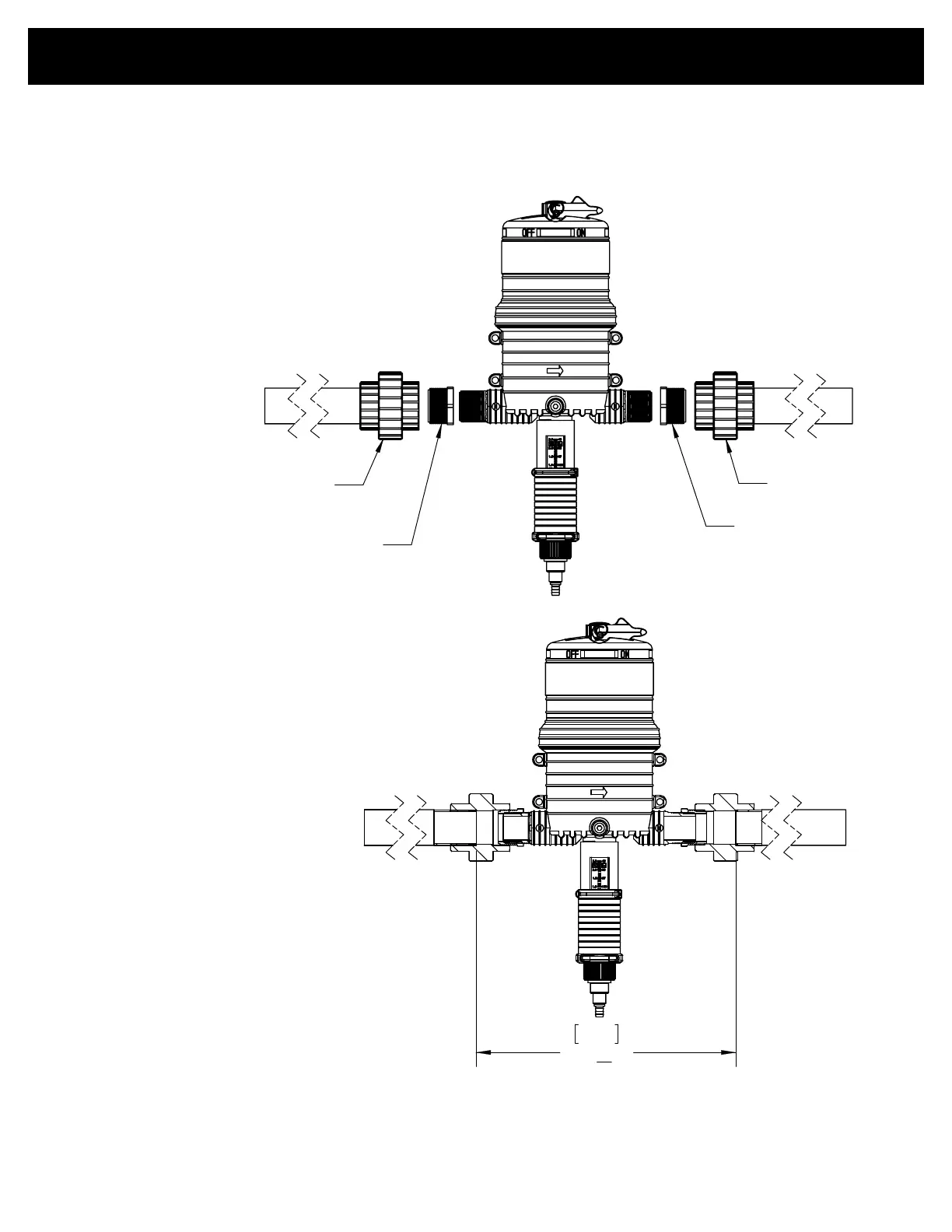

INSTALLATION DRAWINGS:
Fig 4
Dimension installation
is approx
13
7
8
"
352
1.5" Union
005195
005196
Reducer bushing
005195
1.5" Union
005196
Reducer bushing
Fig 3
at a standard plumbing
supplier
Connect SuperDos unit to 005196
reducer bushing
Connect Reducer bushing to 005195
1.5" union as shown in Fig 3
194900 is replaced by:
005195 (Spears pn 859-015)
005196 (Spears pn 839-212)
Kit to replace these parts is
available from Dosmatic
(pn 011769)
Or parts are available
SuperDos final installation
shown in Fig 4
7
