DOTECH FX3DH - Trip; Alarm Messages; Alarm Code and Description

- 3 -
R20160613
Code Menu Description / Instructions
Response at
Detection
Reset Type
5 Y 5
Internal Parameter Error In Case of change of set value by an unknown case. Immediate Stop Automatic Reset
H O P
Humidy Sensor Open In case of Input sensor open wire(Normal operation after sensor connecting)
Immediate Stop Automatic Reset
H S T
Humidy Sensor Short In case of Input sensor short circuit Immediate Stop Automatic Reset
H L L
Humidy Lower Input Lower sensor input than measuring range Immediate Stop Automatic Reset
H H H
Humidy Higher Input
Higher sensor input than measuring range
Immediate Stop Automatic Reset
T O P
Temp. Lower Low Limit Lower Low Limit Alarm than Low Limit Alarm Value Immediate Stop Automatic Reset
T S T
Temp. Higher High Limit Higher High Limit Alarm than High Limit Alarm Value Immediate Stop Automatic Reset
T L L
Temp. Lower Input
Lower sensor input than measuring range
Immediate Stop Automatic Reset
T H H
Temp. Higher Input Higher sensor input than measuring range Immediate Stop Automatic Reset
Trip / Alarm Messages
※
Reboot or push PRG button in 2 successive time when alarm output is removed.
FX3DH
OUT1
OUT2
%
reset

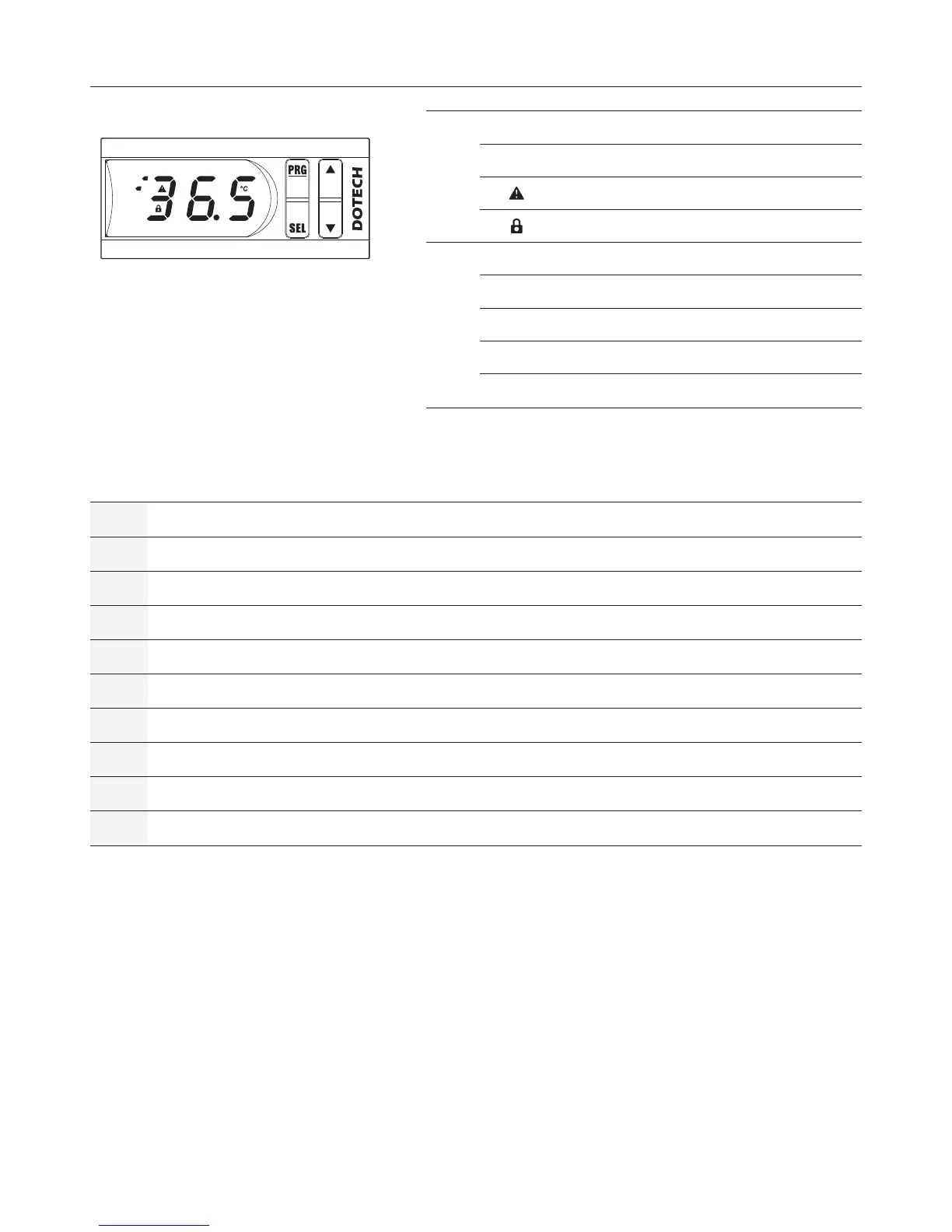

Constitution
(Function of Display Lamp and Button)
LED
OUT1 Turn on when output #1 is ON (Flickering at standby)
OUT2 Turn on when output #2 is ON (Flickering at standby)
ON at trip, Flickering at alarm
Parameter set up locked
BUTTON
PRG
Use at program setup
SEL
Execute selected menu or Input setup value
▲
Move between menus & Increase setup value
▼
Move between menus & Decrease setup value
PRG
+
▼
If pushing for 10 sec. at the same time ,
setup value is initialized
