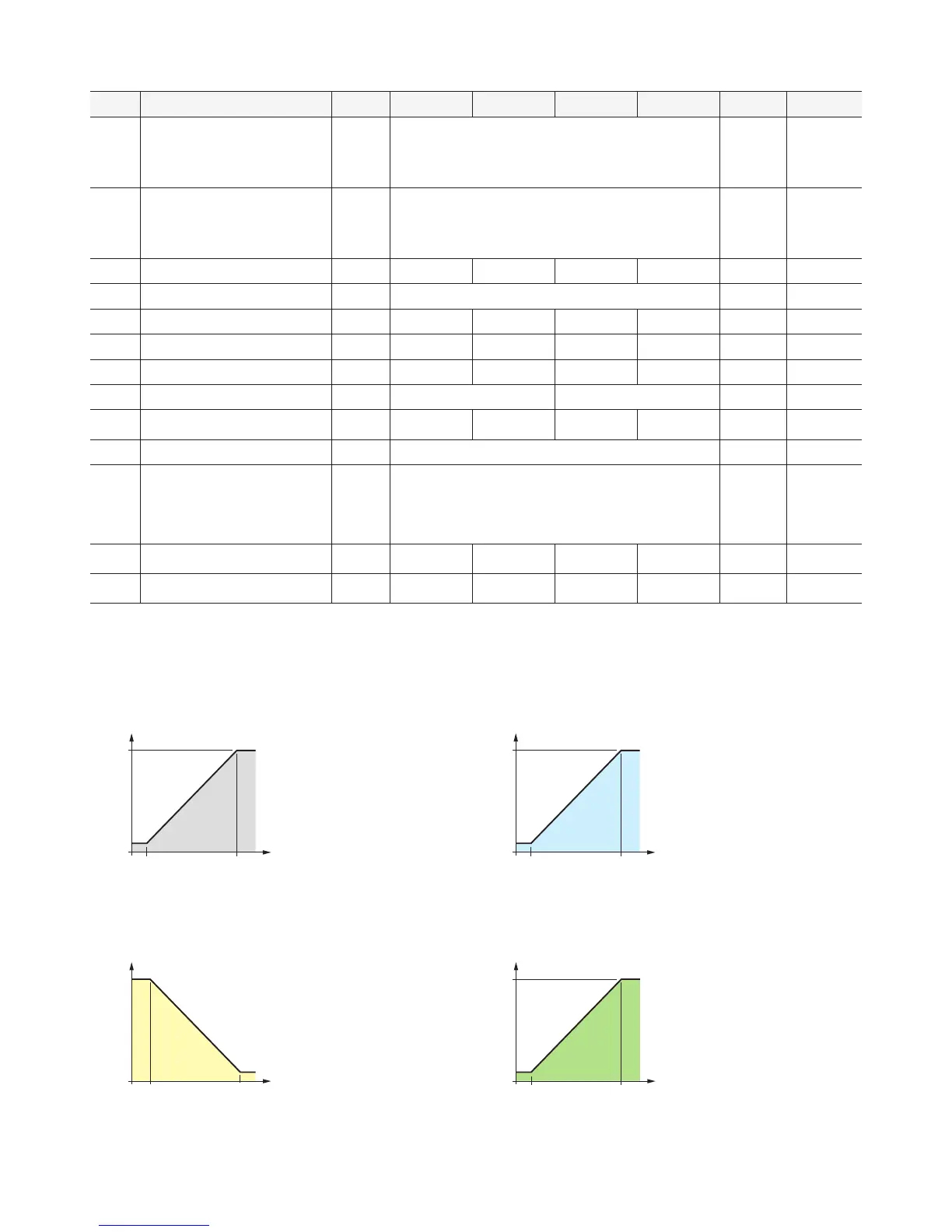

Setting 2 Group
(PRG Button Push for 5 Sec.)
No Menu Code Unit Step Min Max Default Custom Setup
4 0076 Lock Function
L O C
OFF
(0) : Lock cancel
LC
1 (1) : Setting 2 group lock
LC2
(2) : Setting 1,2 group lock
LC3
(3) : Setting 1, 2 group, Humidity & Temp. setup lock
OFF
(0)
4 0077 Sensor Type
I N
H
(0) : Use for humidity control only
T
(1) : Use for temp. control only
HT
(2) : Use for humidity and temperature control
HTD
(3) : Use for humidity control and temperature display
H
(0)
4 0080 Correction of temperature sensor (
※
1)
T C R
°C 0.1
-19.9 99.9 0.0
4 0081 Decimal Point(PV) Display (
※
2)
D P 0. 1
(0) : Decimal point display
1
(1) : Do not display decimals
0. 1
(0)
4 0082 Correction of PV
C O R
K 0.1
-19.9 19.9 0.0
4 0083 Sensor Input Filter (
※
3)
S F T
Sec 0.1
0.1 5.0 2.0
4 0084 Sensor Value Display Cycle
S D T
Sec 0.1
0 5.0 0.5
4 0085 Set Value(SV) Unication Mode
S T O OFF
: Individual SV mode
ON :
Unifying SV mode
OFF
(0)
4 0086 Communication Address
(-R4 model)
A D R
1 1
1 12 8 1
4 0087 Communication Speed
(-R4 model)
B D R 48
: 4800BPS
96
: 9600BPS
19 2
: 19200BPS
384
: 38400BPS
96
4 0088
Analogue Trans. Output
(4~20mA) Mode
(-A1 model)
A O M
PV
(0) : PV Trans.
DIR
(1) : Humidication(Heating) proportional Control
ReV
(2) : Dehumidication(Cooling) proportional Control
ST 1
(3) : SV1(Set value) Trans.
ST2
(4) : SV2(Set value) Trans.
PV
4 0089
Analogue Trans. Output (20mA)
(-A1 model)
R T H
- `
-199 999 10 0
4 0090
Analogue Trans. Output (4mA)
(-A1 model)
R T L
1
-199 999 0
※1) Correction of temperature sensor : It is displayed when sensor input mode(
IN
) set
to Temp. & Humidity control mode or humidity control and temp. display mode.
※2) PV Decimal Point Display : In case of setting as ‘1’, it displays the current value with cutting the decimal place.
※3) Sensor Input Filter Value : It avoids hunting by giving temperature measuring delay.
20mA
4mA
RTL RTH
Output
PV
Current value (PV) trans. output
RTL
RTH
Input PV at 4mA output.
Input PV at 20mA output.
set AOM to PV (Current value)
20mA
4mA
ST1 ST1+DF1
Output
PV
Dehumidication(Cooling)
proportional Control
ST1
DF1
Input SV at 4mA output.
Input DF at 20mA output.
set AOM to ReV (Dehumidication
(Cooling) proportional Control)
20mA
4mA
ST1-DF1 ST1
Output
PV
Humidication(Heating)
proportional Control
ST1
DF1
Input SV at 4mA output.
Input DF at 20mA output.
set AOM to DIR (Humidication
(Heating) proportional Control)
20mA
4mA
RTL RTH
Output
St1~2
(SV)
Set value(St) trans. output
RTL
RTH
Input SV at 4mA output.
Input SV at 20mA output.
set AOM to ST1-2 (set value)
