Dover Advanced Series User Manual

WILDEN PUMP & ENGINEERING, LLC 4 WIL-12350-E-02
Section 4

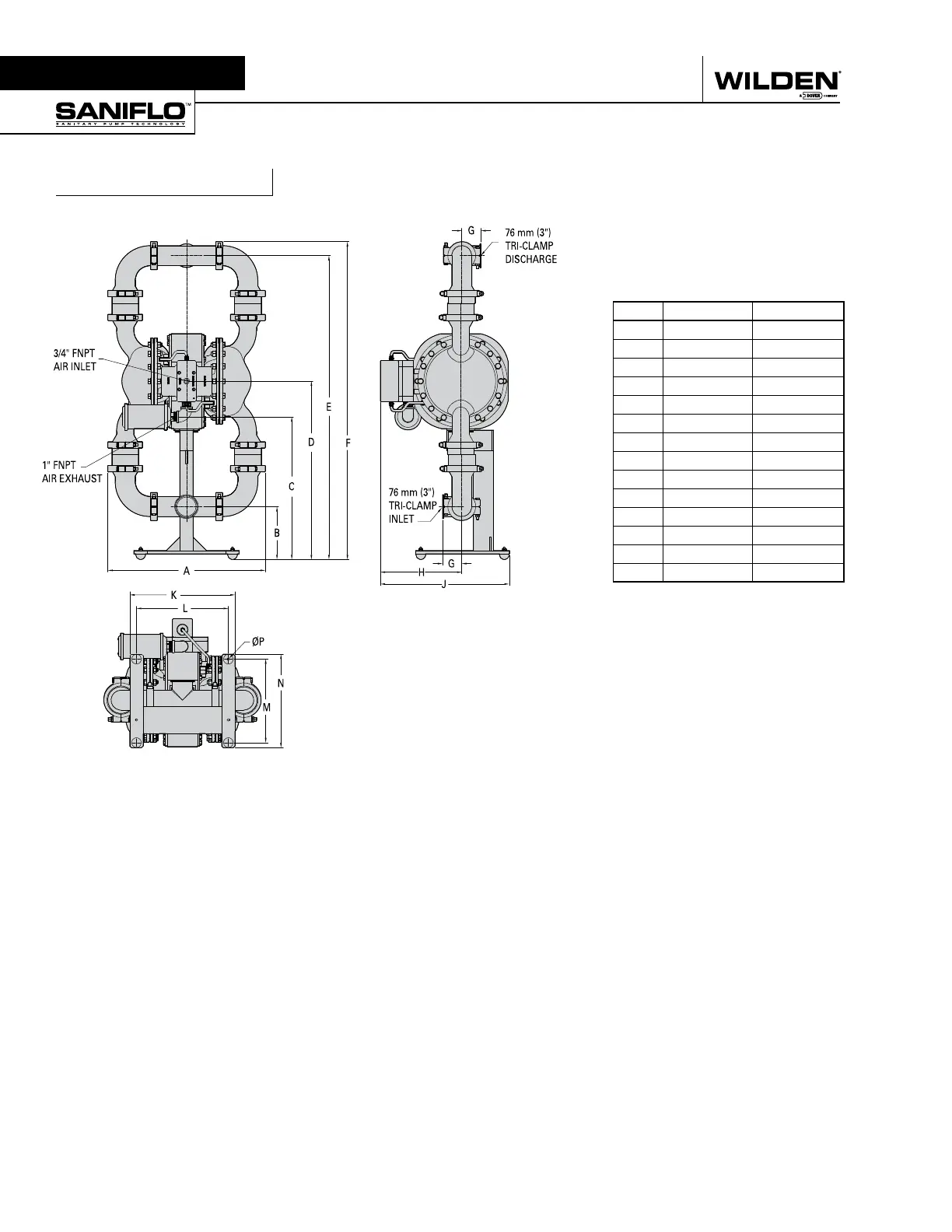

DIMENSIONAL DRAWING
H1500 SANIFLO
TM
HS
DIMENSIONS
H1500 Sanio
TM
HS Vertically-Mounted Center-
Ported with Ball/Mushroom Valve
ITEM METRIC (mm) STANDARD (inch)
A 599 23.6
B 201 7.9
C 543 21.4
D 678 26.7
E 1156 45.5
F 1209 47.6
G 74 2.9
H 310 12.2
J 490 19.3
K 401 15.8
L 351 13.8
M 318 12.5
N 356 14.0
P 10 .4
LW0115 Rev. A
