US05 US06
Assembly ②
4
Installation of Footrest
・Turn over the footrest, remove the screws installed in advance, install the footrest steel pipe, and screw
the screws back in place.
・First remove the pre-installed steel pipe screws and insert the footrest into the guide rail by referring to the
picture.
※ The guide rail is pre-installed at the bottom of the cushion
※ If the movement is not smooth, loosen the screw on the guide rail and adjust its angle. After confirming
that the movement is smooth, tighten the screws on the guide rail and then screw back the steel pipe
screws.
※ Please note that there is discrimination between the front and back of the footrest.
J
J
5
Installation of Cushion
・Assemble the upper and lower parts of the
chair as shown.
※ If lack of energy, or install it by yourself, please
place the upper side of the chair on the ground,
insert the gas cylinder into the tilt mechanism,
and pick up the chair.
6
Installation of Backrest
・As shown in the picture, first remove the pre-installed steel pipe screws, install the T-shaped
metal rod on the backrest and tighten the three screws.
・Then insert the lower end of the backrest rod into the socket of the tilt mechanism and tighten
the nut of the tilt mechanism.
K
I
H
※The back support steel
plate has an inclined design,
please note that the steel
plate is inclined outward
when installing.

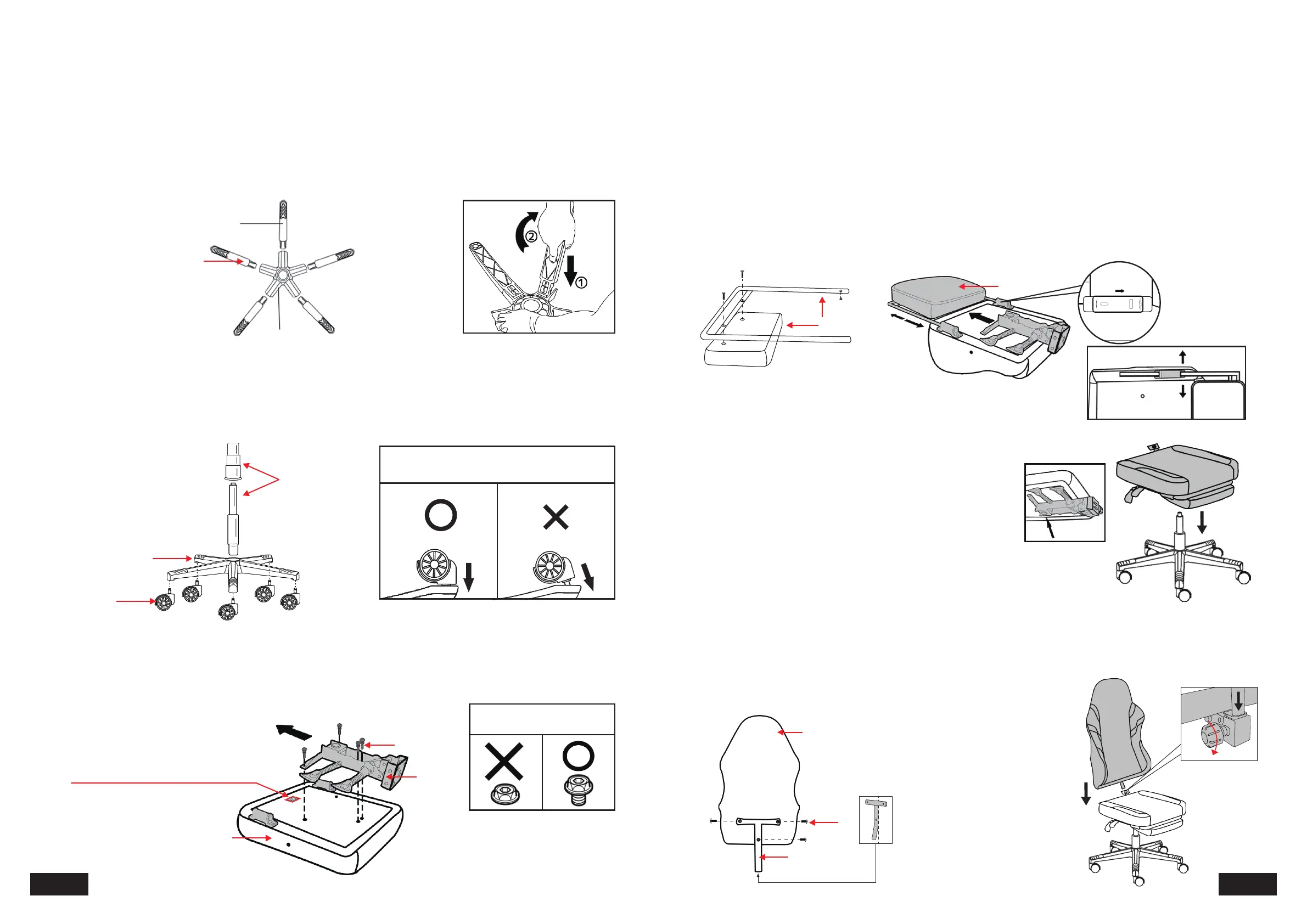

Assembly ①
Base-2
Base-1
C
1
Installation of Base
・Insert the Base-2 to Base-1 as shown.
※ Base-1: part like a pentagram, Base -2: slender rod
※ First, loosely insert the Base-2 into the correct position. Please do not fully insert the Base-2 yet
to avoid pinching your fingers. Then press the base -1 from above and securely install the base -2.
If the wheel is difficult to insert, it is easy to penetrate
from above by slow application of force.
2
Installation of Casters, Gas Cylinder and Cover
・Turn the base over and insert the casters firmly.
・Insert the gas cylinder and cover into the base as shown.
※ To prevent the wheels from coming off, it is a bit difficult to insert.
※ The cylinder coated with lubricating oil. Be careful not to get your hands, clothed, or floor dirty.
A
E
C
3
Install the tilt mechanism
・Place the seat on a stable place such as a table, remove the pre-installed screws, attach the tilt
mechanism, and then tighten the screws.
※The screws are already pre-installed so that they will not be lost during transportation.
Temporarily tighten
all screws to 80%
⚠
P
②
D
※Anti-Counterfeiting NFC
FRONT
