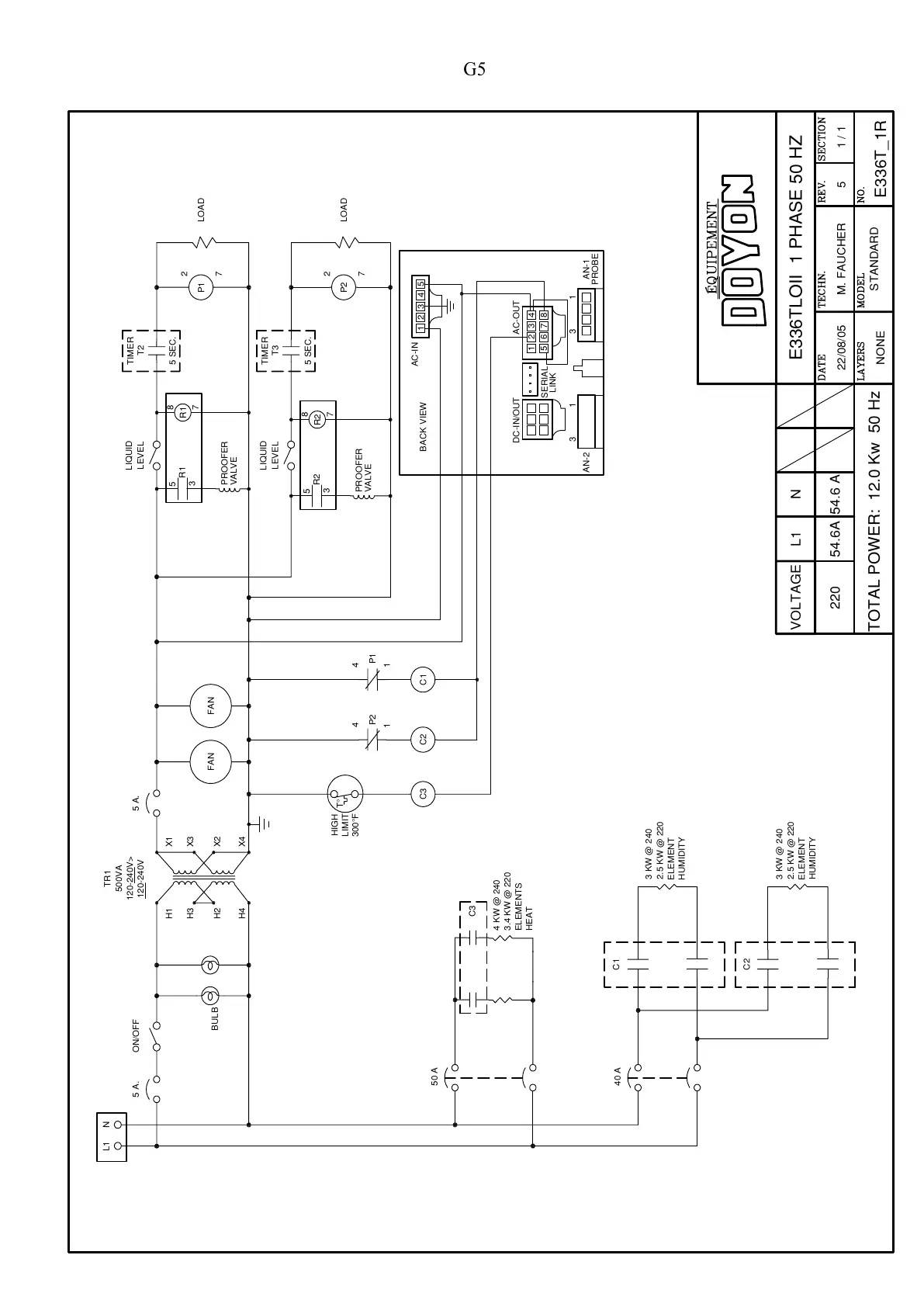

Doyon DRIP1TLO - Page 44

G5
2 7
BULB
FAN
LEVEL
LIQUID
P1
L1
ON/OFF
N
P2
LIQUID
LEVEL
7 2
FAN
3.4 KW @ 220
ELEMENTS
ELEMENT
2.5 KW @ 220
C1
40 A
C2
P1
C3
50 A
5 A.
5 SEC.
TIMER
T2
5 SEC.
TIMER
T3
LOAD LOAD
300°F
LIMIT
HIGH
T°
C3
C2
AC−IN
AN−1
13
31
AN−2
DC−IN/OUT AC−OUT
SERIAL
LINK
BACK VIEW
12
3
4
5
7
68
PROBE
12345
HEAT
HUMIDITY
C1
4
1
P2
4
1
3 KW @ 240
ELEMENT
2.5 KW @ 220
HUMIDITY
3 KW @ 240
4 KW @ 240
TR1
120−240V
500VA
120−240V>
X3H3
H4 X4
X2 X1
H2 H1
5 A.
PROOFER
VALVE
R1
8
7
R1
5
3
PROOFER VALVE
R2
8
7
R2
5
3
VOLTAGE L1 N
220 54.6A 54.6 A
E336TLOII 1 PHASE 50 HZ
22/08/05 M. FAUCHER 5
NONE
STANDARD
E336T_1R
1 / 1
TOTAL POWER: 12.0 Kw 50 Hz
